46 Automower from
3. Installation
™

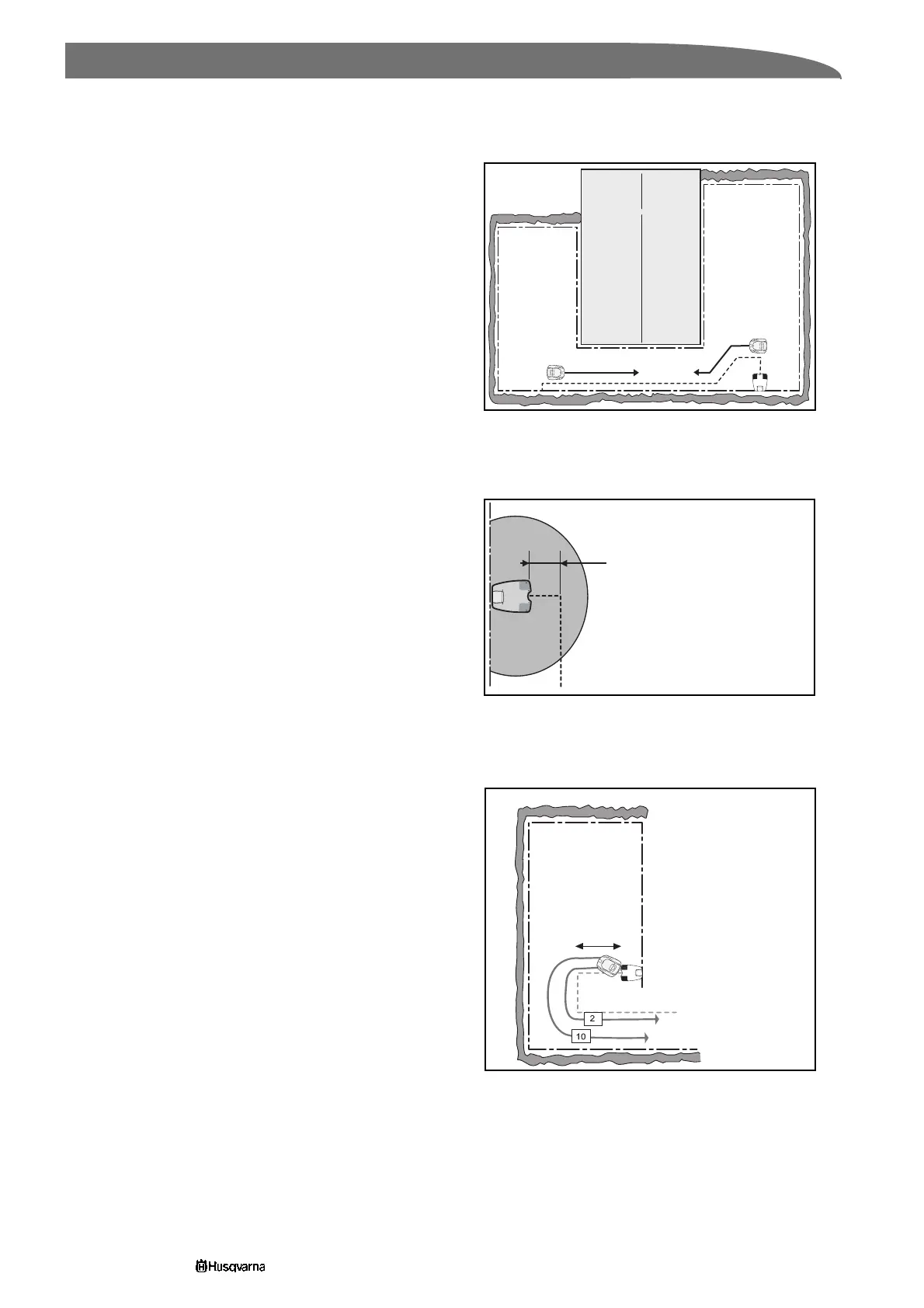

If you shall install the guide wire through a passage:
• Automower follows the guide wire on the same
side of the wire both to and from the charging
station. This means that in towards the charging
station the guide wire is on the right side of the
mower and away from the charging station the
guide wire is on the left side of the mower.
In the passage, the guide wire must be placed so
that the mower has as much space to run as
possible. The distance between the boundary
wire and the guide wire must however be at least
30
cm (see the picture above).
The same minimum measurement (30 cm) also
applies to the distance between the guide wire
and the guide wire in the passage, if you intend
to lay the guide wire backwards and forwards
through the passage.
The guide wire should be connected to the charging
station. If it is placed square in the working area then
the measurements in the figure opposite must be
observed.
• Depending on whether the guide wire is to be used
on both functions Follow loop in and Follow loop
out and whether the guide wire is routed to the left
or to the right, the guide wire must be routed at
different distances from the front edge of the
charging plate. The direction right or left applies
from the charging station seen in the mower's
direction of entry.
If the guide wire is to be used for the Follow loop out
function:
• If the guide wire runs on the right, seen in the
mower's direction of entry, the guide wire must
be routed at least 130 cm straight out from the
front edge of the charging plate. In this instance,
Automower will find the right loop signal strength
without problem and follow the guide wire.
3012-649
X
3012-608
Follow loop out
x = at least 130 cm (if the guide
wire is routed on the right)
x = at least 200 cm (if the guide
wire is routed on the left)
Follow loop in
x = at least 70 cm
3012-711
130 cm
