98
Automower from
4. Autocheck, Service program
™

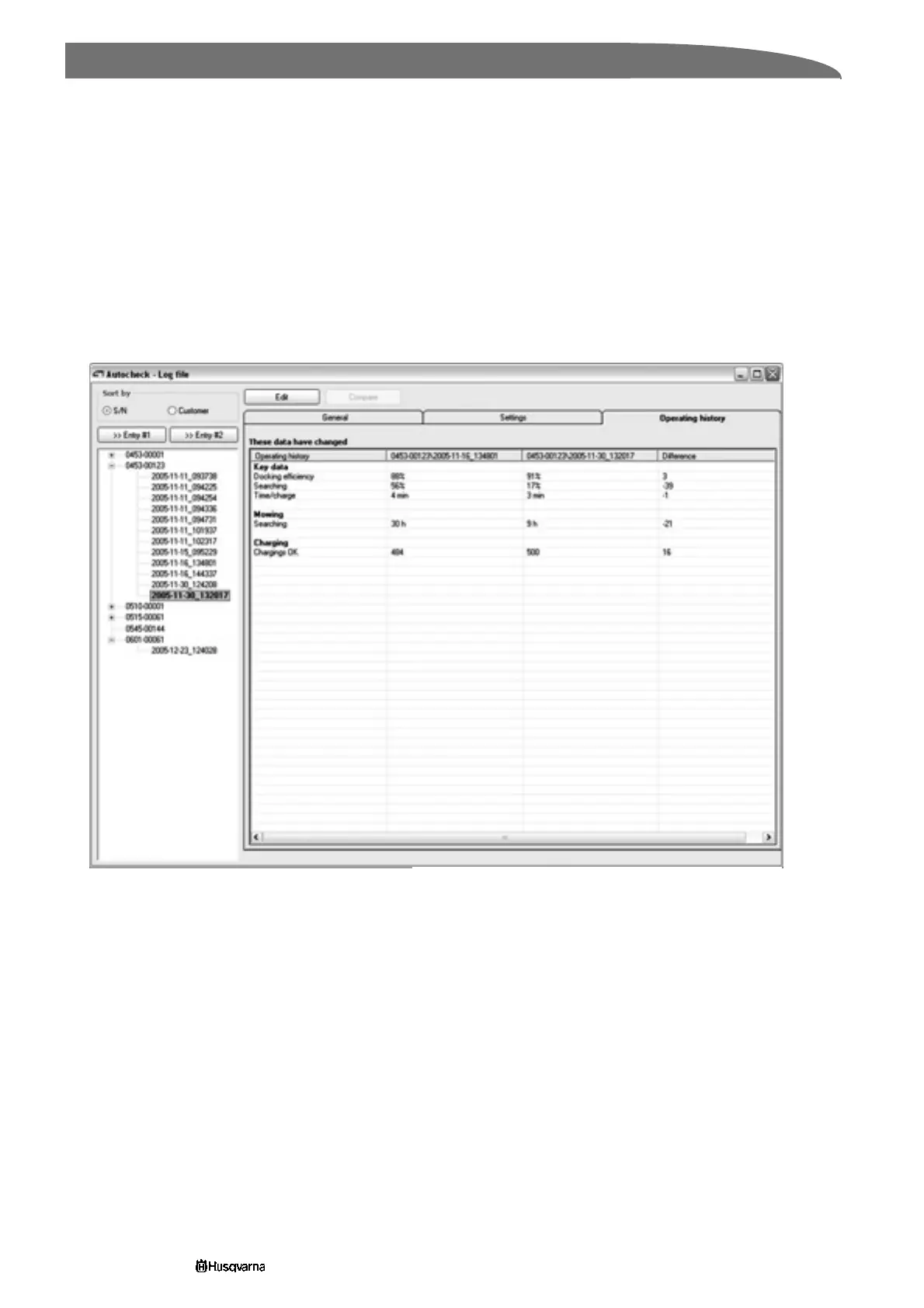

Compare log file
In the
Compare
function you can compare two entries
to see the differences.
Select from the list of sa
ved mowers and select the
entries you wish to compare. Now click on
>Entry #1
.
Now select the entry you wish to compare and click on
>Entry #2
.
You select the information you wish to compare by
clicking on the tabs
General, Settings
or
Operating
history.
3012-741
97
99
