ENGINE DISASSEMBLY

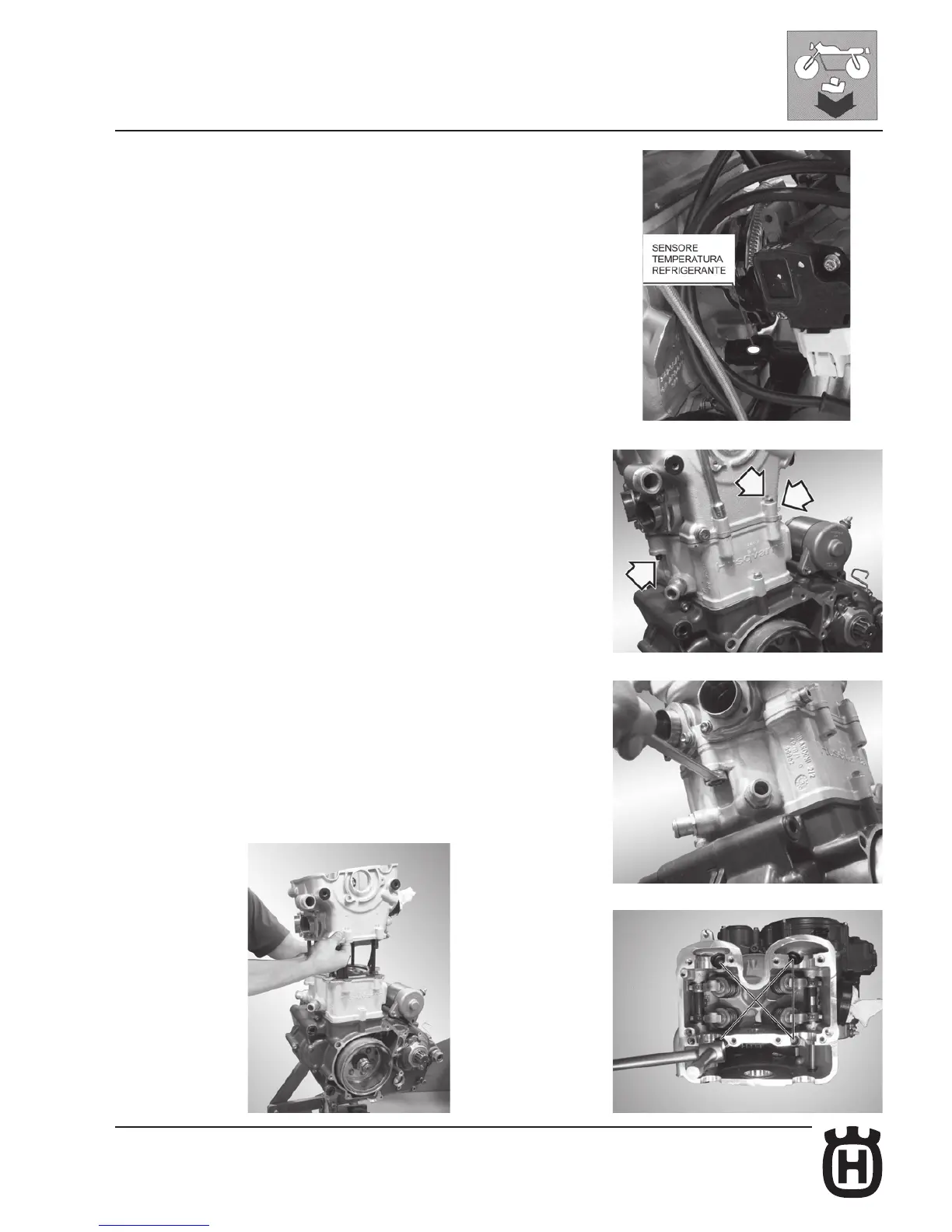

Cylinder head disassembly
TE-SMR: remove the coolant fluid temperature sensor with its O-ring.
Remove the two screws on the L.H.S (8 mm wrench) then the front nut under the
cylinder head (13 mm wrench).
Remove the four inner screws on the cylinder head (10 mm wrench) whilst
following a cross-over pattern.
Remove the cylinder head and relative gasket.

Husqvarna TE 510 Specifications

General

Transmission	6-speed
Front tire	90/90-21
Rear tire	140/80-18
Dry weight	112 kg
Final Drive	Chain
Front suspension (adjustable)	Yes
Rear suspension (adjustable)	Yes
Front brake disc size	260 mm
Rear brake disc size	220 mm
Engine type	Single cylinder, 4-stroke
Fuel system	Keihin FCR-MX 41
Ignition	Electronic
Cooling system	Liquid cooled
Front suspension	Kayaba 48 mm fork
Front brakes	Single disc
Rear brakes	Single disc
