Husqvarna TE 510 User Manual

SETTINGS AND ADJUSTMENTS
Part. N. 8000 B0148 (02-2008) D.21
A
4
2
3

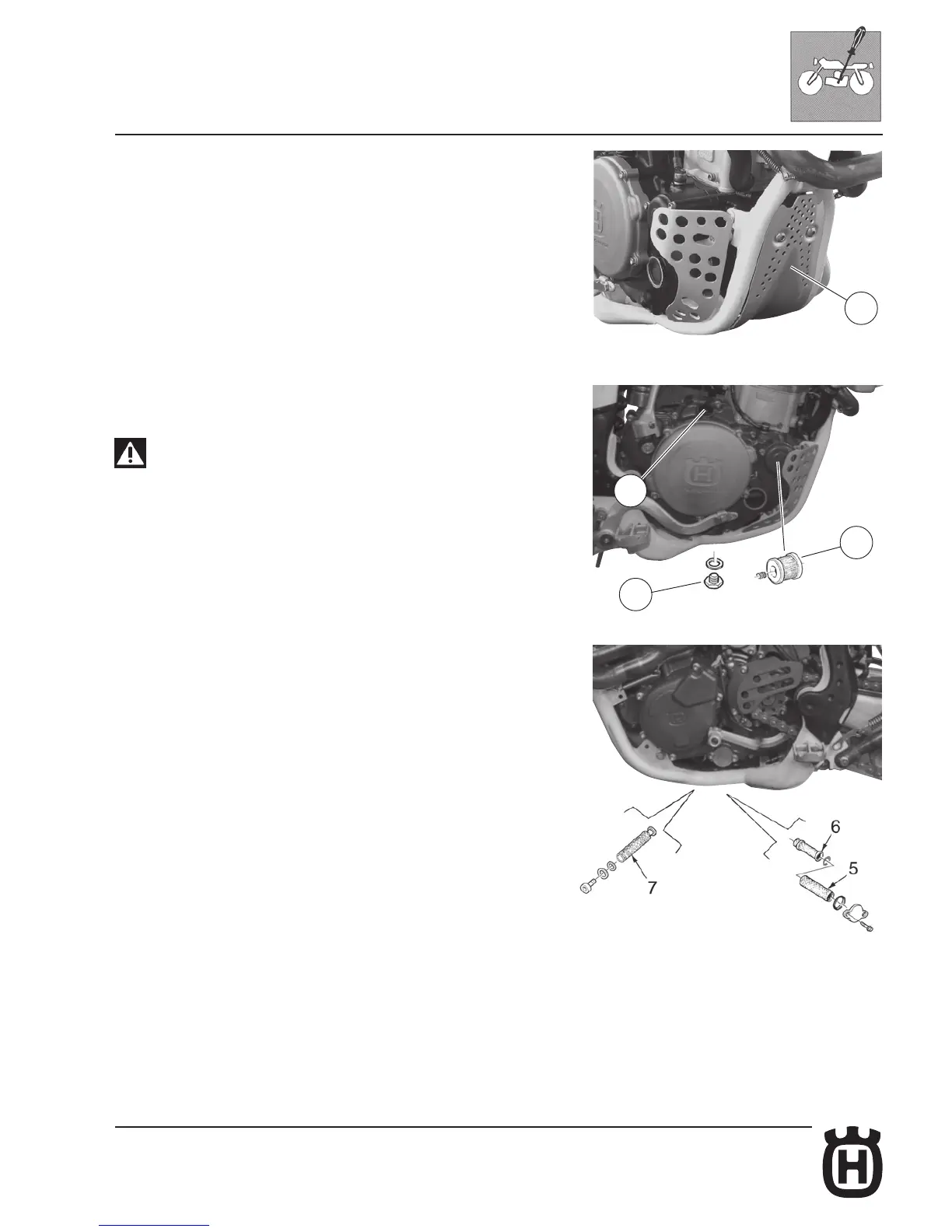

Engine oil replacement and bag filters-cartridge filter cleaning or replace-
ment
Drain the oil with WARM ENGINE; proceed as follows:
- remove oil filler cap (2);
- even if not necessary, remove the engine guard (A);
- place an oil drain pan under the engine block;
- remove the oil drain cap (3), drain the used oil completely then clean the mag-
net on the cap;
- remove the three filters (5), (6) and (7) on the L.H. side of the engine, check O-
Rings for wear then clean filters with fuel.
Reassemble using the reverse procedure.
In order to replace the filter cartridge (4), unscrew the three fastening screws
then the filter cartridge cover;
- after filters replacement, reassemble the drain cap (3), the engine guard (A)
then pour the recommended oil quantity.
Reassemble, on engine L.H. side, filter (5-4) (8 Nm-0,8 Kgm-5.8 ft/lb) e (6) (25
Nm-2,55 Kgm-18.4 ft/lb) ed inferiormente il tappo (2) scarico olio (25 Nm-2,55
Kgm-18.4 ft/lb).
Be careful not to touch hot engine oil.

Husqvarna TE 510 Specifications

General

Transmission	6-speed
Front tire	90/90-21
Rear tire	140/80-18
Dry weight	112 kg
Final Drive	Chain
Front suspension (adjustable)	Yes
Rear suspension (adjustable)	Yes
Front brake disc size	260 mm
Rear brake disc size	220 mm
Engine type	Single cylinder, 4-stroke
Fuel system	Keihin FCR-MX 41
Ignition	Electronic
Cooling system	Liquid cooled
Front suspension	Kayaba 48 mm fork
Front brakes	Single disc
Rear brakes	Single disc
