E.4 Part. N. 8000 B0148 (02-2008)
GENERAL OPERATIONS
Removal of engine from motorcycle

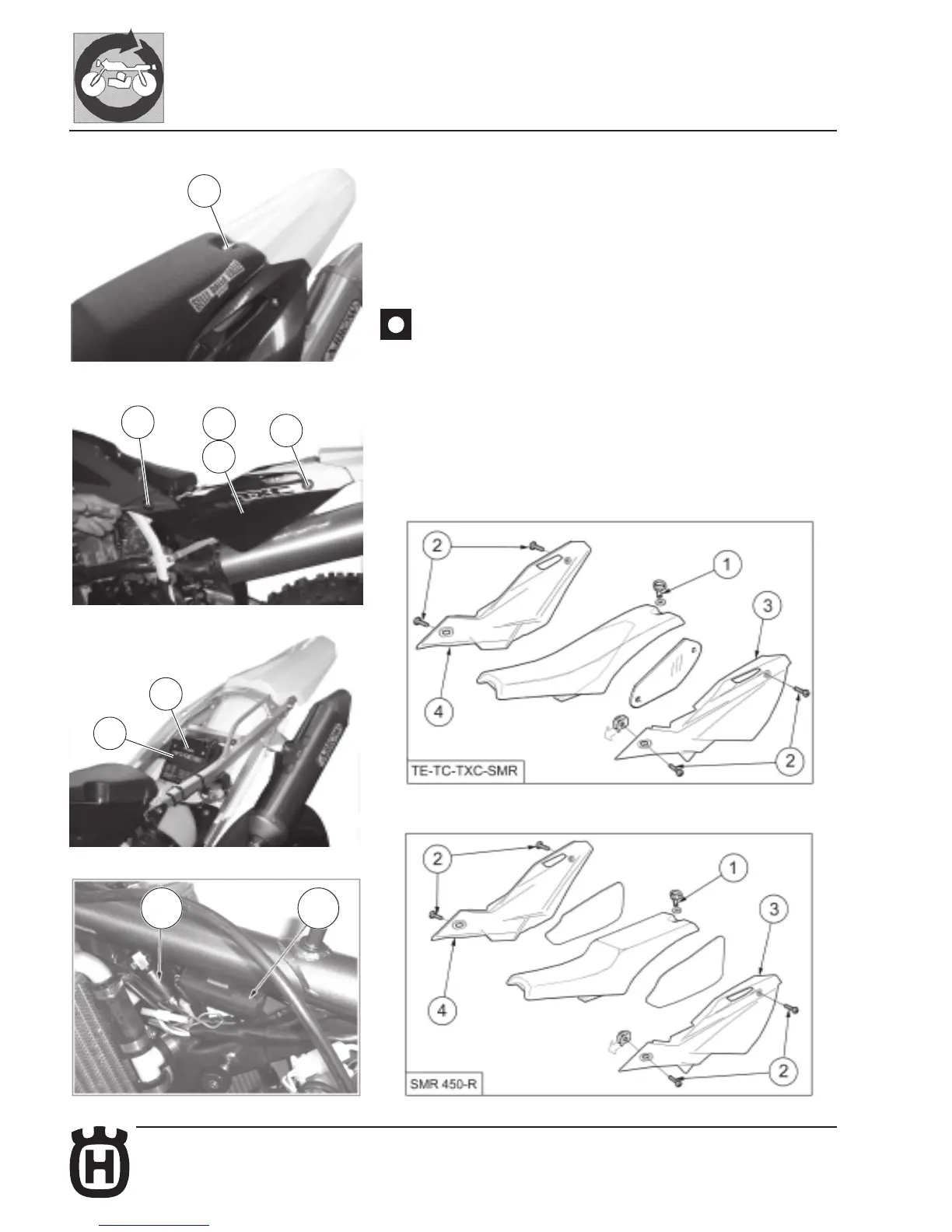

1) Pages E.4-E.5: turn counterclockwise the rear fastening pin (1) and remove
the saddle. Loosen the screws (2) and remove the side panels (3) and (4).
TE-SMR-TXC: first remove the BLACK negative cable, then the RED positive
cable (when reassembling, first connect the RED positive cable, then the BLACK
negative cable); release the elastic (5) and remove the battery (6) from its hous-
ing.
TXC: After battery removal, push ONCE THE ENGINE START BUTTON in or-
der to discharge the condenser (7) fastened near the H.T. coil (8).
: After battery disassembly, DO NOT remove the condenser from the
frame: in case of engine starting in this condition, the voltage
regulator will be damaged.
8 7
1
2
2
3
4
6
5
