REAR SUSPENSION

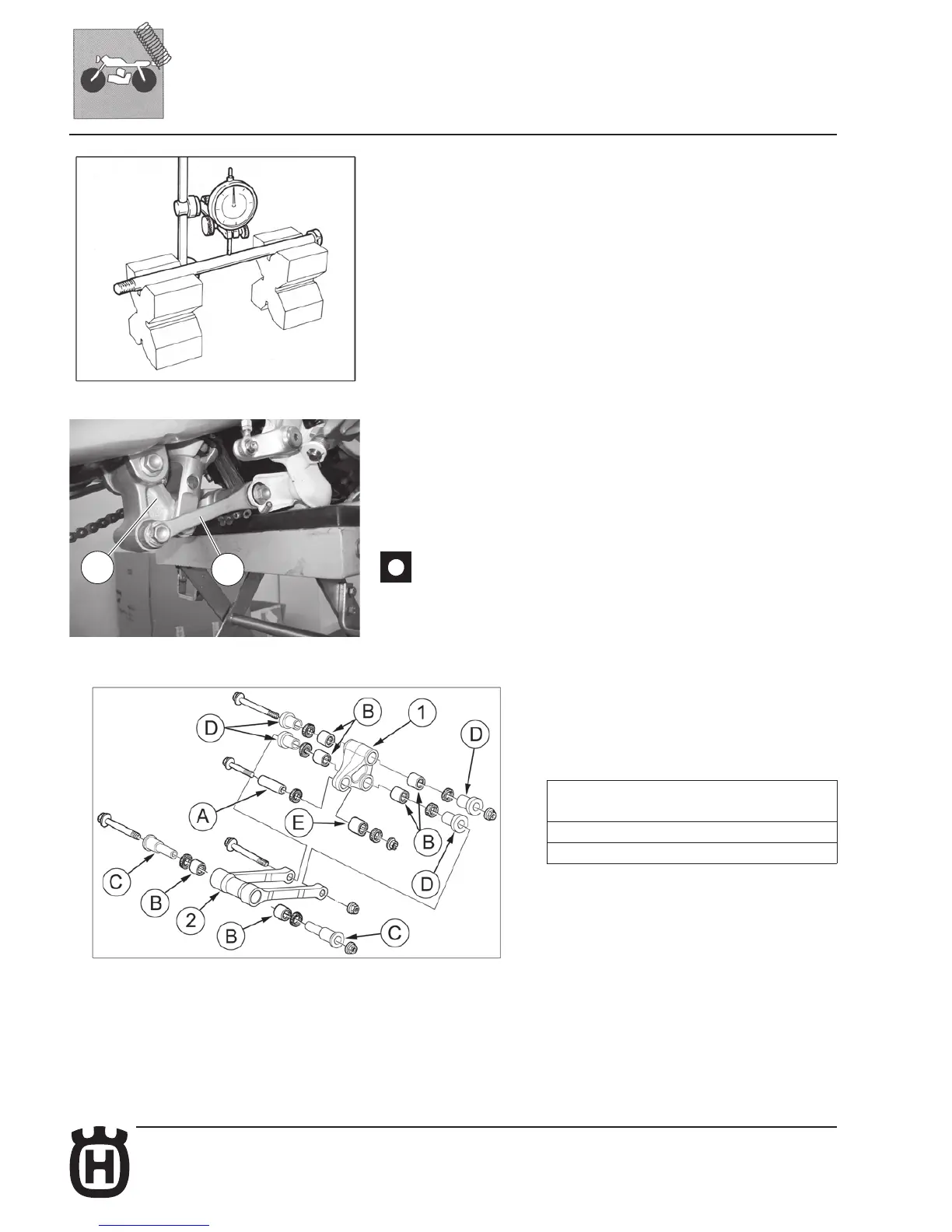

Overhauling the rear swing arm axle
Using a comparator, check the swing arm axle for distortion.
Position the axle on two identical contacts. Rotating the axle and moving it
horizontally and take the distortion reading with the instrument.
Distortion limit: 0,30 mm/ 0.012 in.
Overhauling the rocking lever and the rear suspension tie rod
With the rocking lever (1) and the tie rod (2) still mounted on the rear swing arm
and on the frame respectively, manually check their radial and axial play, pulling
these parts in any direction. The rocking lever and tie rod have been designed with
a certain amount of axial play in order to allow the shock absorber to always find
the ideal operating position. If however there is any axial play, it will be necessary
to remove the component from the the swing arm or frame and carry out a check
on the internal spacer (A) and (E), bushings (C), (D) and bearings (B).
Apply some grease inside the bearings before assembly.
TIGHTENING TORQUES
3: 52,4 Nm/ 5,35 Kgm/ 38.6 ft-lb
4, 5, 6: 80 Nm/ 8,2 Kgm/ 59 ft-lb
1
2

Husqvarna TE 510 Specifications

General

Transmission	6-speed
Front tire	90/90-21
Rear tire	140/80-18
Dry weight	112 kg
Final Drive	Chain
Front suspension (adjustable)	Yes
Rear suspension (adjustable)	Yes
Front brake disc size	260 mm
Rear brake disc size	220 mm
Engine type	Single cylinder, 4-stroke
Fuel system	Keihin FCR-MX 41
Ignition	Electronic
Cooling system	Liquid cooled
Front suspension	Kayaba 48 mm fork
Front brakes	Single disc
Rear brakes	Single disc
