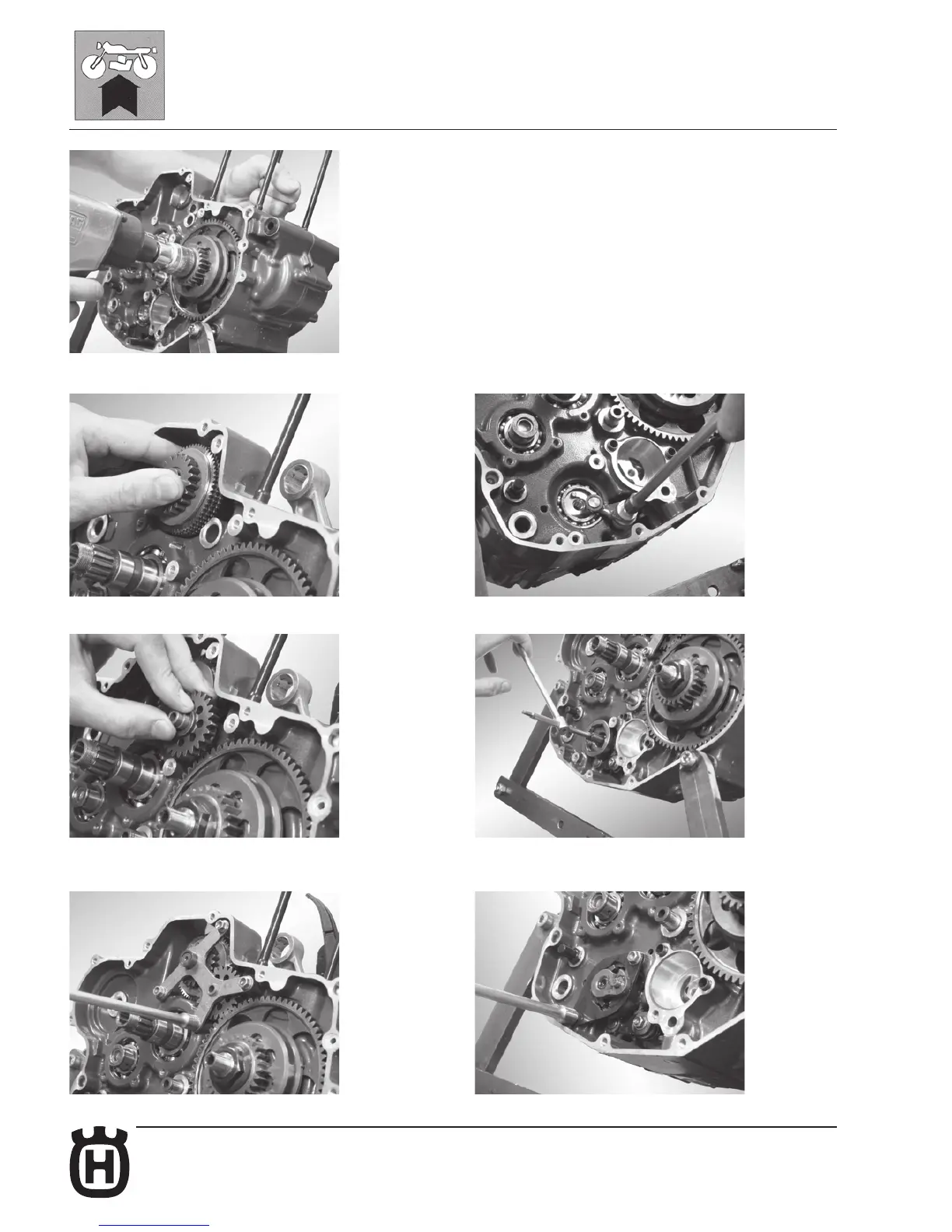

ENGINE REASSEMBLY
Reassembly of gearshift mechanism, electric starting system and oil pump
Assembly of the gearshift mechanism should be done in reverse order to disassembly.
Tighten the driving gear on the crankshaft to the required torque (180 Nm-18 Kgm-
130 ft/lb + LOCTITE 243).
Mount the starting driven gear.
NOTE: reassemble the free wheel in accordance with the mark previously done,
during disassembly.
Check the gears teeth for wear and failure. If worn or breaked, replace it.
Mout the second starting driven gear.
Mount the retaining plate (8 Nm-0,8 Kgm-5.8 ft/lb + LOCTITE 243).
Tighten the gear selector fixing pin (20 Nm-2 Kgm-14.5 ft/lb + LOCTITE 243), mount
the gear fixing click and the relative spring. Mount the sprocket and fix the plate (8
Nm-0,8 Kgm-5.8 ft/lb + LOCTITE 243).

Husqvarna TE 510 Specifications

General

Transmission	6-speed
Front tire	90/90-21
Rear tire	140/80-18
Dry weight	112 kg
Final Drive	Chain
Front suspension (adjustable)	Yes
Rear suspension (adjustable)	Yes
Front brake disc size	260 mm
Rear brake disc size	220 mm
Engine type	Single cylinder, 4-stroke
Fuel system	Keihin FCR-MX 41
Ignition	Electronic
Cooling system	Liquid cooled
Front suspension	Kayaba 48 mm fork
Front brakes	Single disc
Rear brakes	Single disc
