Husqvarna TE 510 User Manual

I.15
Part. N. 8000 B0148 (02-2008)

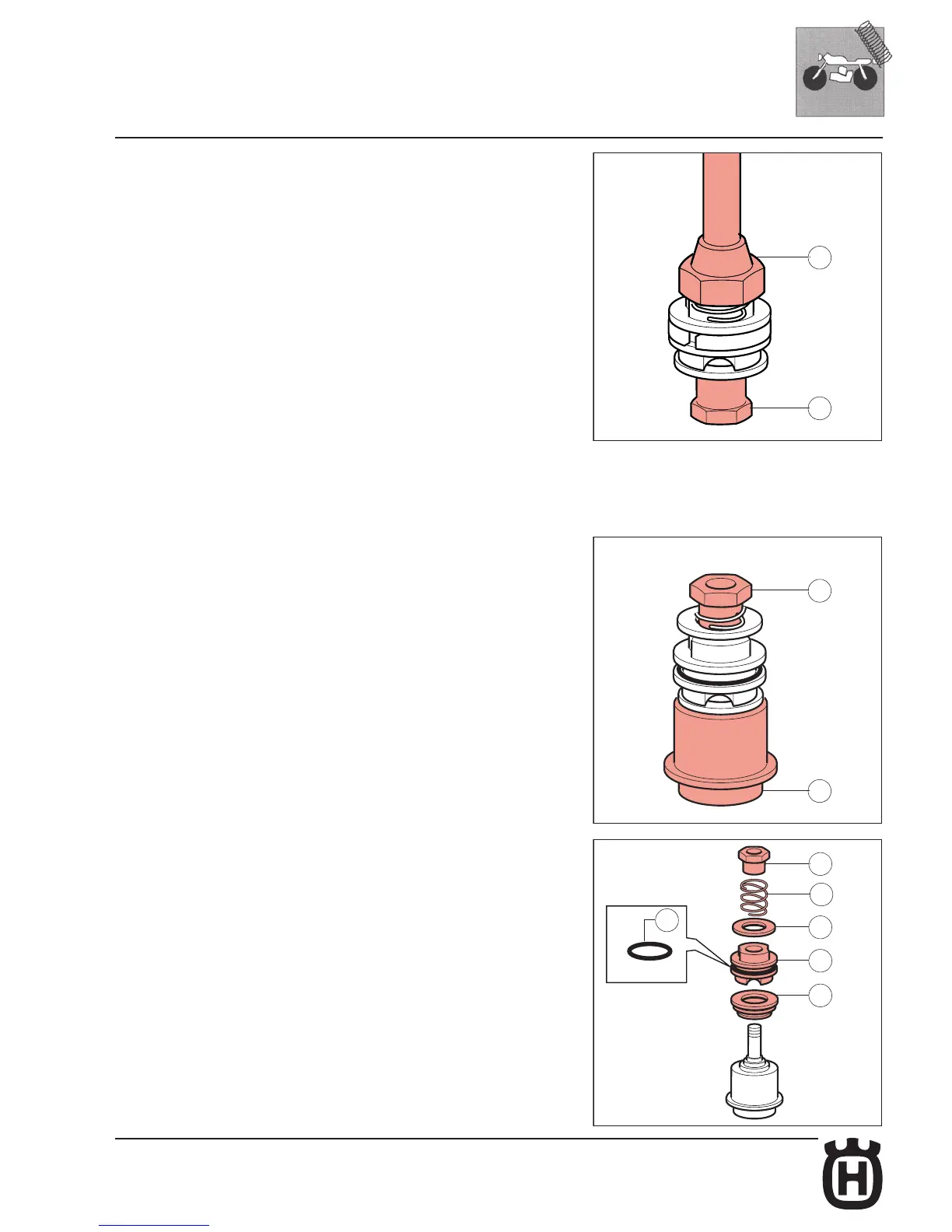

FRONT SUSPENSION
23
83
WARNING
The piston must be oriented in a way that the holes having smaller diameter
are placed towards the setting washers (37).
• Tighten the nut ( 38 ) manually.
• Clamp in the vice the damping rod ( 32 ) milled area.
• Using a proper spanner (12 or 13 mm according to the installed nut) tighten the nut
( 38 ) up to the required torque (see Table 1 – Tightening torques).
BOTTOM VALVE OVERHAULING (COMPRESSION BRAKING)
Dismantling
• Clamp in the vice the bottom screw through the spanner seizing ( 47 ).
• Using a 13 mm spanner unscrew the nut ( 42 ).
• Remove the nut ( 42 ), the spring ( 33 ), the washer ( 43 ), the piston ( 45 ) complete
with the o- ring ( 44 ), the washer or the washers’ stack regulating the compression
( 46 ), following this order.
24
74
33
34
54
64
24
44
33

Husqvarna TE 510 Specifications

General

Transmission	6-speed
Front tire	90/90-21
Rear tire	140/80-18
Dry weight	112 kg
Final Drive	Chain
Front suspension (adjustable)	Yes
Rear suspension (adjustable)	Yes
Front brake disc size	260 mm
Rear brake disc size	220 mm
Engine type	Single cylinder, 4-stroke
Fuel system	Keihin FCR-MX 41
Ignition	Electronic
Cooling system	Liquid cooled
Front suspension	Kayaba 48 mm fork
Front brakes	Single disc
Rear brakes	Single disc
