Husqvarna TE 510 User Manual

F.11Part. N. 8000 B0148 (02-2008)
ENGINE DISASSEMBLY

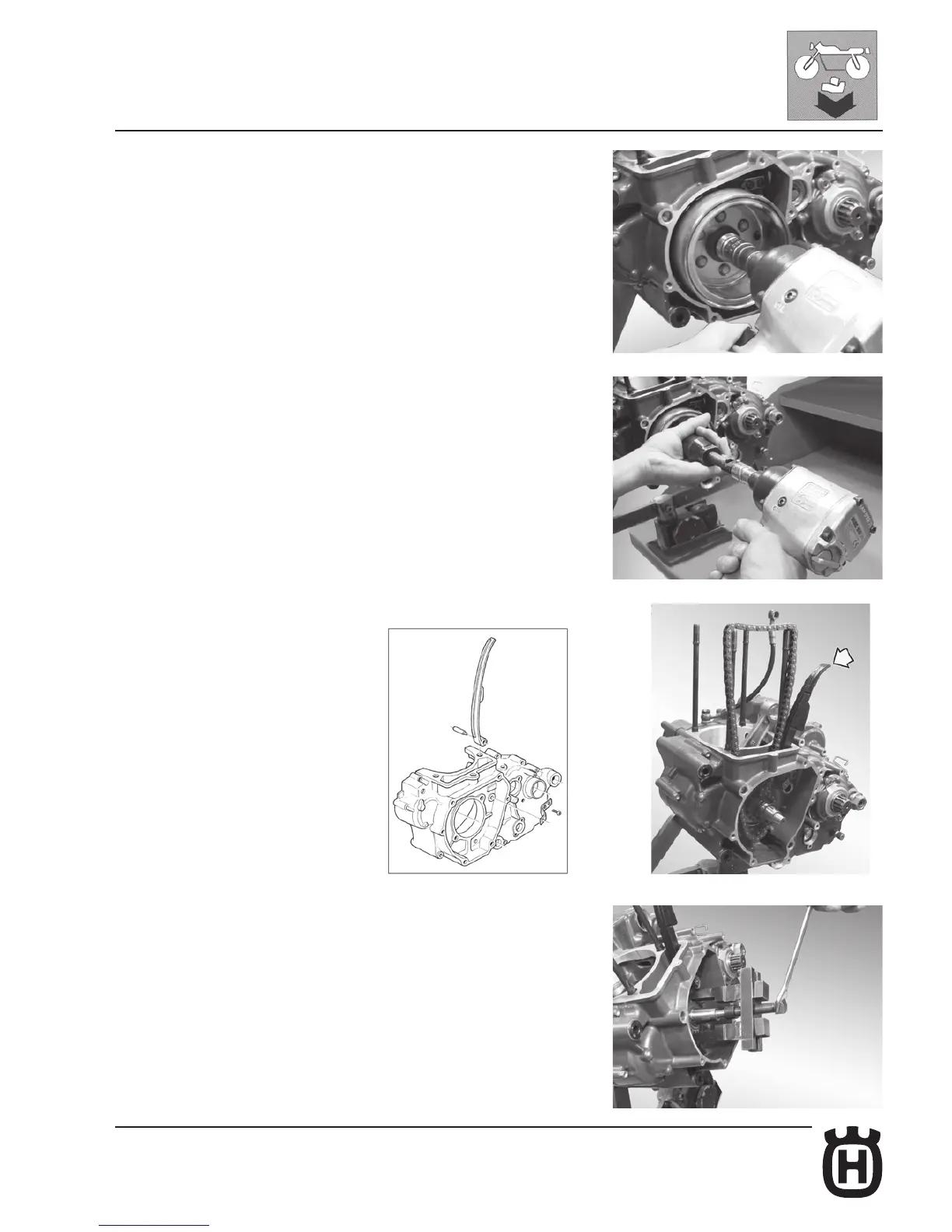

Flywheel disassembly
Maintain the rotor immobilized and remove the rotor nut (17 mm wrench).
Remove the rotor using the puller (code no. 8000 A1559 for TC-TXC and 8000
B0144 for TE-SMR).
Remove the valve timing pinion using a puller.
If the chain slider is worn, remove the fastening screw then the chain slider in
order to replace it.
Remove the timing system chain.

Husqvarna TE 510 Specifications

General

Transmission	6-speed
Front tire	90/90-21
Rear tire	140/80-18
Dry weight	112 kg
Final Drive	Chain
Front suspension (adjustable)	Yes
Rear suspension (adjustable)	Yes
Front brake disc size	260 mm
Rear brake disc size	220 mm
Engine type	Single cylinder, 4-stroke
Fuel system	Keihin FCR-MX 41
Ignition	Electronic
Cooling system	Liquid cooled
Front suspension	Kayaba 48 mm fork
Front brakes	Single disc
Rear brakes	Single disc
