ENGINE OVERHAULING
Cylinder

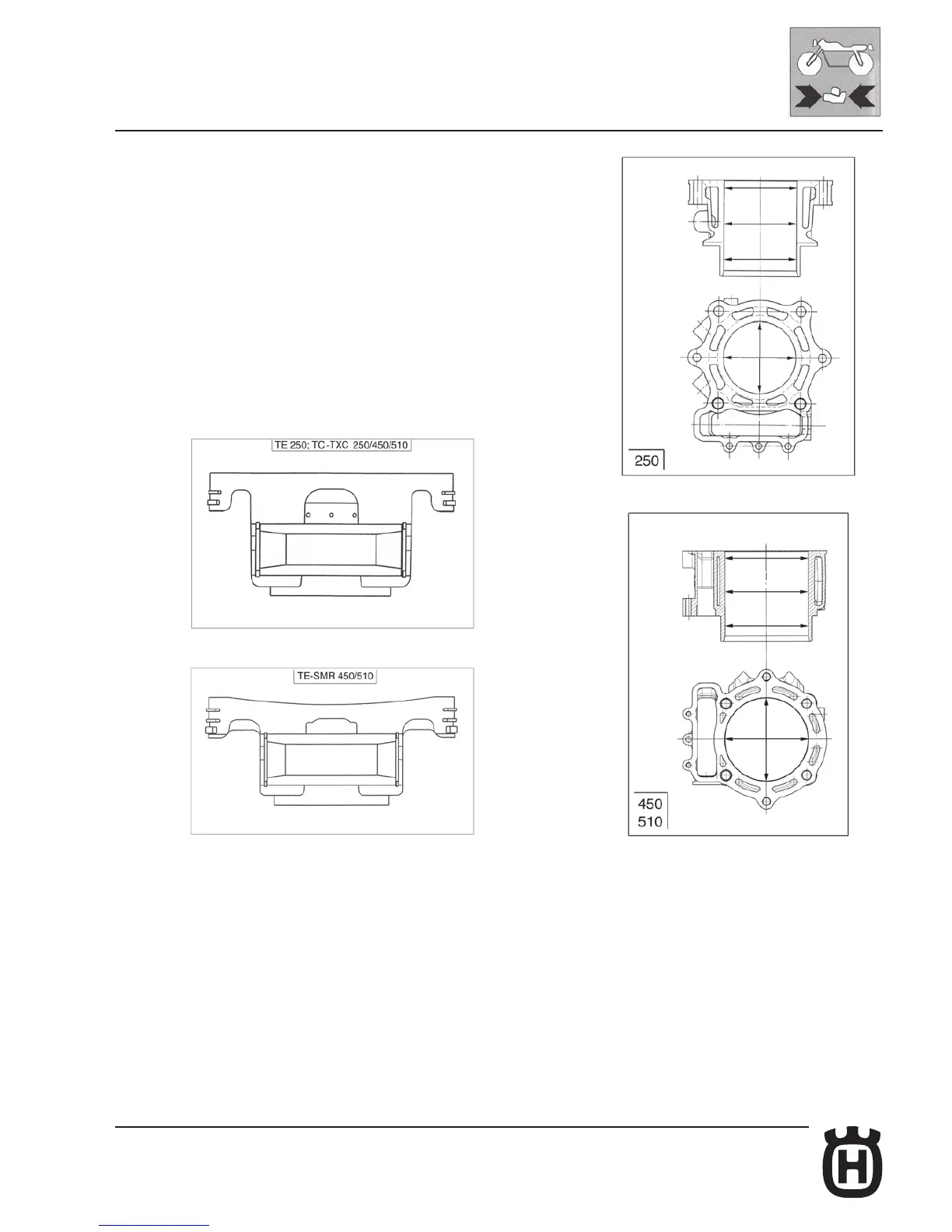

The cylinder liner bore should be completely smooth, without grooving or scor-
ing. To obtain the taper and the ovality of the cylinder liner bore take measure-
ments at three different heights and in two positions at 90° to each other.
Max taper (wear limit): 0.0019 in.
Max ovality (wear limit): 0.0019 in.
If the wear limits are greater than those prescribed, then replace the cylinder
with the piston; reboring the cylinder liner is not possible since the cylinder liner
has been given a special hardening treatment.
Piston
Thoroughly clean the piston crown and piston ring grooves of any carbon de-
posits. Carry out a visual check and a measurement check of the piston, there
should be no signs of scoring, excessive wear, cracks or other damage.

Husqvarna TE 510 Specifications

General

Transmission	6-speed
Front tire	90/90-21
Rear tire	140/80-18
Dry weight	112 kg
Final Drive	Chain
Front suspension (adjustable)	Yes
Rear suspension (adjustable)	Yes
Front brake disc size	260 mm
Rear brake disc size	220 mm
Engine type	Single cylinder, 4-stroke
Fuel system	Keihin FCR-MX 41
Ignition	Electronic
Cooling system	Liquid cooled
Front suspension	Kayaba 48 mm fork
Front brakes	Single disc
Rear brakes	Single disc
