O.2 Part. N. 8000 B0148 (02-2008)
“KIT” ASSEMBLING INSTRUCTIONS
1- 8000 A1427 (TE, TC, TXC, SMR 450-R)
R.H. crankcase guard (page O.3)
2- 8000 B0157
Engine guard (page O.3)
3- 8000 B0152 (TE-SMR) (*)
Passenger footrest Kit (page O.4)
4- 8000 A4295 (TC-TXC 250)
Carburetor KEIHIN 37 kit (page O.7)
4- 8000 A4296 (TC-TXC 450-510, SMR 450-R)
Carburetor KEIHIN 37 kit (page O.7)
5- 80A0 A6211 (TE)
Hand guards kit (page O.8)
5- 80A3630 (TE, SMR 450-R)
Hand guards kit (page O.8)
6- 8000 B0150 (TE) (*)
Blinkers Kit (page O.9-O.11)
7- 8000 B1530 (TC, TXC 250-450-510; SMR 450-R)
Hook Kit for race starting phase (page O.12)
9- 8000 B0591 (SMR)
Kick starter kit (page O.14)
10- 8000 B0428 (TC, TXC 250), 8000 B0455 (TC, TXC 450-510)
Electric starter kit (page O.28)
11- (TE, SMR)
"RACING" Kit (page. O.30)
*: Not for USA/CDN

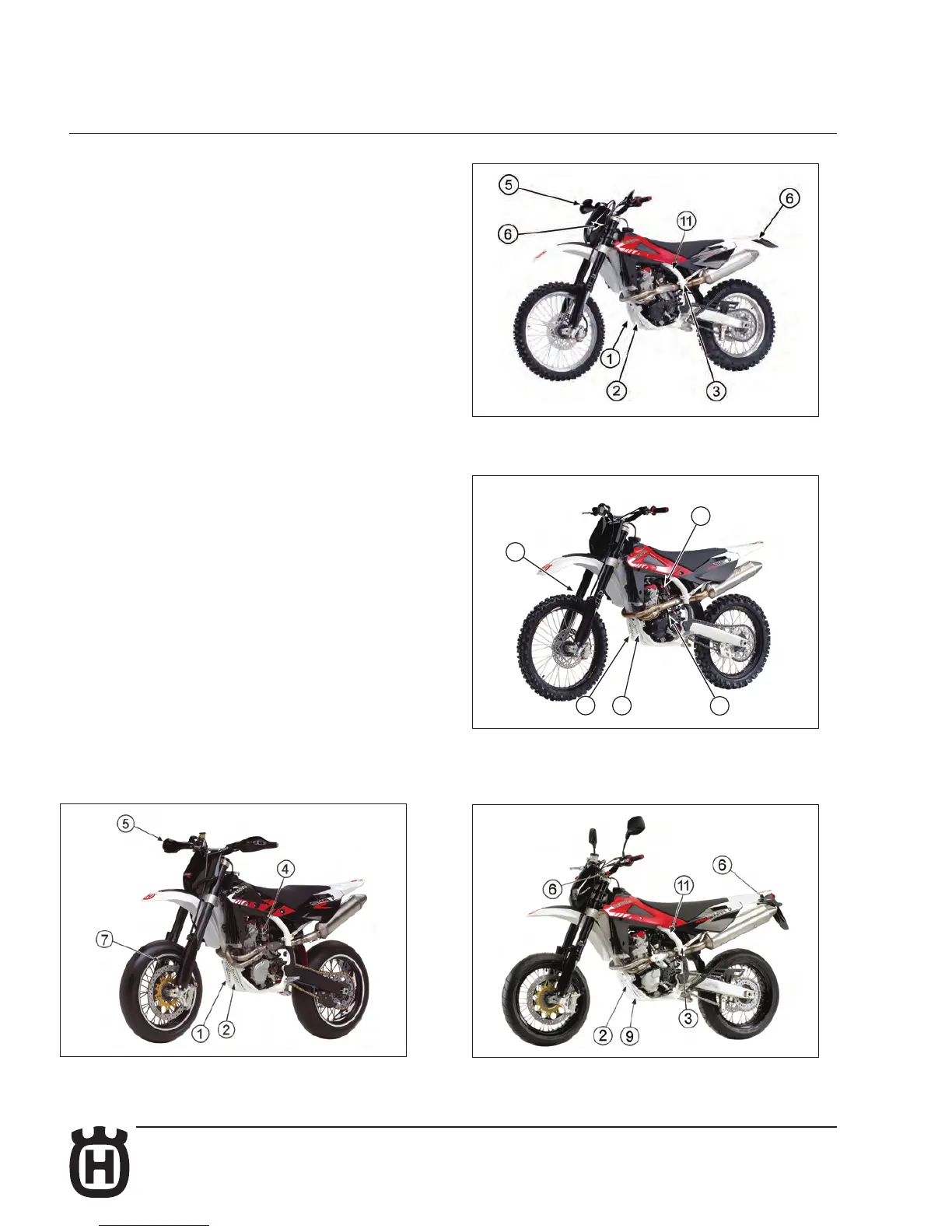

TE
TC-TXC
SMR
1
2
10
7
4
SMR 450-R

Husqvarna TE 510 Specifications

General

Transmission	6-speed
Front tire	90/90-21
Rear tire	140/80-18
Dry weight	112 kg
Final Drive	Chain
Front suspension (adjustable)	Yes
Rear suspension (adjustable)	Yes
Front brake disc size	260 mm
Rear brake disc size	220 mm
Engine type	Single cylinder, 4-stroke
Fuel system	Keihin FCR-MX 41
Ignition	Electronic
Cooling system	Liquid cooled
Front suspension	Kayaba 48 mm fork
Front brakes	Single disc
Rear brakes	Single disc
