I.23
Part. N. 8000 B0148 (02-2008)

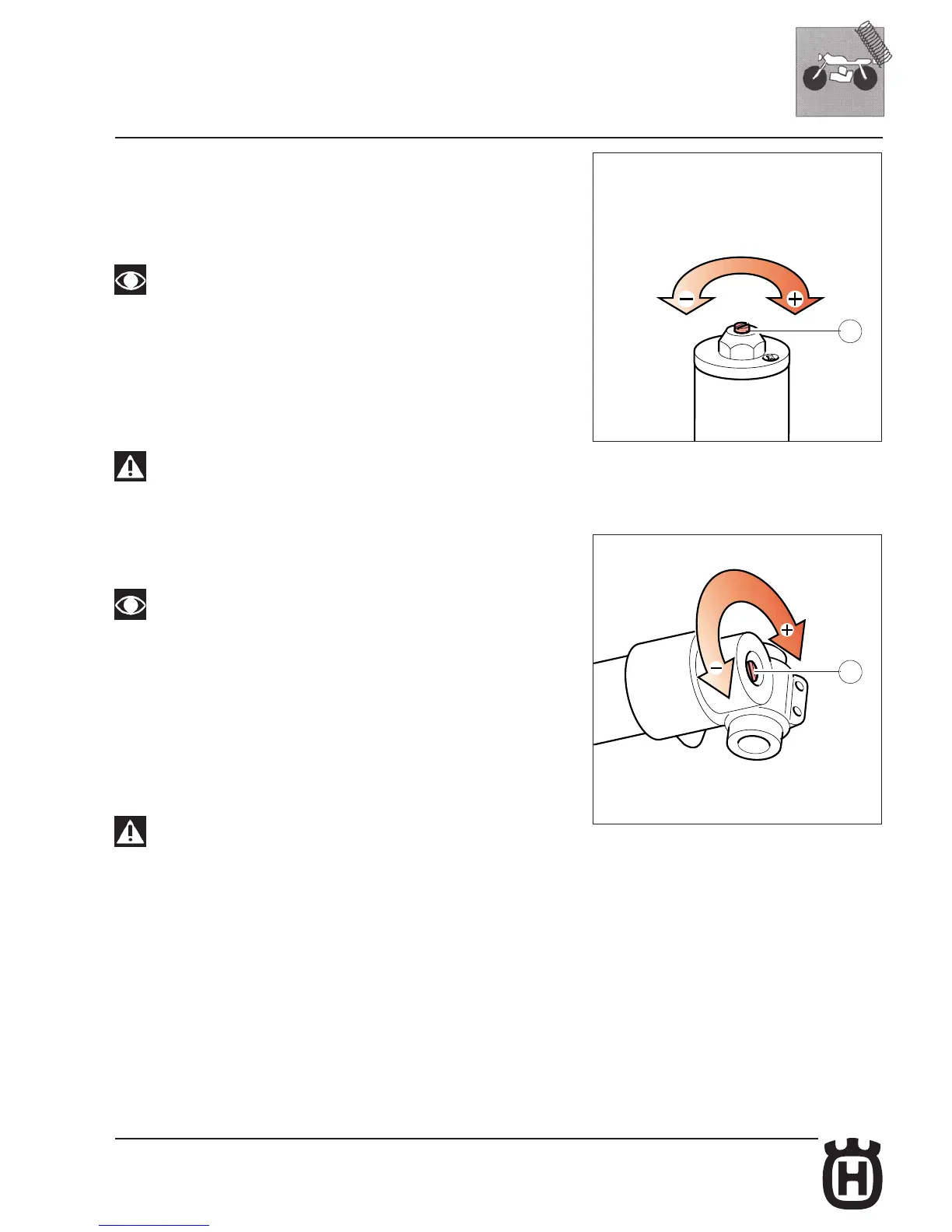

FRONT SUSPENSION
ADJUSTMENTS
REBOUND ADJUSTMENT
The extension (or rebound) damping adjustment can be made by acting on the
adjustment screw ( R ) you can see on the upper cap of both legs.
To modify the rebound braking adjustment, always start from the “fully
closed” position (the screw is fully turned clockwise). Each screw position can
be recognized by a “click”.
• When turning the adjuster ( R ) clockwise, using a proper spanner, you will increase
the rebound hydraulic damping, making the fork slower during the rebound phase.
• When turning the adjuster ( R ) counterclockwise, using a proper spanner,
you will decrease the rebound hydraulic damping, making the fork more responsive
during the rebound phase.
WARNING
Do not force the adjustment screw (R) past its limits.
COMPRESSION ADJUSTMENT
The compression damping adjustment can be made by acting on the adjustment
screw ( C ) you can see at the bottom of both fork legs.
To modify the compression braking adjustment, always start from the “fully
closed” position (the screw is fully turned clockwise). Each screw position can
be recognized by a “click”.
• Remove the plastic cap
• When turning the adjuster ( C ) clockwise, using a proper spanner, you will increase
the compression hydraulic damping, reducing the travel made by the fork, under the
same stress.
• When turning the adjuster ( C ) counterclockwise, using a proper spanner, you will
decrease the compression hydraulic damping, making the fork softer against
ground harshness.
WARNING
Do not force the adjustment screw (C) past its limits.
• Put the plastic cap back to its seat.
STANDARD ADJUSTMENTS
Compression: 12 clicks
Extension: 12 clicks
R
C
