Husqvarna TE 510 User Manual

I.28
Part. N. 8000 B0148 (02-2008)
FRONT SUSPENSION
COMPONENTS OF THE FORK
The SHIVER 50 Factory Works fork is based on a multivalve damping system
that is exactly the same on both fork legs.
Each fork leg is therefore a complete suspension system
which you must refer to when adjusting any part of the fork.
3)Compression adjustment screw
11)Outer spider
12)Lower sliding bushing
13)Spring cup
14)Sealing ring
16)Dust seal
19)Spring
24)Inner rod
25)Rod
26/37)Washers recall spring
33)Rebound damping piston washers ’ stack
35)Body in the cartridge
39)Compression piston
41)Compression damping valve washers ’ stack
43)Compression valve
44)Stanchion tube
46)Upper sliding bushing
48)Foot nut
53)Spring preload adjustment set
70)Wheel axle clamp
71)Rebound adjustment screw
72)Rebound adjustment conic pin

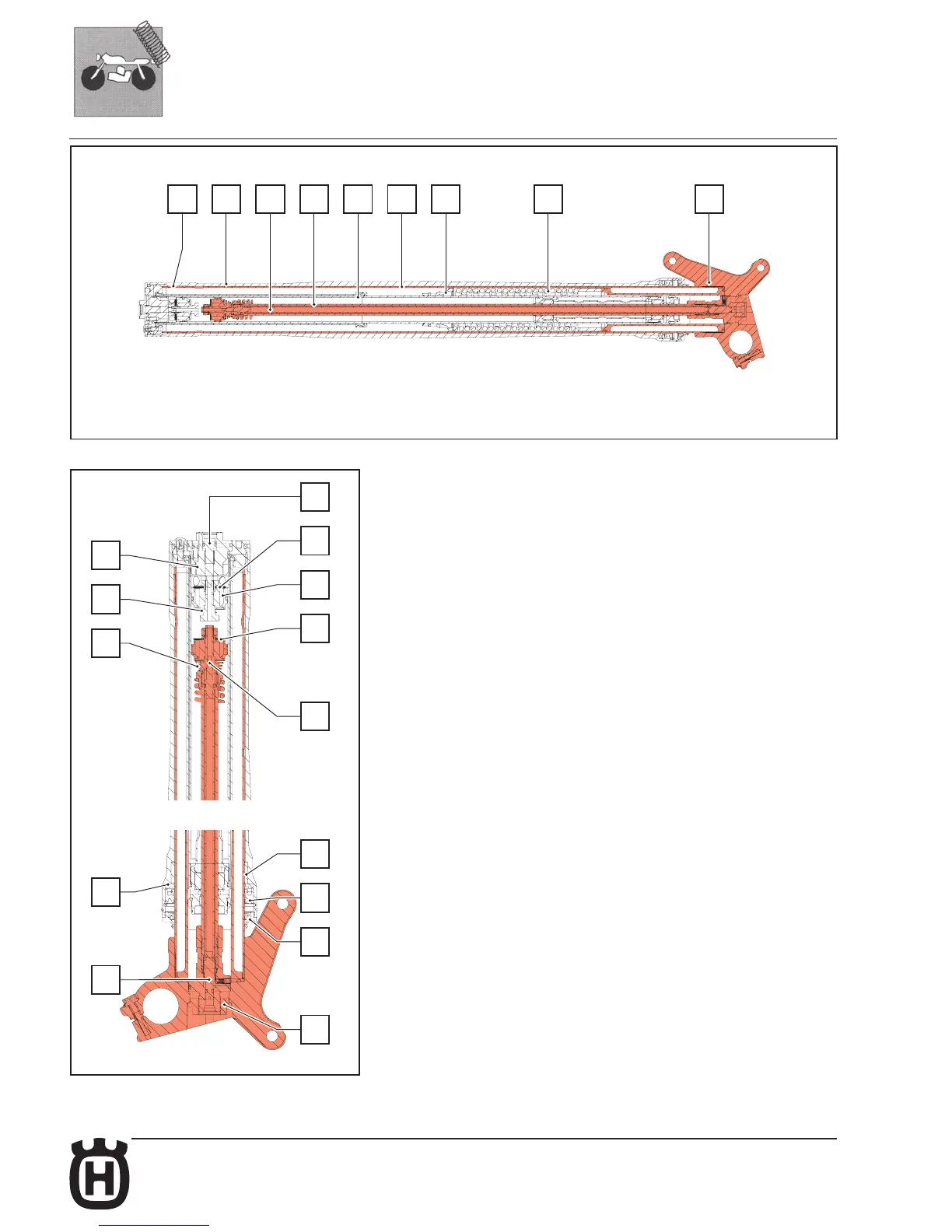

In the following • gure,the moving parts holding the wheel are indicated in
different colors (background highlighted)from those that remain • xed to the
motorcycle frame (light background).
11 24 25 1935 44 53 7046
3
14
16
48
12
39
33
72
41
37
26
43
71
13

Husqvarna TE 510 Specifications

General

Transmission	6-speed
Front tire	90/90-21
Rear tire	140/80-18
Dry weight	112 kg
Final Drive	Chain
Front suspension (adjustable)	Yes
Rear suspension (adjustable)	Yes
Front brake disc size	260 mm
Rear brake disc size	220 mm
Engine type	Single cylinder, 4-stroke
Fuel system	Keihin FCR-MX 41
Ignition	Electronic
Cooling system	Liquid cooled
Front suspension	Kayaba 48 mm fork
Front brakes	Single disc
Rear brakes	Single disc
