SETTINGS AND ADJUSTMENTS
Part. N. 8000 B0148 (02-2008) D.19
C: to encrease clearance
D: to decrease clearance

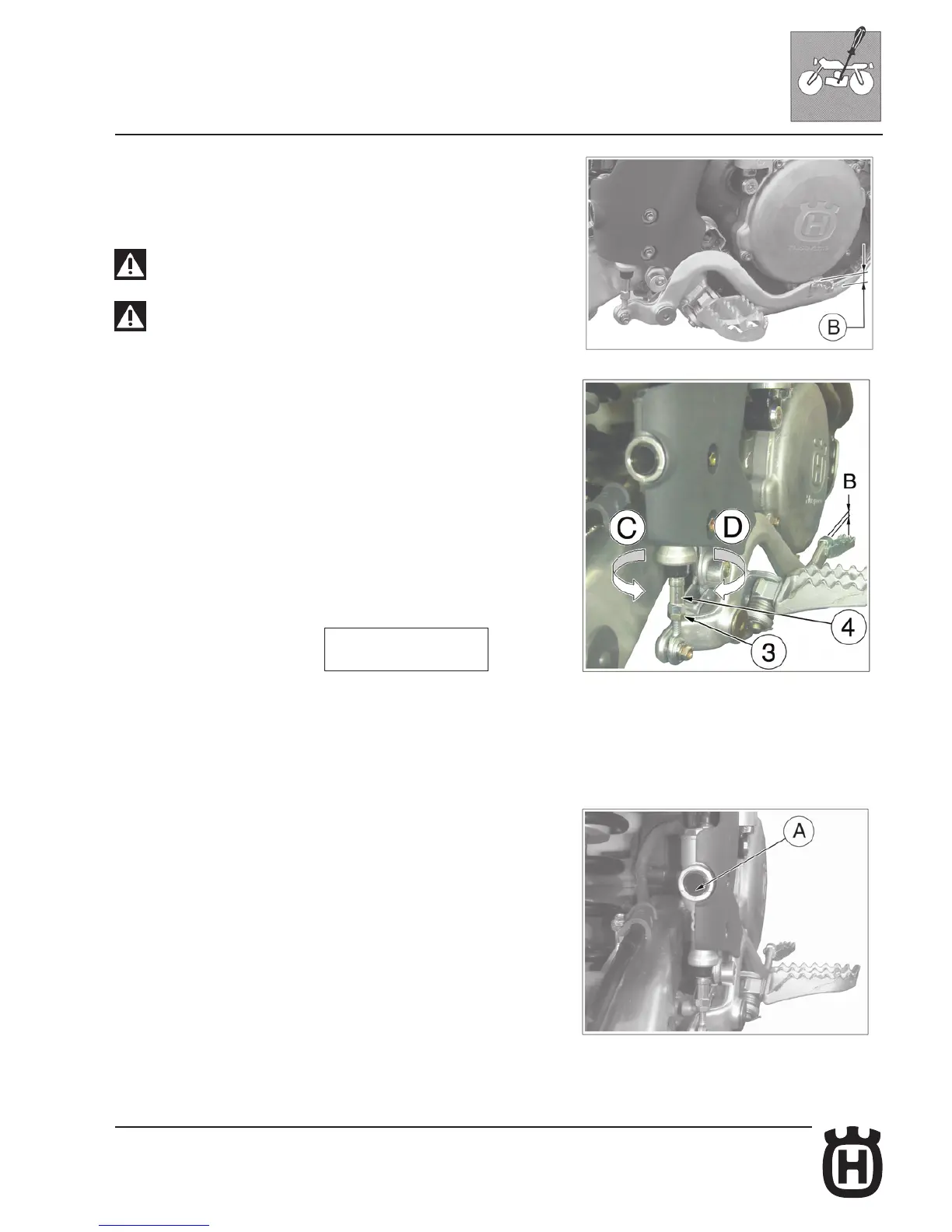

Checking the rear brake fluid level
The level (A) must be set between the pump tank notches of MIN and MAX.
Rear brake idle stroke adjustment
The rear brake foot pedal should have a (B) 5 mm (0.2 in.) idle stroke before
starting the true braking action. Should this not happen proceed as follows:
- loosen nut (3);
- operate the pump rod (4) to increase or decrease the idle stroke;
- tighten nut (3) at the end of the operation.
: When the idle stroke figures are not met, the brake pads will be subjected
to a fast wear that may bring to the TOTAL BRAKE INEFFICIENCY.
: If the brake pedal feels mushy when it is applied, there may be air in the
brake lines or the brake may be defective: CHECK THE BRAKING SYSTEM
(pag. L.8).

Husqvarna TE 510 Specifications

General

Transmission	6-speed
Front tire	90/90-21
Rear tire	140/80-18
Dry weight	112 kg
Final Drive	Chain
Front suspension (adjustable)	Yes
Rear suspension (adjustable)	Yes
Front brake disc size	260 mm
Rear brake disc size	220 mm
Engine type	Single cylinder, 4-stroke
Fuel system	Keihin FCR-MX 41
Ignition	Electronic
Cooling system	Liquid cooled
Front suspension	Kayaba 48 mm fork
Front brakes	Single disc
Rear brakes	Single disc
