Husqvarna TE 510 User Manual

D.38 Part. N. 8000 B0148 (02-2008)
SETTINGS AND ADJUSTMENTS

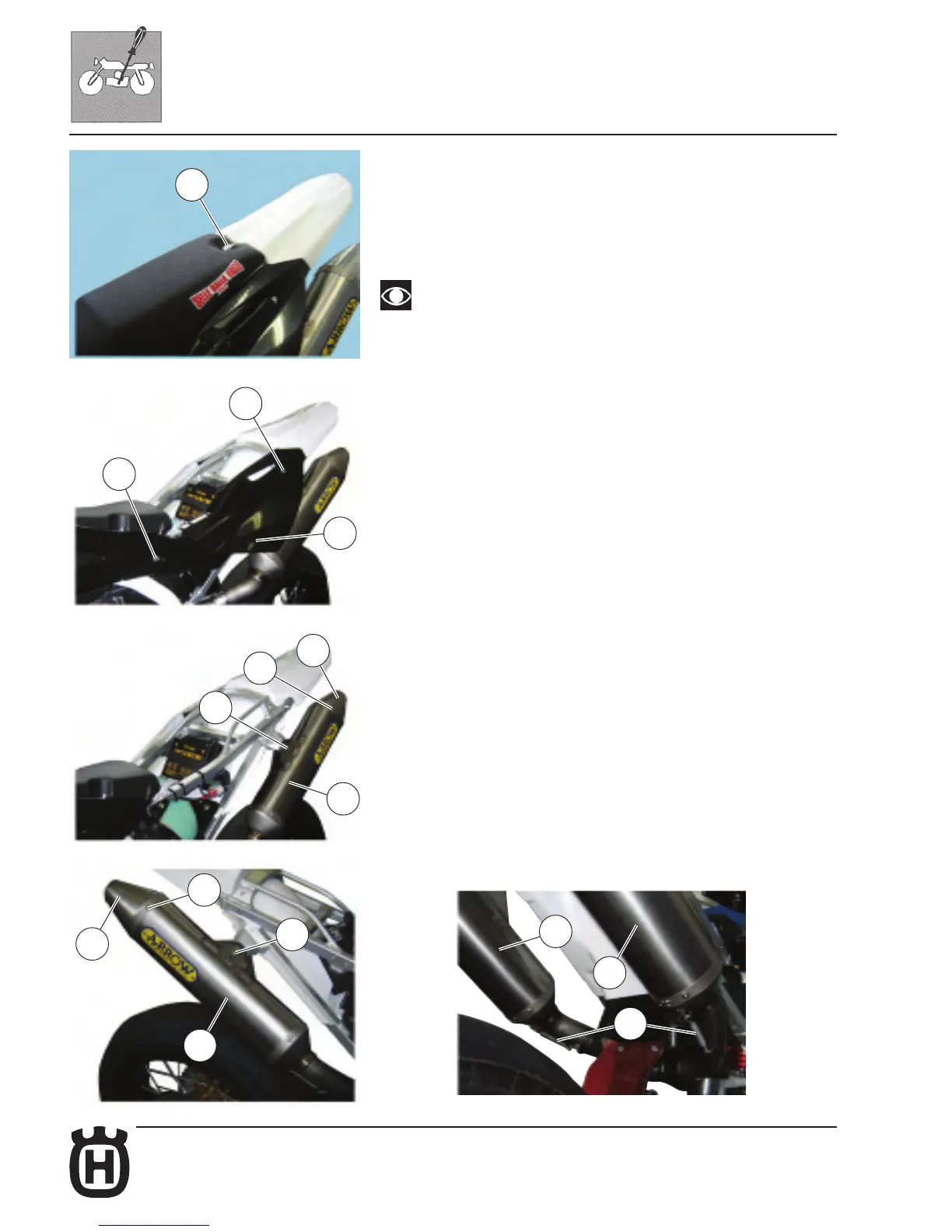

Replacing the muffler deadening material (SMR 450-R)
Remove the saddle after turning the locking back pin (1) anticlockwise, loosen the
screws (2) with an 8-mm T-shaped spanner and remove the side panel (3) (do the
same on the right side). Using an 8 mm T-shaped spanner on the outside and a
10 mm T-shaped spanner on the inside, remove the locking screw (4) of the
muffler. Remove the spring (5) and pull out the muffler (A) o (B). Remove the four
rear rivets (6), clamp and the exhaust terminal (7). Remove innner pipe and
replace the deadening material. Reassemble L.H. side panel and saddle.
: When diffuculties are found in removing the muffler, lightly beat with
a rubber or plastic hammer.
1
2
2
3
7
6
4
7
A
6
4
B
B
A
5

Husqvarna TE 510 Specifications

General

Transmission	6-speed
Front tire	90/90-21
Rear tire	140/80-18
Dry weight	112 kg
Final Drive	Chain
Front suspension (adjustable)	Yes
Rear suspension (adjustable)	Yes
Front brake disc size	260 mm
Rear brake disc size	220 mm
Engine type	Single cylinder, 4-stroke
Fuel system	Keihin FCR-MX 41
Ignition	Electronic
Cooling system	Liquid cooled
Front suspension	Kayaba 48 mm fork
Front brakes	Single disc
Rear brakes	Single disc
