Husqvarna TE 510 User Manual

M.27Part. N. 8000 B0148 (02-2008)
ELECTRIC SYSTEM, DIGITAL INSTRUMENT
1
3
A NEUTRAL (open circuit) 312÷319
B 1st gear 556÷568 725÷739
C 2nd gear 817÷833 1,31÷1,34 K
D 3rd gear 1,48÷1,51 K 2,18÷2,23 K
E 4th gear 2,71÷2,77 K 3,61÷3,68 K
F 5th gear 6,75÷6,88 K 6,58÷6,71 K
G 6th gear 14,8÷15,1 K 15,2÷15,5 K
TC-TXC
SMR450 R
TE-SMR

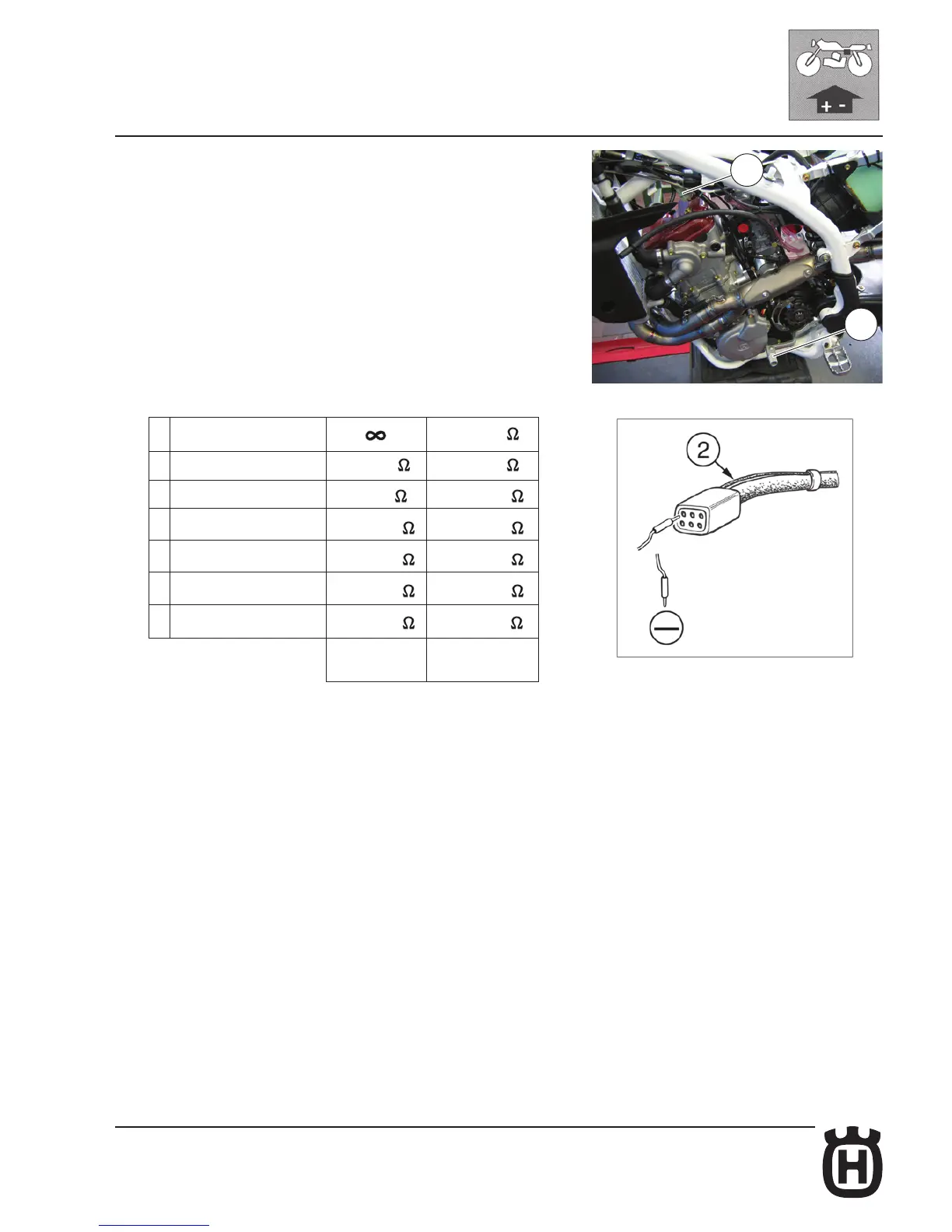

Gear shift position sensor checking (GPS: Gear Position Sensor)
Set the tester on "Ohm" position then detach the 6 ways connector (1) from the
main wiring harness (the gear shift position sensor is fastened on the alternator
cable with a clamp). Ground a tester terminal on the engine then insert the other
one in the hole where is the gear sensor BLACK cable (2). The lever (3) is placed
on the left-hand side of the engine. After every shift, the lever automatically
returns to horizontal position. First gear is engaged by pushing the lever
downwards; all the other gears are engaged, by pushing the lever upwards. See
the table below for the data to be checked.

Husqvarna TE 510 Specifications

General

Transmission	6-speed
Front tire	90/90-21
Rear tire	140/80-18
Dry weight	112 kg
Final Drive	Chain
Front suspension (adjustable)	Yes
Rear suspension (adjustable)	Yes
Front brake disc size	260 mm
Rear brake disc size	220 mm
Engine type	Single cylinder, 4-stroke
Fuel system	Keihin FCR-MX 41
Ignition	Electronic
Cooling system	Liquid cooled
Front suspension	Kayaba 48 mm fork
Front brakes	Single disc
Rear brakes	Single disc
