SHUTTLE LENGTH CONTROLS
The controls shown below are used in conjunction with the Sequencer Control to maintain the cut lengths. There
are separate controls for rough length and fine tuning a cut length.
Micrometer head for close tolerance control
Rough length controls,
Scale, Pointer, and Locking Knob
Guide Arms with Handles
Locked (4 to 6 O'clock Position)
Carbide Levers in Tensioned
Position (Upright)
Carbide Tensioning
Levers
Guide Arm
Locking Handles
GUIDE ARM POSITIONING
The S-23A guide arms are adjustable to
accommodate varying material widths. The guide
arms should be adjusted as close to the material
width as possible while still allowing the material to
pass between them. This process of matching the
guide arm width to the material size is important to
optimize blade life.

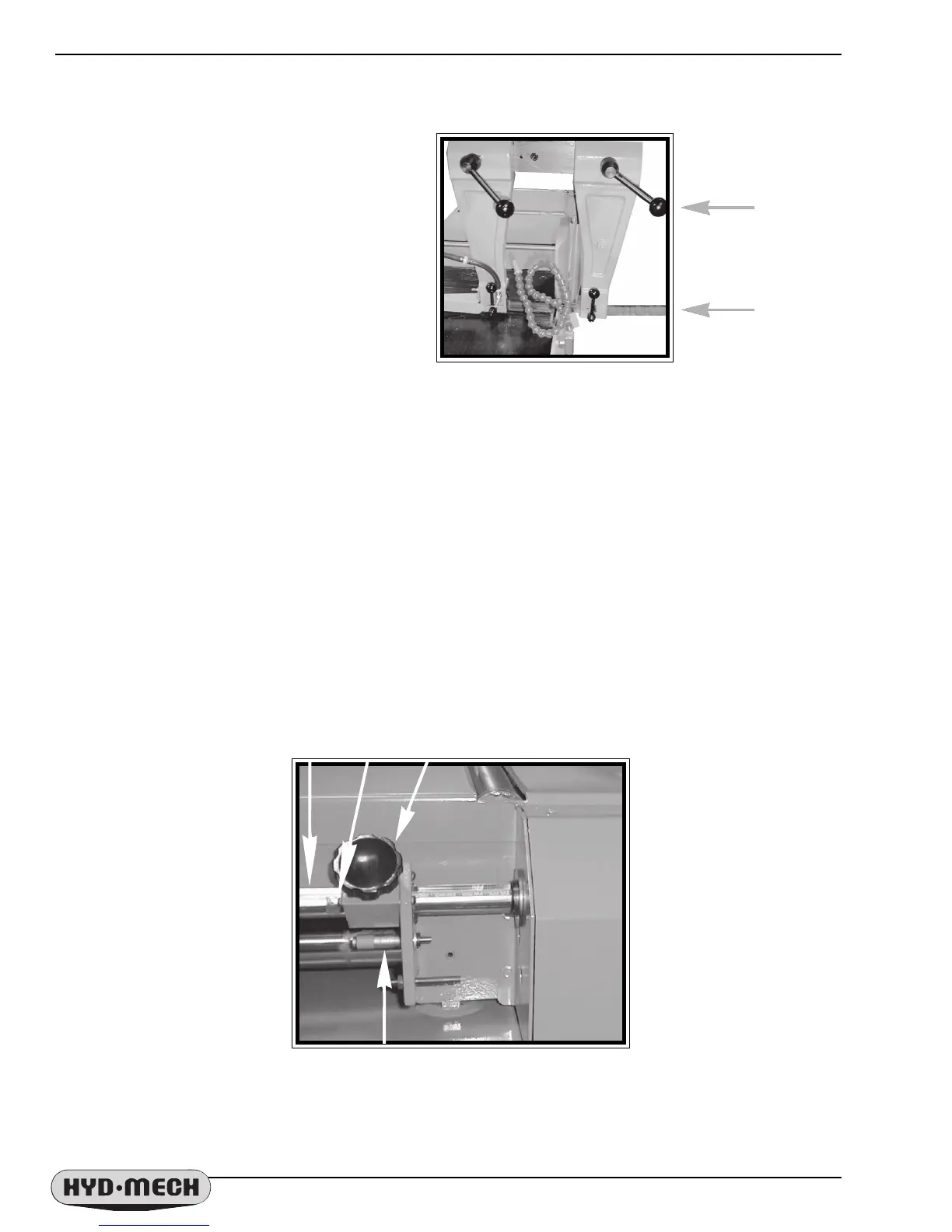

To adjust the guide arms the locking handles are
loosened and then the guide arms will slide on the
main guide bar which holds them.To loosen the
handle it should be turned counterclockwise and to
retighten the handle,it is turned clockwise. The photo
shows the Guide Arms with the handles in the
Locked position.
