4.5

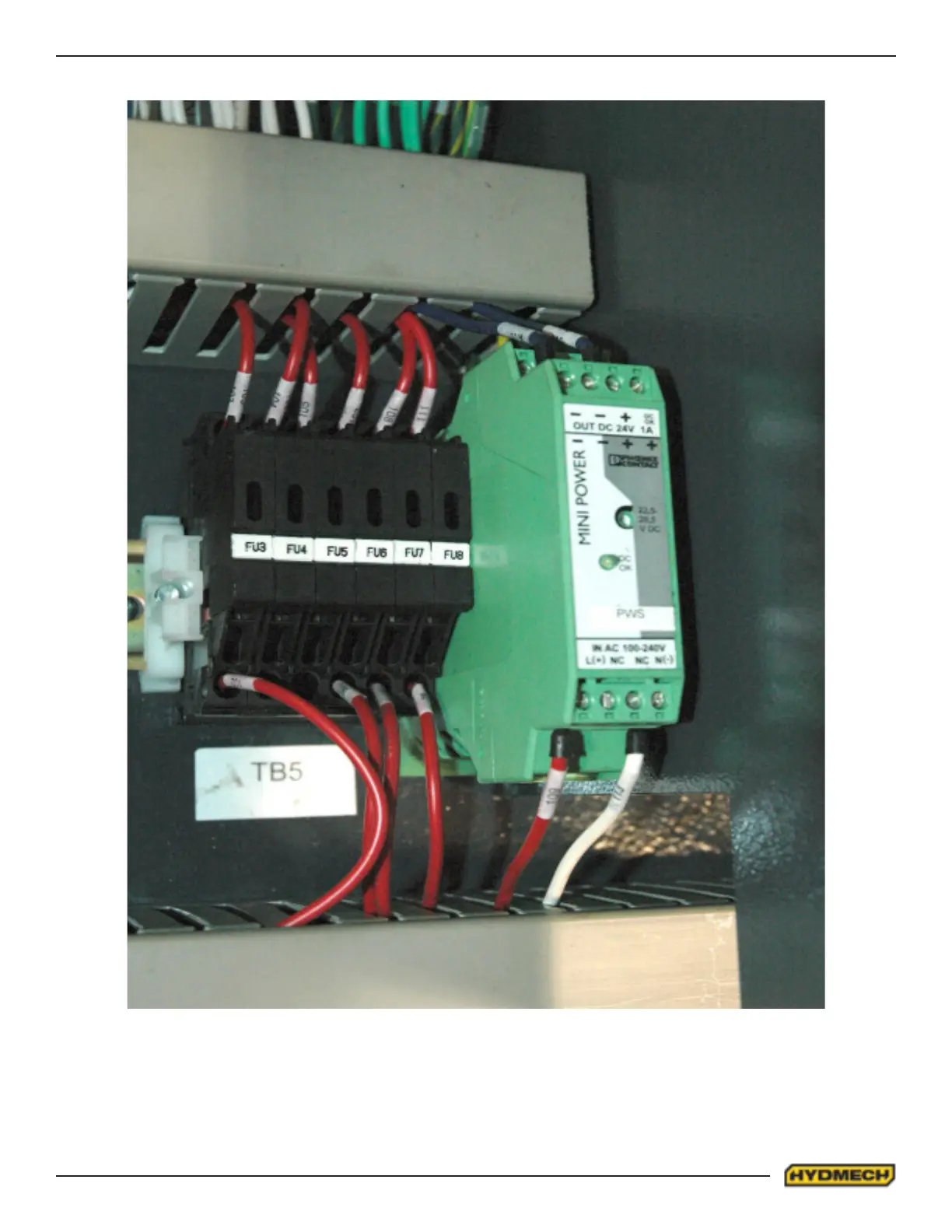

TB5
TB5 contains fusible terminals and a power supply. These are identied on the schematic as FU3 to FU8 and PWS for
the power supply.
