1.4
WIRING CONNECTIONS
After the machine is leveled and anchored the necessary power hook-up needs to be performed. In order to provide a safe
operation as well as to prevent potential damage to the machine, only qualied personnel should be allowed to do the work.
BEFORE START-UP THE FOLLOWING TWO POINTS SHOULD BE CHECKED:
1. Signs of damage that may have occurred during shipping to the electrical cables, conduits and the hydraulic hoses.
2. The hydraulic oil level is between the upper and lower lines on the level gauge.
As supplied, the machine is set to run on three phase voltage as indicated on the serial plate and voltage label.
Power connection to the machine is made to L1, L2, L3 and ground at the disconnect switch. The disconnect switch box
is located on the right side of the Operator Control Panel. For machines equipped with a variable frequency drive unit, an
earth ground is also recommended.
During the initial hook-up it is very important to check that the phase order is correct. This is indicated by the hydraulic
pressure gauge registering a pressure rise and the blade running in a counter clockwise direction. If the hydraulics do not
register an immediate pressure rise, shut the hydraulics off and change the phase order.
ATTENTION: Running the hydraulics “backwards” can damage the hydraulic pump

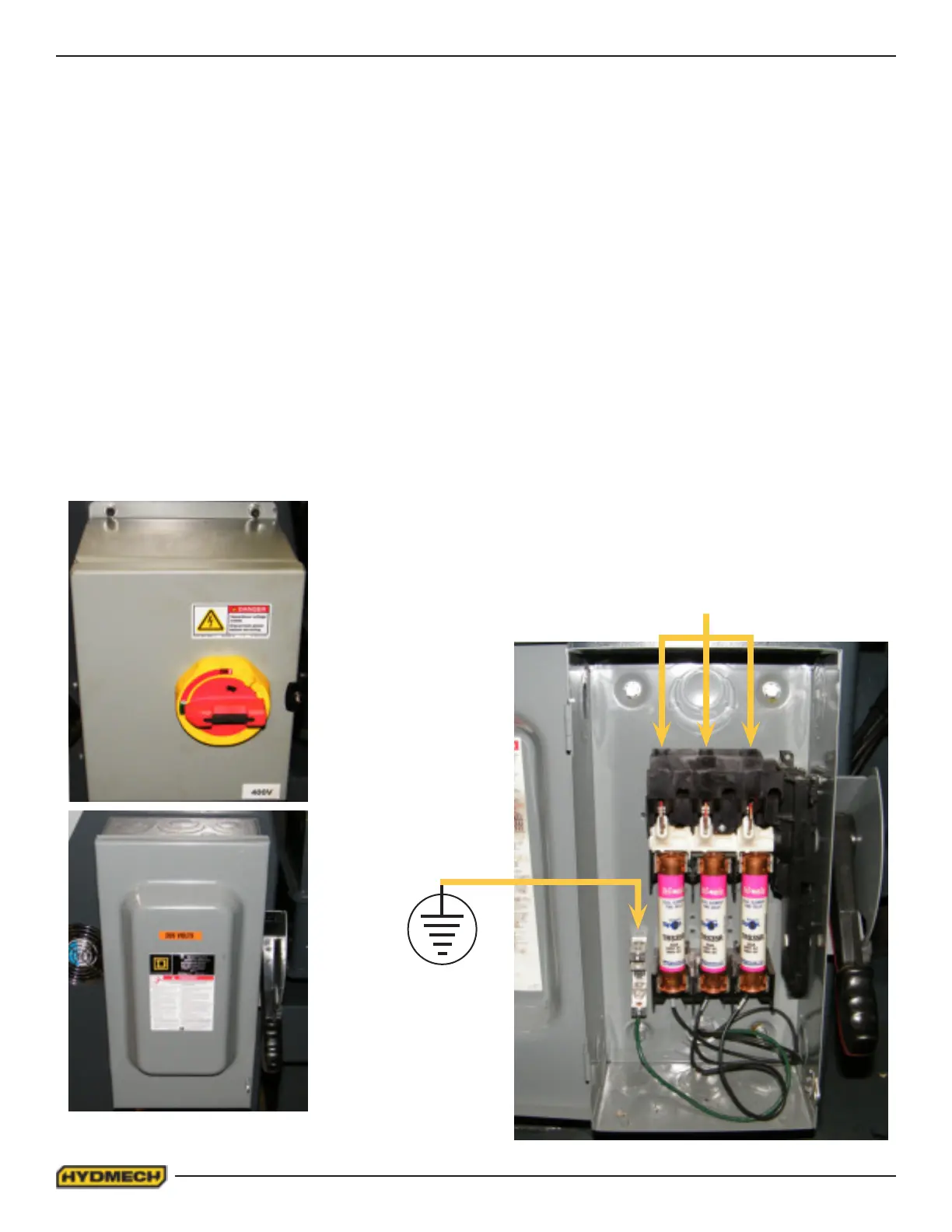

Main Power Connections
L1 L2 L3
Style of Disconnect Switch may vary.
