HEAD HEIGHT CHECK
The head height is carefully checked at the factory prior to shipping and should not change, however there may be a
possibility that either through lifting or when the machine is in transit, the position changes slightly. This should be checked
at the time of installation.
If adjustment is required, loosen the jam nut on the head cylinder and turn the cylinder rod to drive the rod end in or out as
required. The blade should be 1/8” below the top surface of the infeed table.

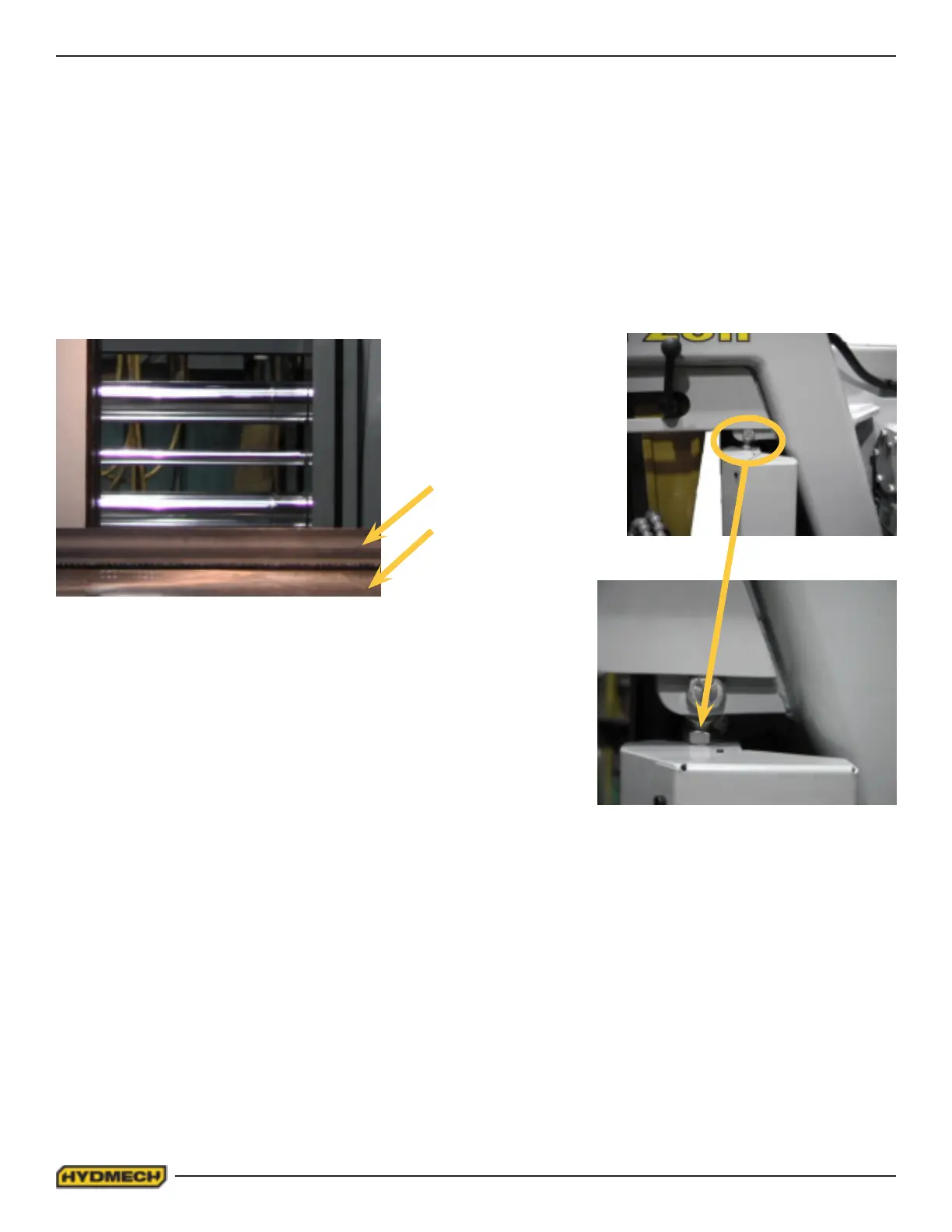

Blade
Outfeed Table
Blade teeth 1/8” below the top
surface of the Infeed Table
Head Height Adjustment
