Hydmech M16A - Section 5 - Hydraulic; M20 Hydraulic Assembly Component List

5.1
SECTION 5 - HYDRAULIC
The M16, M20 hydraulic system does not require any special work on a new machine before its start up. The hydraulic
tank is lled with Texaco Rando HD46 hydraulic oil and all machine functions have been tested at the factory to ensure
proper operation upon initial start-up.
ITEM QTY M20 PART NUMBER DESCRIPTION
1 1 M20-C4-00B Head Cylinder
2 1 M16-C1-00A Shuttle Cylinder
3 1 S25-C5-00 Blade Tension Cylinder
4 1 M20-C21-00A Front Vise Cylinder
5 1 M20-C21-00A Shuttle Vise Cylinder
6 1 M16-C22-00B Datum Vise Cylinder
7 2 M20-C23-00B Bundling Clamp Cylinder (Optional)
8 1 M20-C6-00 Guide Arm Cylinder
9 1 M16-C7-00 Swing Cylinder
10 1 DDF21-0-00 Positive Downfeed Valve
11 1 MB6PA Manifold Block
12 1 EB-01A Manifold Extension Block
13 4 DPCH-1 Double Pilot Check
14 3 PG-10 Pressure Gauge (1000 psi)
15 1 PG-10 Pressure Gauge (1000 psi, VVP option)
16 1 DCV3P-AB-T Head Lift Valve
17 1 DCV3P-AB-C Blade Tension Valve

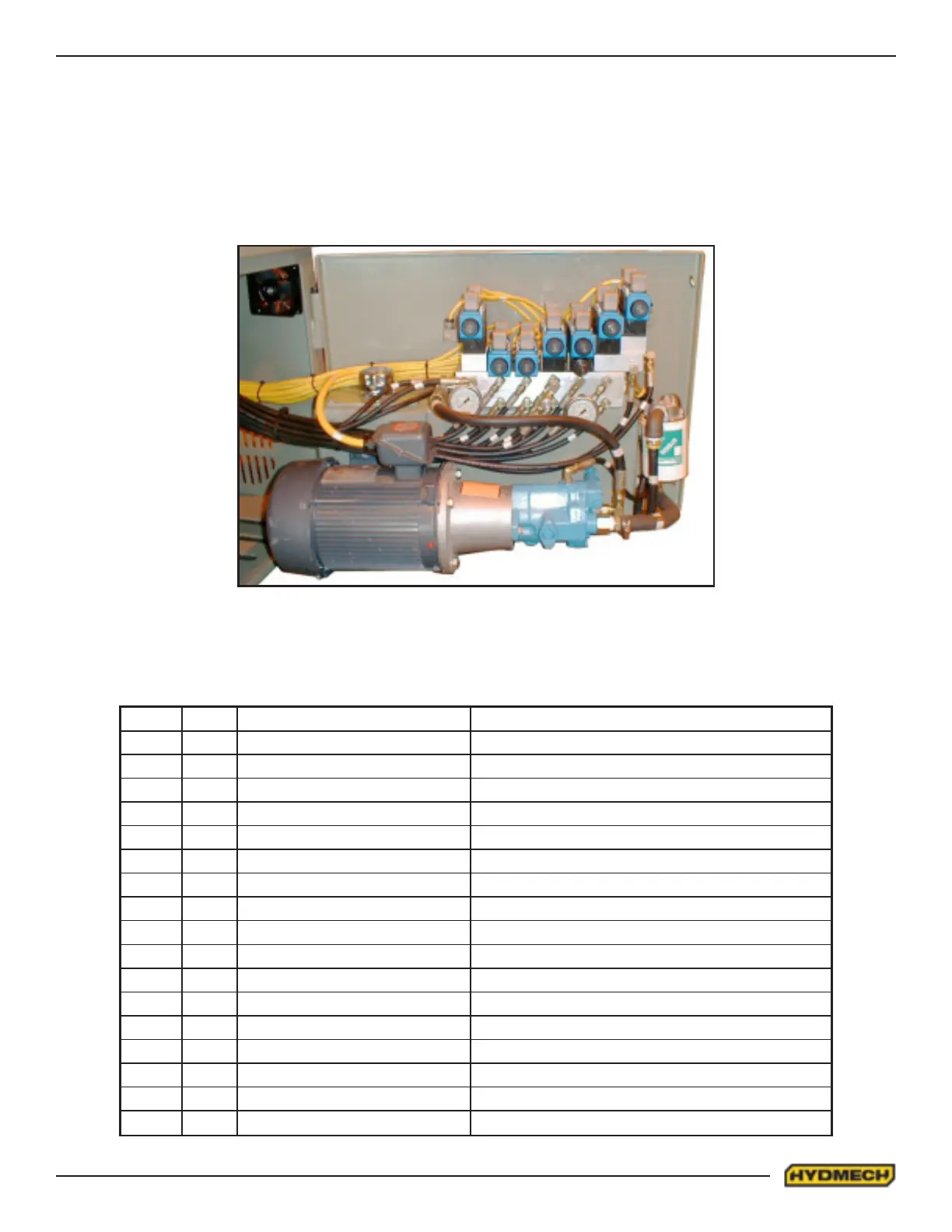

M20 HYDRAULIC ASSEMBLY COMPONENT LIST
