1.2

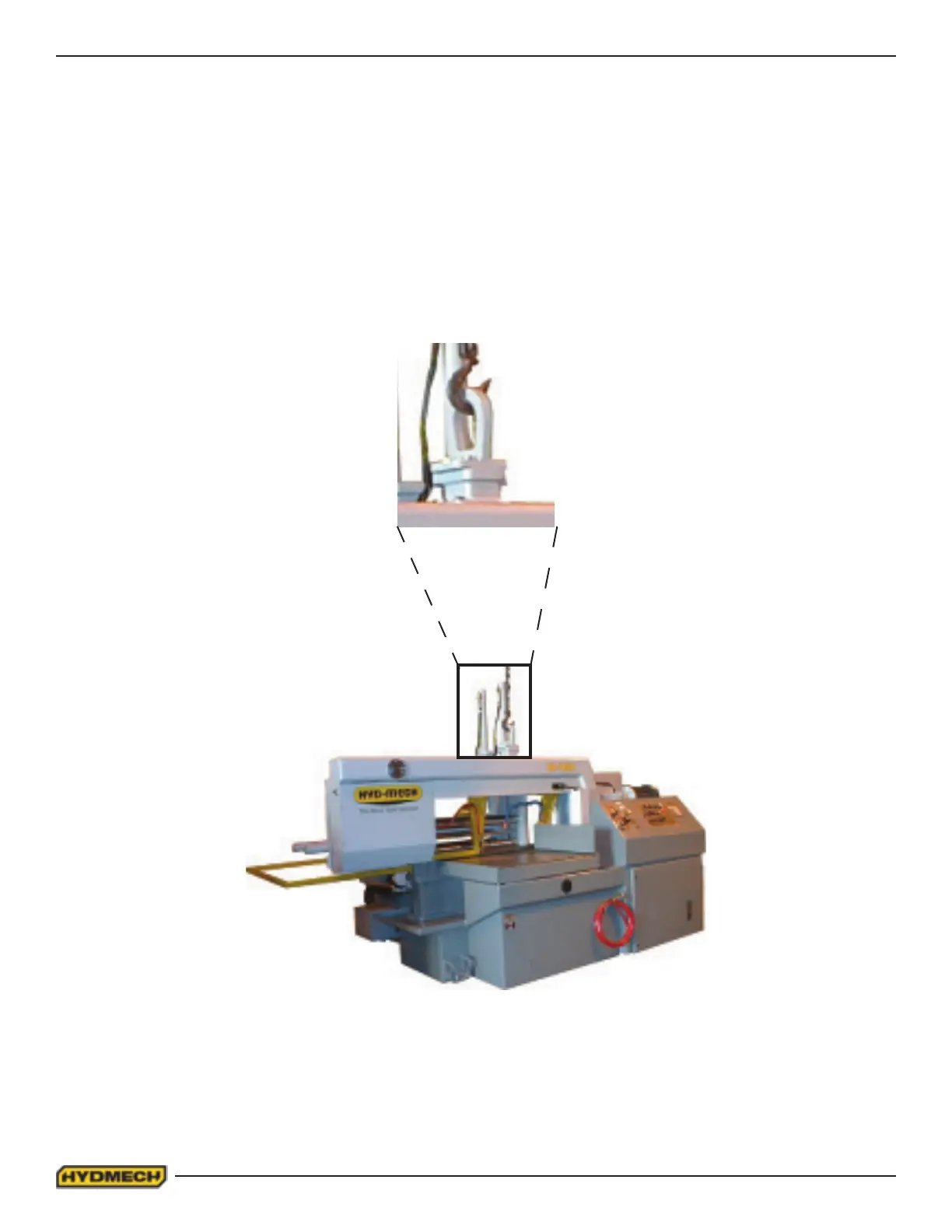

Lifting hook
M-16A being lifted.
LIFTING INSTRUCTION
This machine is designed to be lifted in one, fully assembled piece. In order to lift the machine it needs to be in the follow-
ing condition.
- Saw head in its bottom position at 90
O
.
- Shuttle vise fully forward.
- Coolant tank emptied.
There is a large lifting eye (shown below) at the top of the machine. The machine may be lifted with an overhead hoist and
chain, both being rated for 7400 lbs (3356 kg) for the M-16A or 7700lbs (3465kg) for the M-20A. For “P” models the weight
is less, 6400lbs (2880kg) for the M-16P and 6800lbs (3060kg) for the M-20P.
