2.12

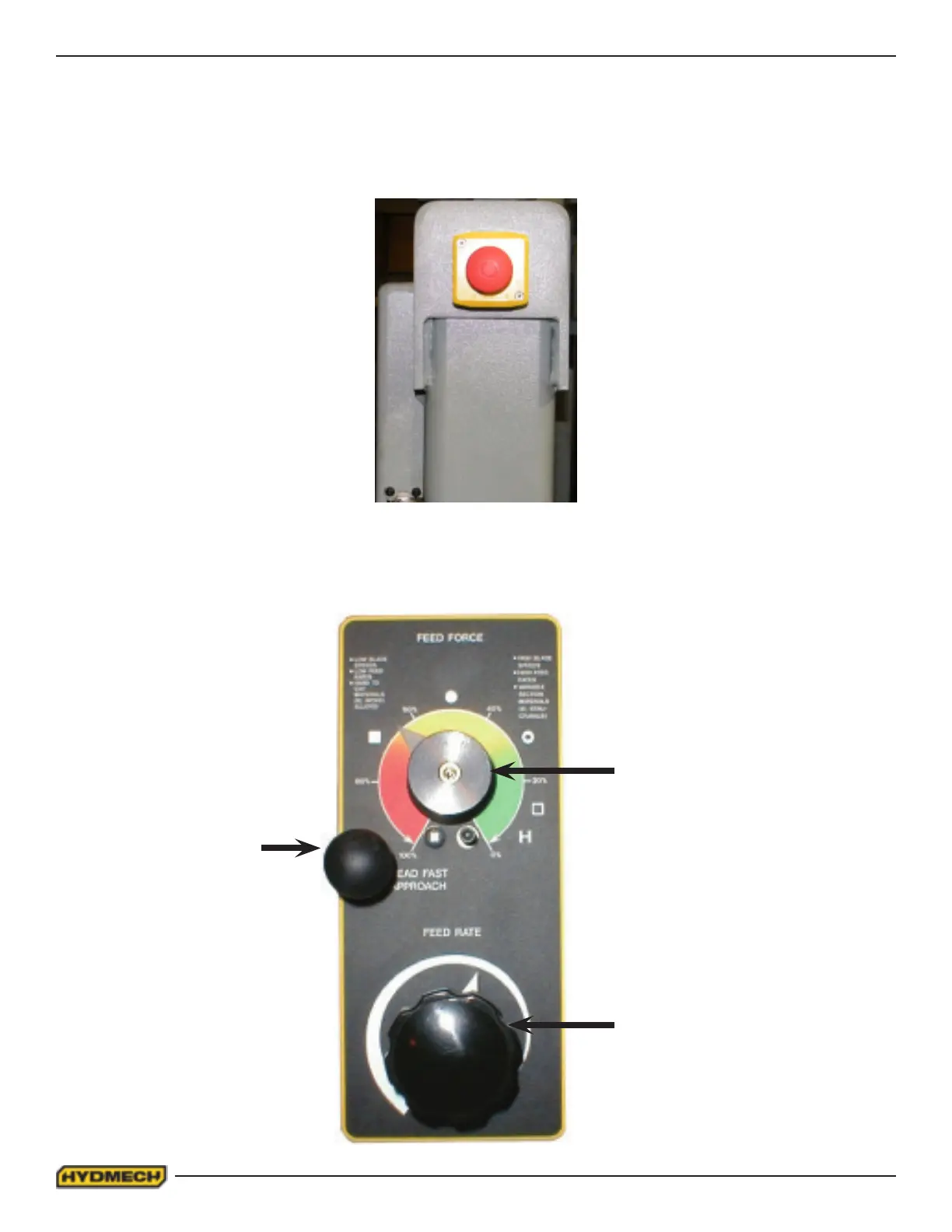

SHUTTLE EMERGENCY STOP
A second emergency stop push button is mounted to the shuttle above the shuttle vise cylinders. This mushroom button
stops the blade and hydraulic motors. Both vises will hold their position but, pressure will begin to fall off. Long pieces of
work should always be supported so they will not become loose over time and fall while the machine is shut down. This is
a latched button and must be pulled out to start the machine.
FAST APPROACH LEVER.
DEPRESS FOR FAST HEAD
DESCENT
FEED FORCE KNOB
USED TO SET FEED FORCE
LIMIT (COUNTERCLOCKWISE
ROTATION TO INCREASE AND
CLOCKWISE ROTATION TO
DECREASE).
FEED RATE KNOB
USED TO SET FEED RATE
(COUNTERCLOCKWISE
ROTATION TO INCREASE AND
CLOCKWISE ROTATION TO
DECREASE).
HYDRAULIC FEED CONTROL
The Hydraulic Feed Control is located to the left of the control panel. These controls allow independent control of
Feed Force (FF) and Feed Rate (FR)
