1.3
FOUNDATION, LEVELLING AND ANCHORING
Machine location should be carefully selected. A at concrete oor area should be chosen. It should have enough free
space surrounding the machine to enable free access for safe operation and maintenance.
The machine should be leveled in both directions, i.e. along and across its in-feed conveyor especially when the machine
is to be inserted into a larger conveyor system. Four leveling screws are provided, one in each corner of the machine
base. Steel plates are to be placed under each screw to prevent their sinking into the concrete oor. In cases when the
machine is to be anchored permanently, anchoring holes are provided. They are located next to the leveling screws.
NOTE:
In some cases leveling the saw in-feed and auxiliary conveyors with a slight slope towards the blade is recommended.
This will prevent coolant from running down the raw stock. (This is especially true when cutting tubing or bundles).

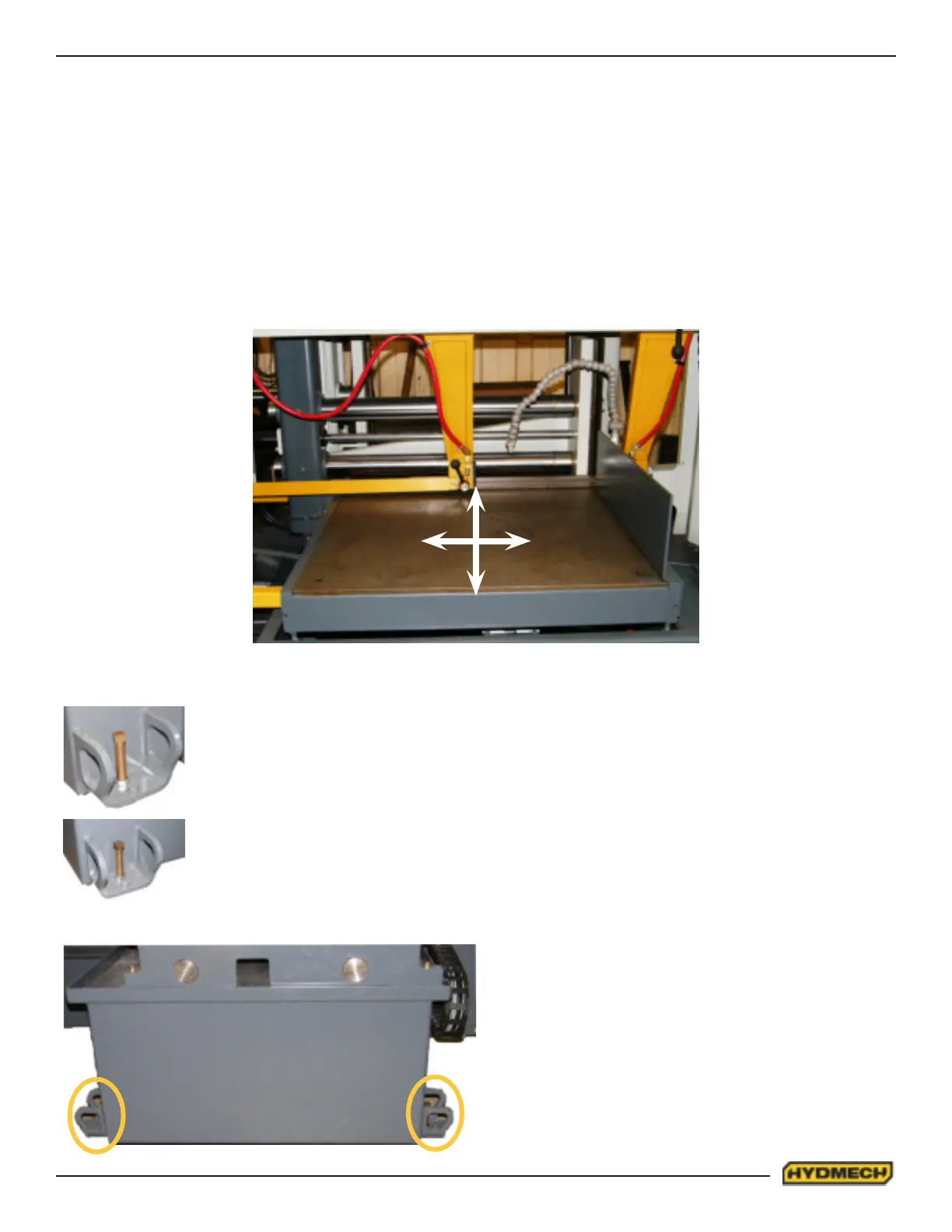

Level saw from front to rear and from side to side
Levelling screw and anchoring hole on idler side of the base
Levelling screw and anchoring hole on drive side of the base
Levelling screw and anchoring hole on rear of the base
