7.9
MIST BLADE LUBRICATION SYSTEM
This option supplies a regulated amount of lubrication to the blade. The system is operating whenever the hydraulic sys-
tem is on. To activate the mist system, connect the air supply and disconnect to deactivate the system.
The amount of lubrication can be adjusted with the dial below the oil tank.

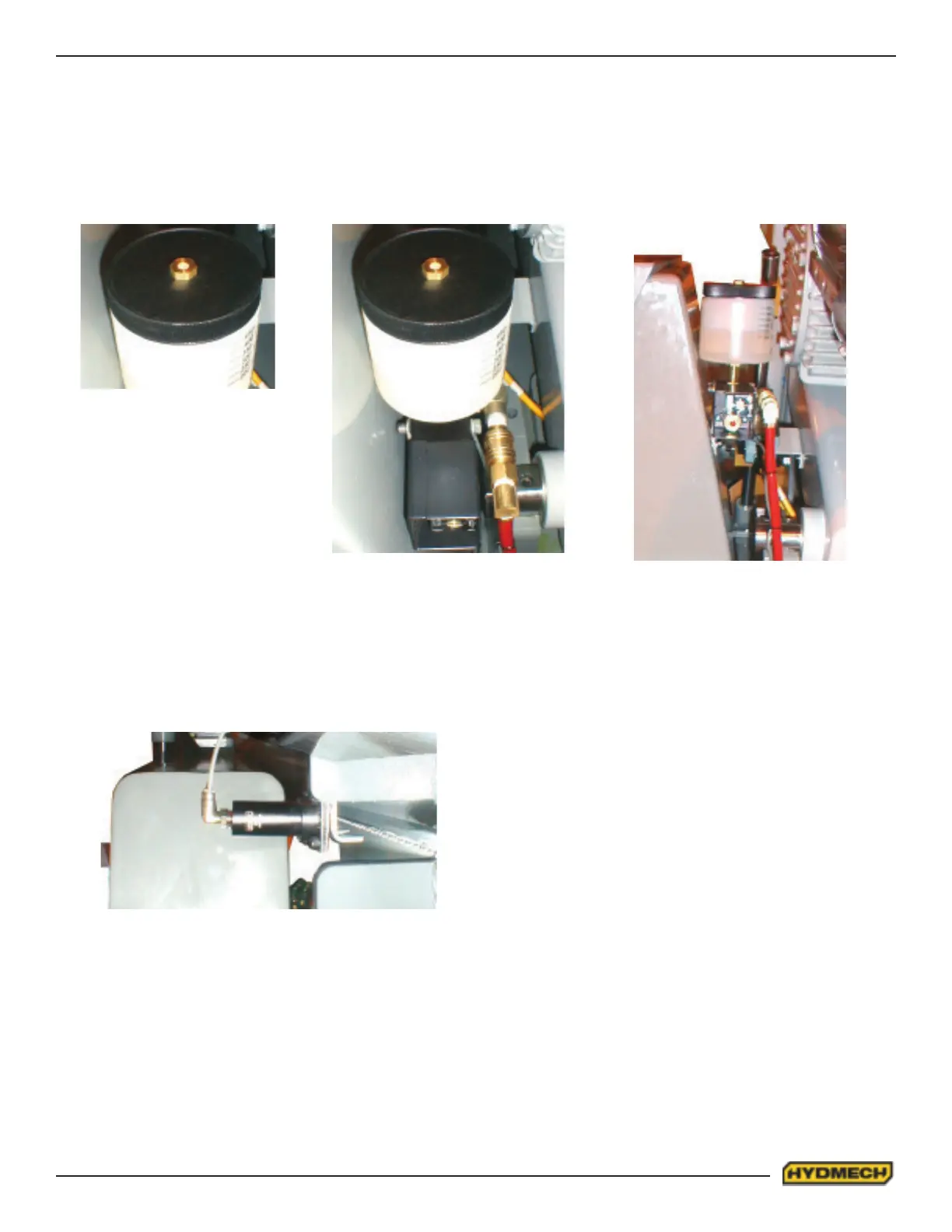

Air supply connection for the mist
lubrication system located at the
right side of the control console.
To turn the mist ow on, slide the
valve forward and to turn it off,
pull the valve back.
Flow adjustment dial for the mist
lubrication system. Rated in
drops per minute located behind
the control panel.
Application nozzle for the mist lubrication system lo-
cated beside the idler wheel door.
