Page 23
In Section „Adjustment of Control to the control signal“ you will
find an explanation of the possible settings for the Type Basic
control.
4.2 Basic Construction
The HygroMatik control Type Basic consists of a main PCB and
a display unit with icons to describe the LED.

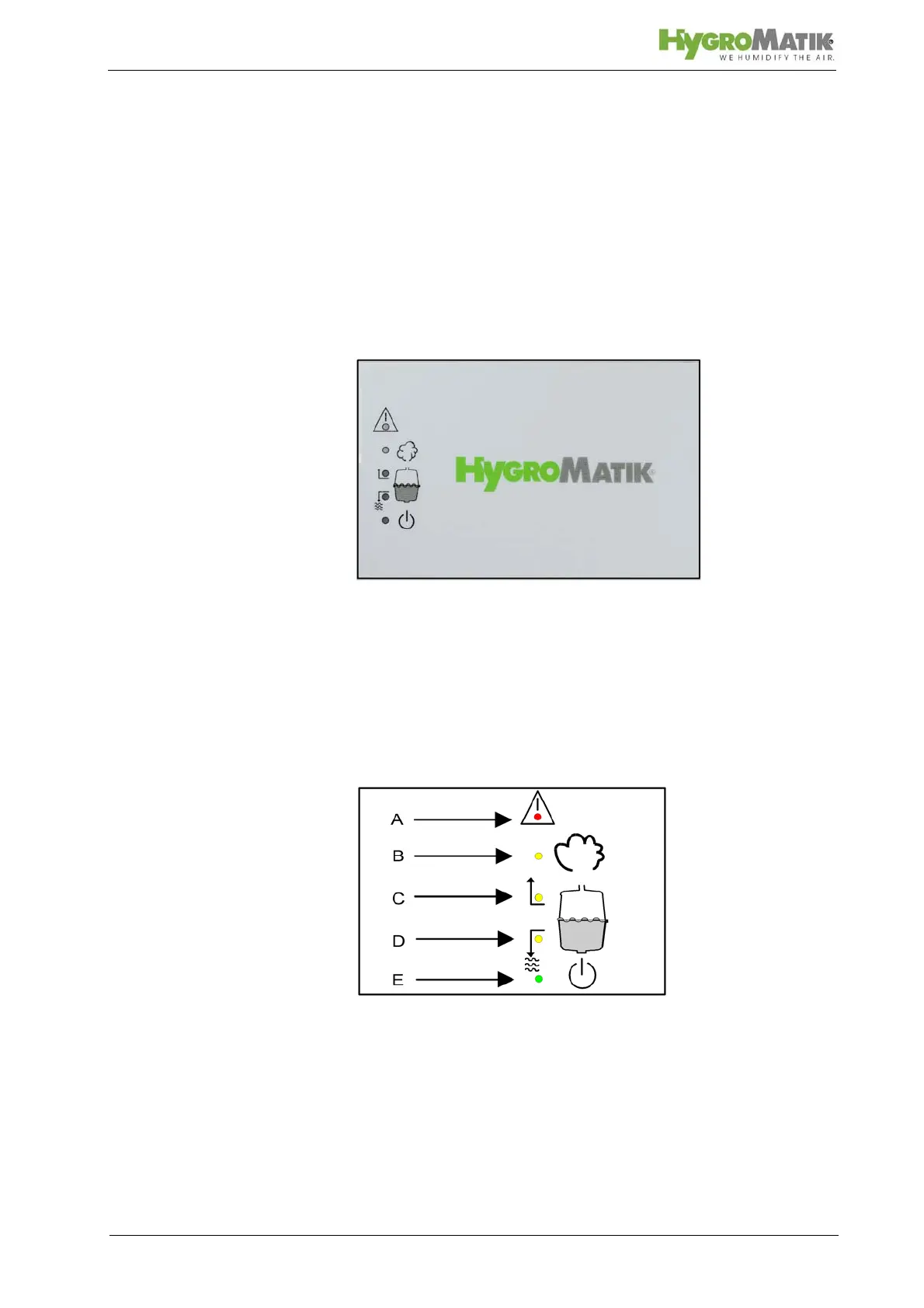

4.2.1 Basic Display Unit
Using 5 LED, the display unit of the Basic Control provides the
user with information about operational conditions and fault
messages:
A: Malfunction (red LED)
B: humidifying (yellow LED)
C: Filling (yellow LED)
D: Blow-down (yellow LED)
E: Stand-by (green LED)
