8. Twin Cylinder Units (HyLine 60-116) and
Double Units (HeaterLine 60-90)
The humidifiers type HyLine 60-116 are twin cylinder units.
Each steam cylinder is supervised by its own control. The exter-
nal control signal and the safety interlock signal have only to be
connected to the terminal block of the first cylinder. The wiring
for the signals between terminal block of cylinder one and cylin-
der two is already done ex works (please also see wiring dia-
gram S-043002).

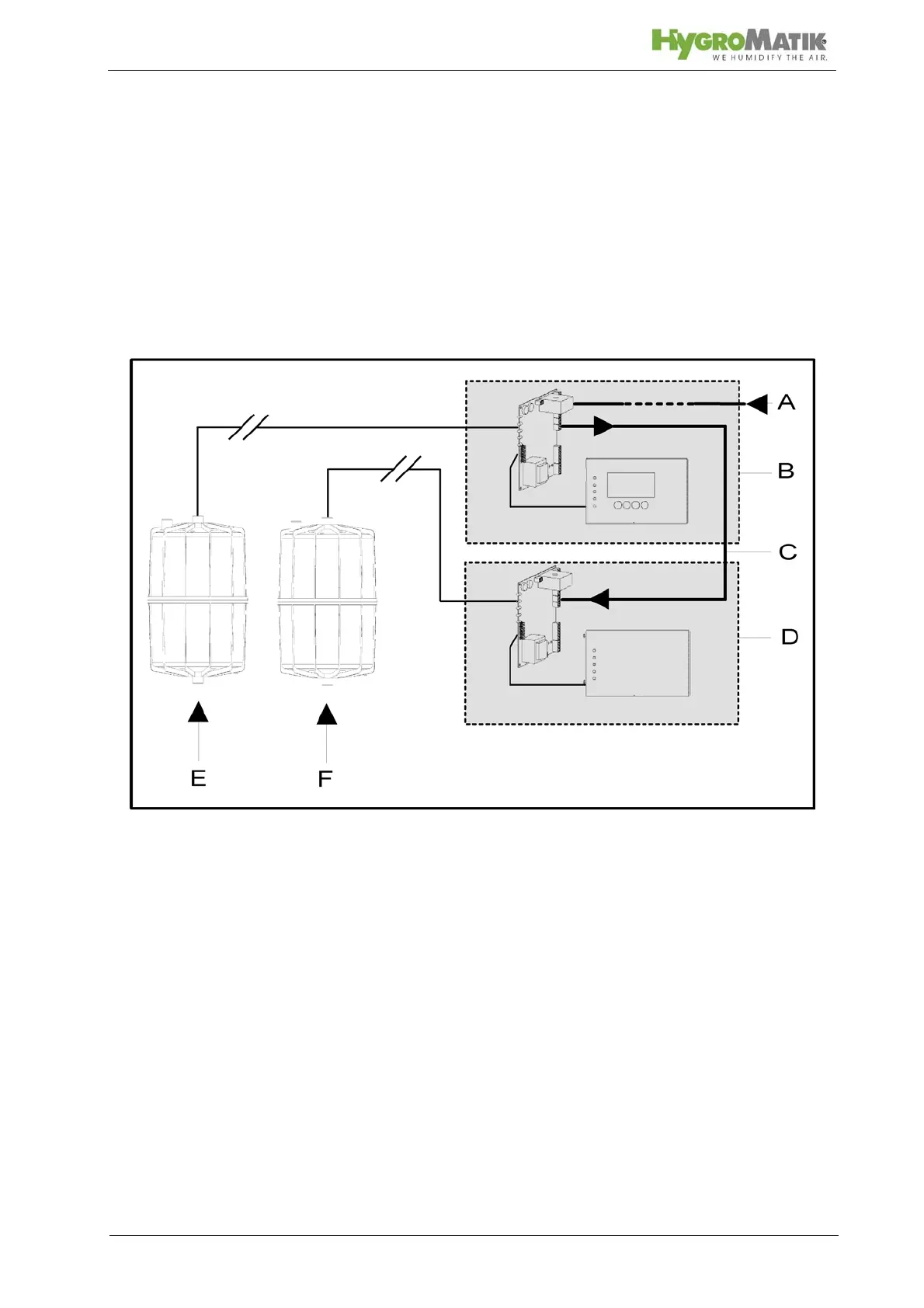

Schema twin cylinder units HyLine 60-116
A: external control signal and safety interlock signal
B: control - first cylinder
C: internal control signal for control of second cylinder
D: control - second cylinder
E: first steam cylinder
F: second steam cylinder
