Hypertec CIARA ORION HF310-G4 - Motherboard Layout

12 | P a g e

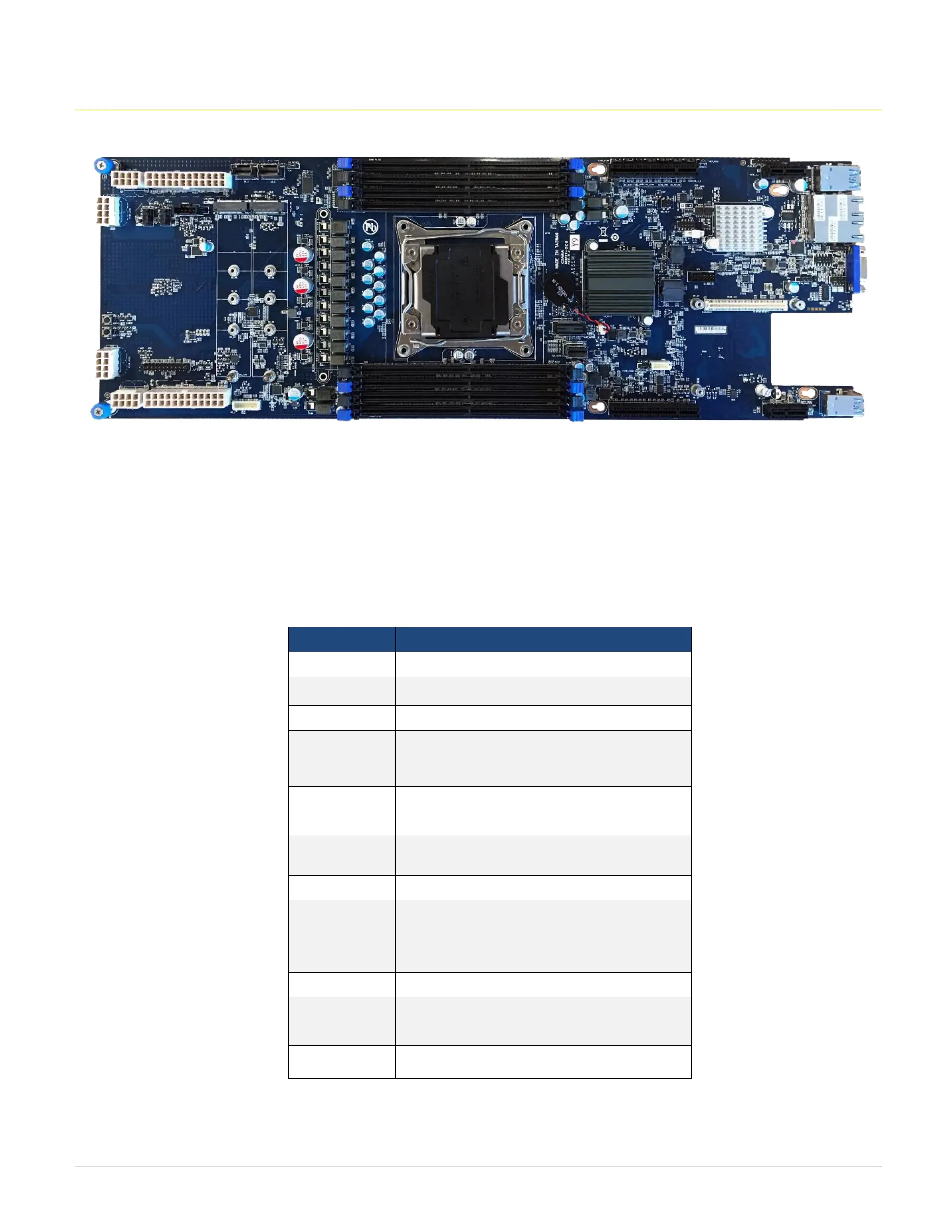

8. Motherboard Layout
Feature
Specification
Form factor
17.5”x6.65”(444.5mm x 169mm)
Processor Support
Intel Core-X 2066 Socket R4
Chipset
X299
Memory
8 x DIMM slots support (2 DIMM/channel)
Up to 128GB (8 x 16GB) DDR4 3200 MHz non-ECC
Up to 64GB (8 x 8GB) DDR4 3600 MHz non-ECC
LAN
Dual GbE LAN Intel I350
1 x Management LAN 10/100/1G
VGA / VRAM
Integrated in BMC with DDR4 128MB VRAM
1920x1200@60Hz 32bpp
BMC
ASPEED AST2500
Expansion Slot
2x PCIe 3 x16 (@Gen3 PCIe_1, PCIe_2) from CPU
1x PCIe 3 x8 (@Gen3 OCP Mezz) from CPU
2x PCIe 3 x4(@Gen3 M.2 slot)from PCH
Storage
4 x SATA III
Rear IO Connector
1 x VGA, 2x USB3.0
2 x 1G LAN,1 x MLAN
Internal Connector
Front panel connector
