29.24 Launching Java KVM Viewer

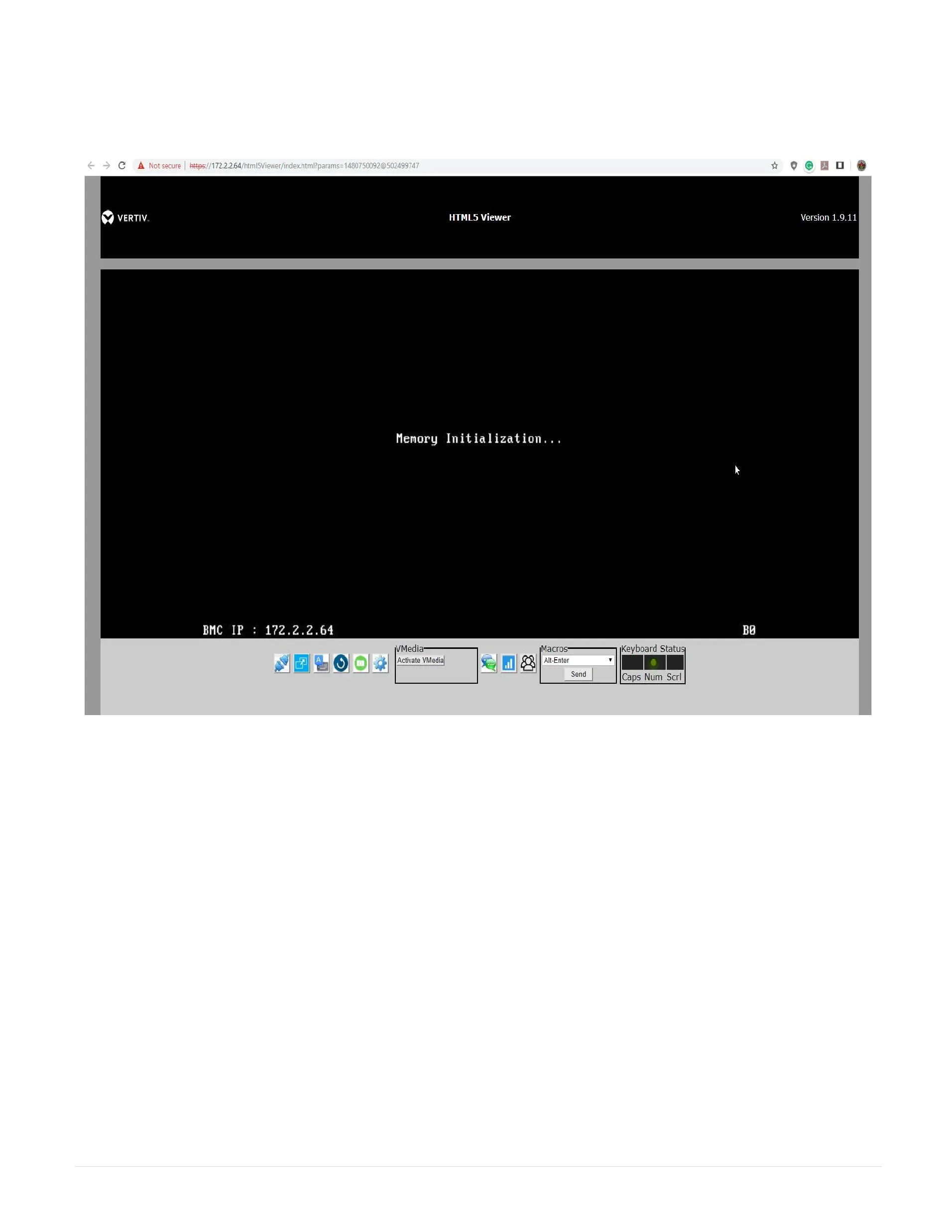

Click Launch HTML5 vKVM Viewer to launch the redirection console and manage the server remotely. After clicking the button, a console appears as below.
