Hypertec CIARA ORION HF310-G4 - Replacing GPU

31 | P a g e
19. Replacing GPU
This section provides information on how to replace the GPU in the Orion HF310-G4 system, in the PCIE 1 expansion slot.

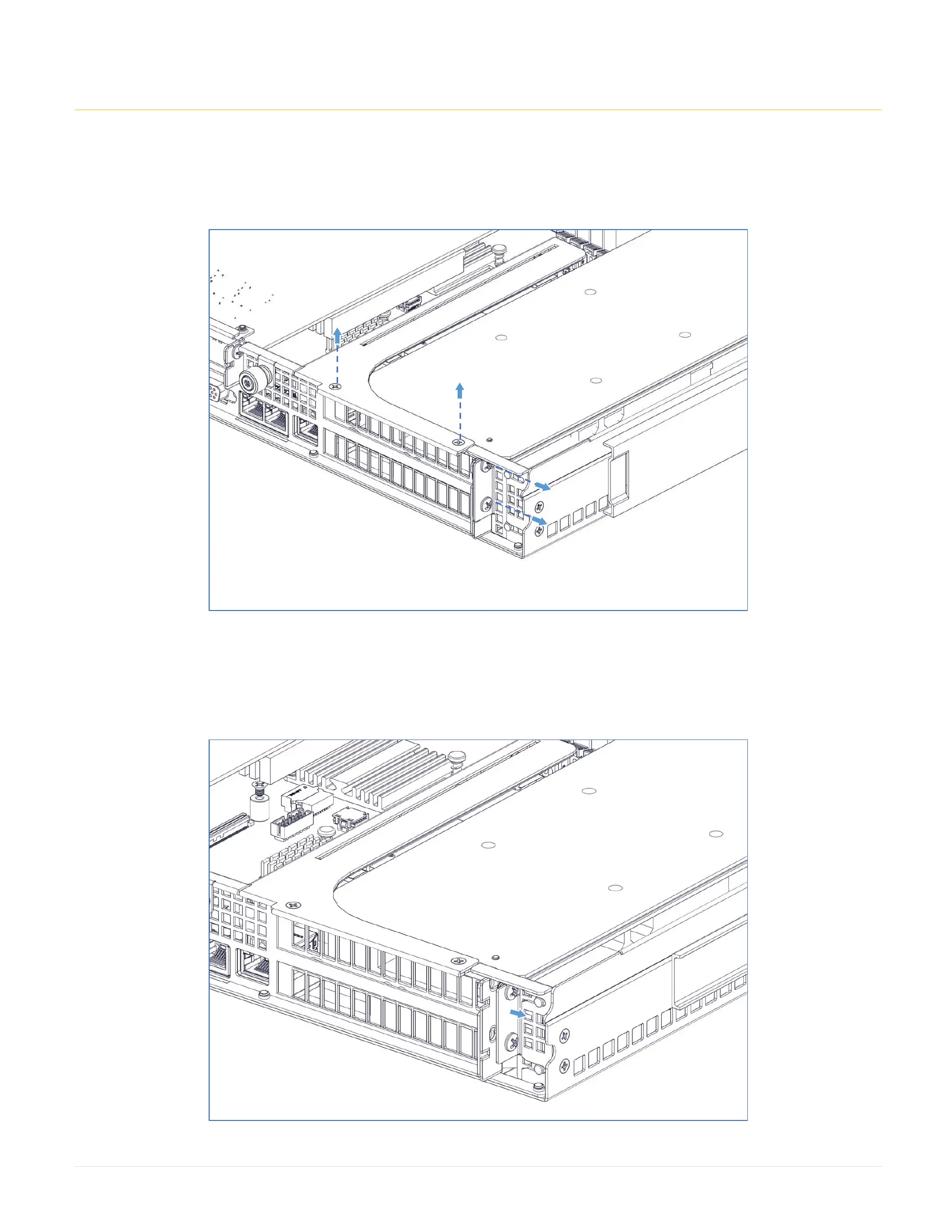

Step 1: Remove the power cables, and then unscrew the four screws as illustrated below.
Step 2: Remove the plate.
