Hypertec CIARA ORION HF310-G4 - 9 Detailed Motherboard Layout

13 | P a g e

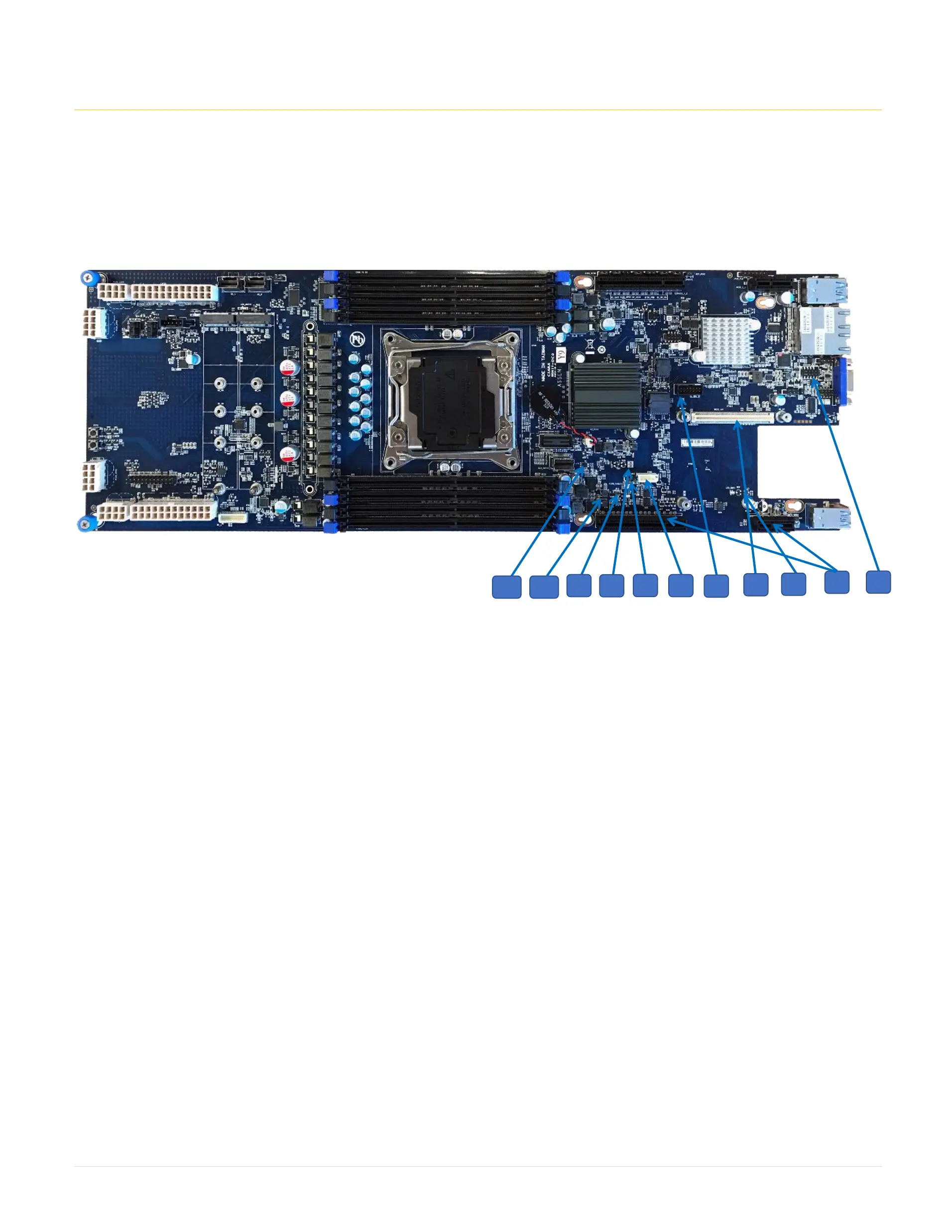

9. Detailed Motherboard Layout
1. COM 1
2. OCP PCIE 3.0 X8
3. BMC LED
4. PCIE_2 PCIE 3.0 X16
5. TPM (TRUSTED PLATFORM MODULE)
6. IPMB (INTELLIGENT PLATFORM MANAGEMENT BUS)
7. CLEAR CMOS
8. FIVR FAULT LED
9. CPU THERMALTRIP LED
10. PROCESSOR HOT LED
11. DEBUG LED
12. 4X SATA III (SFF-8654)
13. CPU ERROR LED
14. BACKPLANE PANEL HEADER
15. FRONT PANEL HEADER
16. RESET BUTTON
17. POWER BUTTON
18. SYSTEM FAN HEADER
19. PMBUS HEADER
20. CPU FAN HEADER
21. M.2 PORT 1 LED ACTIVITY
22. M.2 PORT 1
23. U.2 PORTS
24. M.2 PORT 2 LED ACTIVITY
25. M.2 PORT 2
26. BIOS RECOVERY
27. BOOT SAVE MODE
28. CASE OPEN
29. ME RECOVERY
30. BIOS PASSWORD CLEAR
31. OVERCLOCKING OVER VOLTAGE ENABLE
32. ME UPDATE
33. NCSI SWITCH
34. SW RAID KEY
35. GBT DEBUG
36. CPU CATERROR LED
37. PCIE_1 PCIE 3.0 X16
38. MEMORY ERROR LED
39. Q CODE HEADER
40. VGA PORT
41. JTAG BMC HEADER
1
2
3
4
5
6
7
8
9
10
11
