6

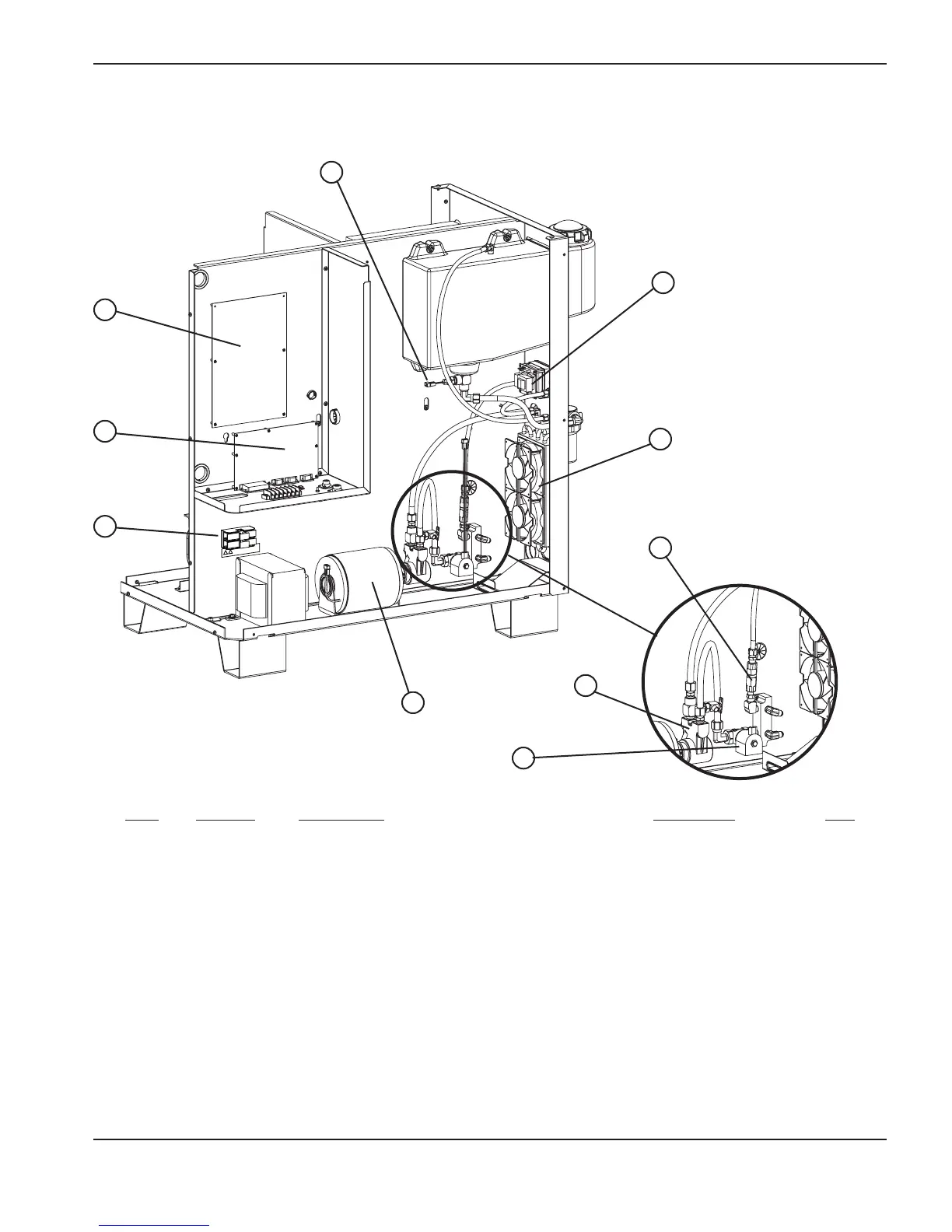

PARTS LIST
HPR130 Manual Gas Instruction Manual 6-5
Power supply
Part
Item Number Description Designator Qty.
1 008551* Fuse: 7.5 amp, 600 volt F1, F2 2
008709** Fuse: 20 amp, 500 volt F1, F2 2
2 041909 Control PCB PCB3 1
3 041802 Power distribution PCB PCB2 1
4 109393 Temperature sensor T2 1
5 129793 Flow switch assembly FLS 1
6 027978 Heat exchanger assembly 1
027185 4" fan 2
7 129995 Solenoid valve assembly CLT SOL 1
006075 Check valve: 1/4" FPT 1
8 228170 Kit: pump with clamp 1
9 006046 Solenoid valve assembly: 3/8", 240 volt CLT SOL 1
10 128385 Kit: motor with clamp 1
* 380, 400, 440, 480 and 600 volt power supplies
** 200/208 and 240 volt power supplies
1
2
3
5
6
7
8
9
10
4
