0 Manual Gas
Instruction Manual
6

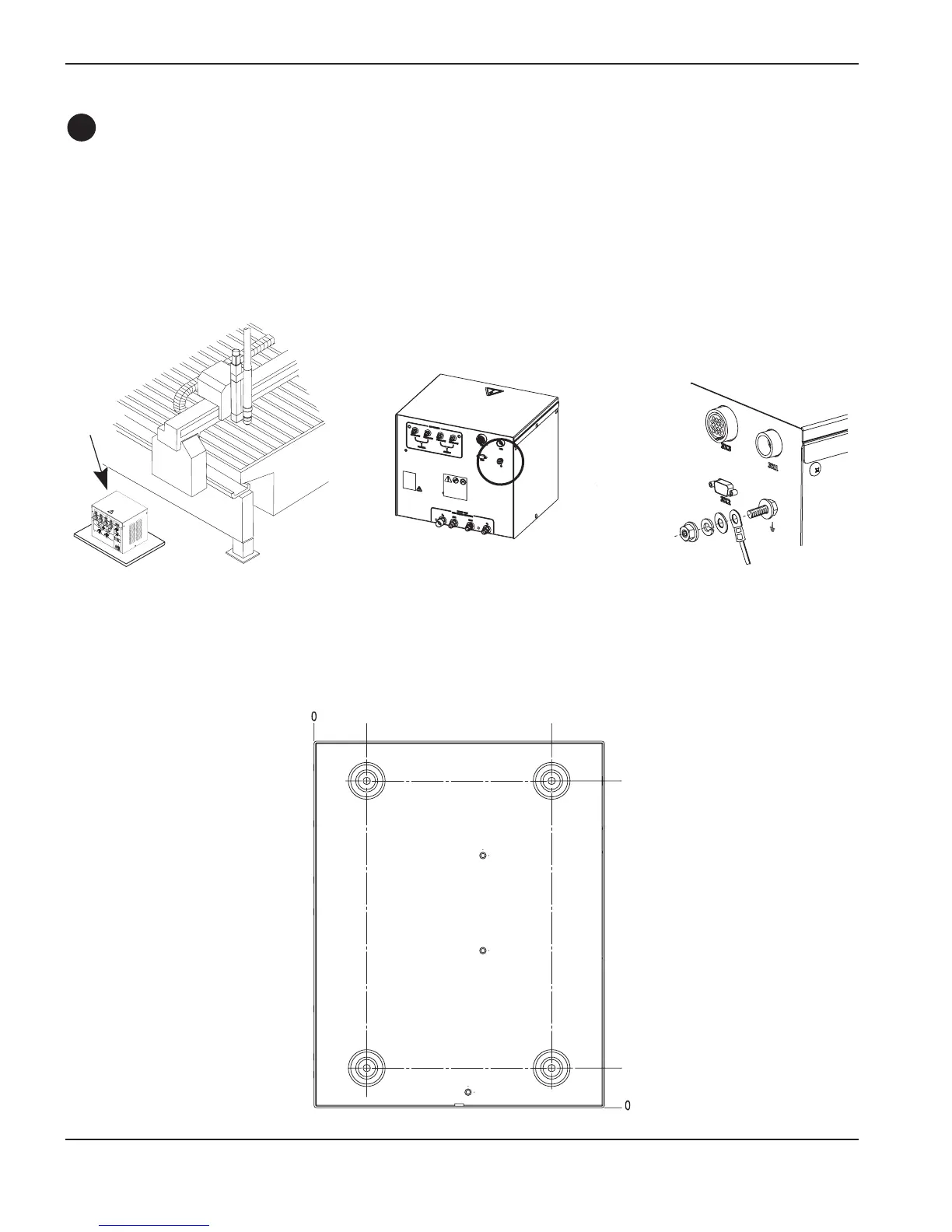

Placement of the gas console
•
Mount
the gas console near the cutting t
able. Allow room to remove the top and right side cover for servicing.
Preferred orientation is shown in the figure below. T
he maximum length of cables between the power supply and
gas console is 75 m (250 ft). The maximum length of cables and hoses between the gas console and the off-
valve assembly is 20 m (65 ft).
C
Preferred gas console orientation
38.1 mm
1.5"
314.5 mm
12.38"
228.6 mm
9.0"
50.8 mm
2.0"
Gas console grounding
61
63
