Hypertherm HPR130

SPECIFICATIONS
HPR130 Manual Gas Instruction Manual 2-9
6
Off-valve – 129816

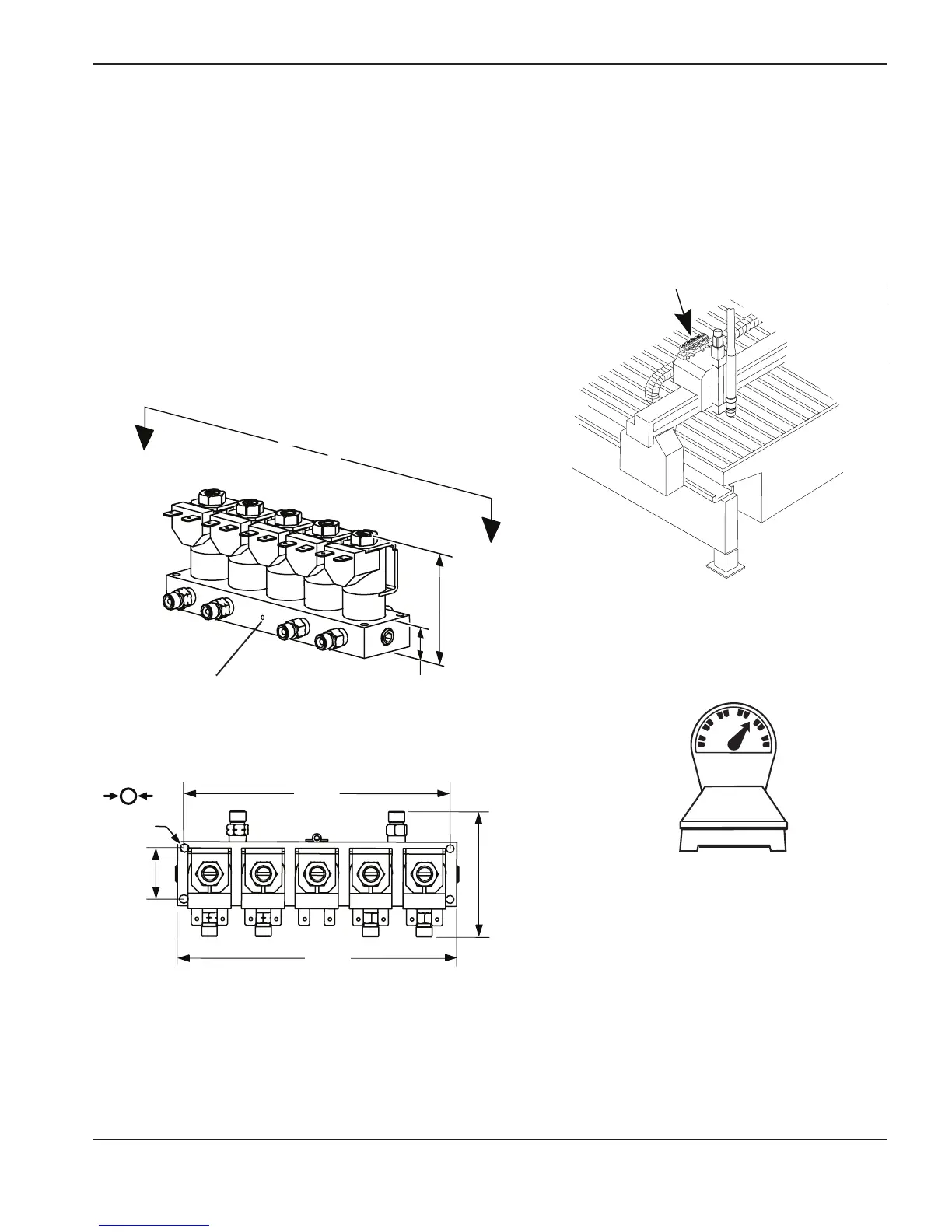

• Maximum cable length from the off-valve to the torch lifter station is 1.8 m (6 ft).
• Mount the off-valve assembly to the torch carriage on larger tables. On smaller tables it can be mounted to a
bracket just above the bridge.
• The vent hole on the manifold must be kept clear at all times.
A
A
A - A
70 mm
2.75"
165 mm
6.5"
30 mm
1.18"
4.7 mm
0.187"
157 mm
6.18"
76 mm
3"
19 mm
0.75"
1.1 kg
2.5 lb
Vent hole:
Do not block
