INSTALLATION
HPR400XD Manual Gas Instruction Manual 3-41

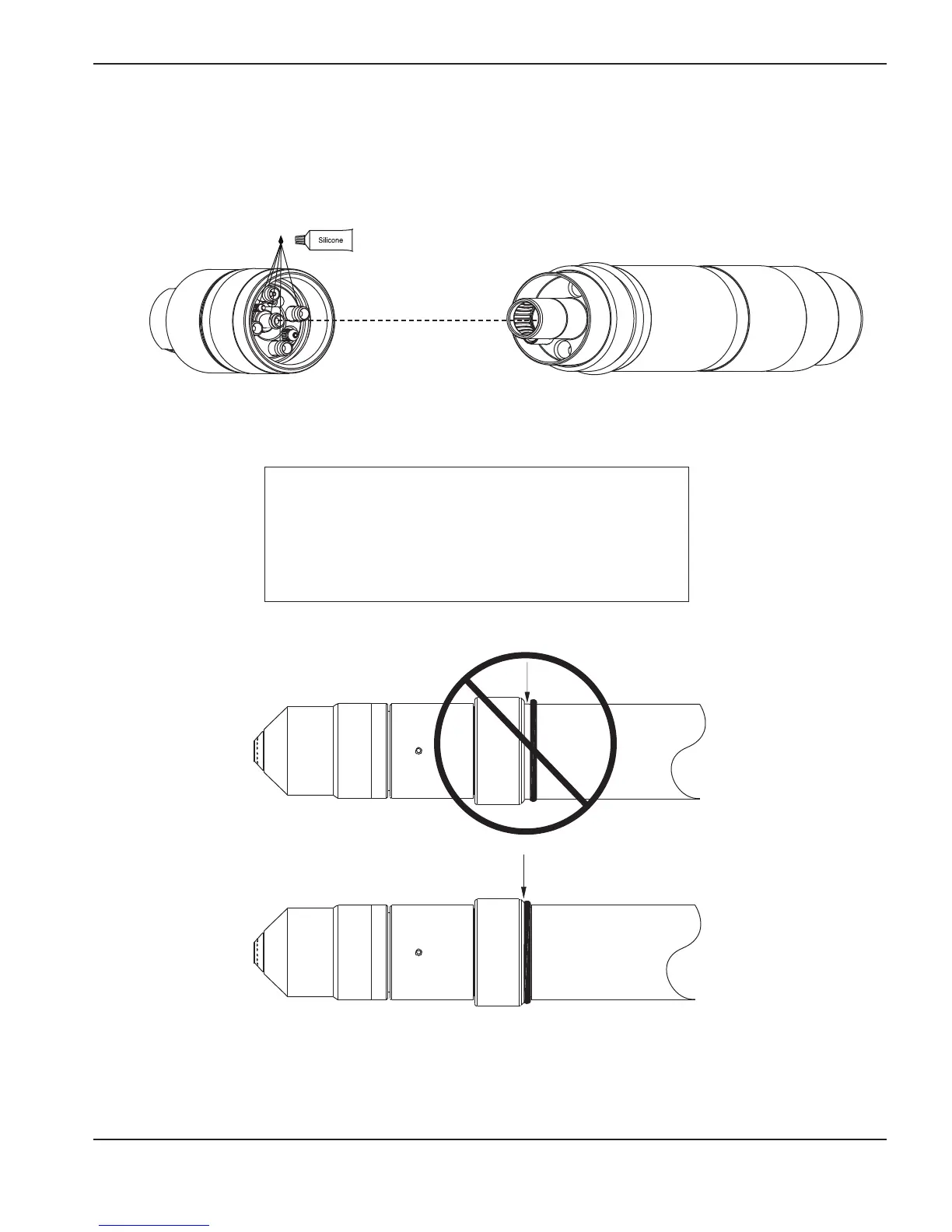

Connect the torch to the quick-disconnect
Installation note
Align the torch body to the torch leads and secure by
screwing completely together. Be certain that there is no
space between the torch body and the o-ring on the torch
leads. See also Torch connections earlier in this section for
torch lead connections to ignition console.
Apply a thin film of silicone
lubricant to each o-ring
Torch body
220706
Torch quick-disconnect receptacle
220705
