Hypertherm HyPerformance HPR400XD User Manual

INSTALLATION
3-14 HPR400XD Manual Gas Instruction Manual

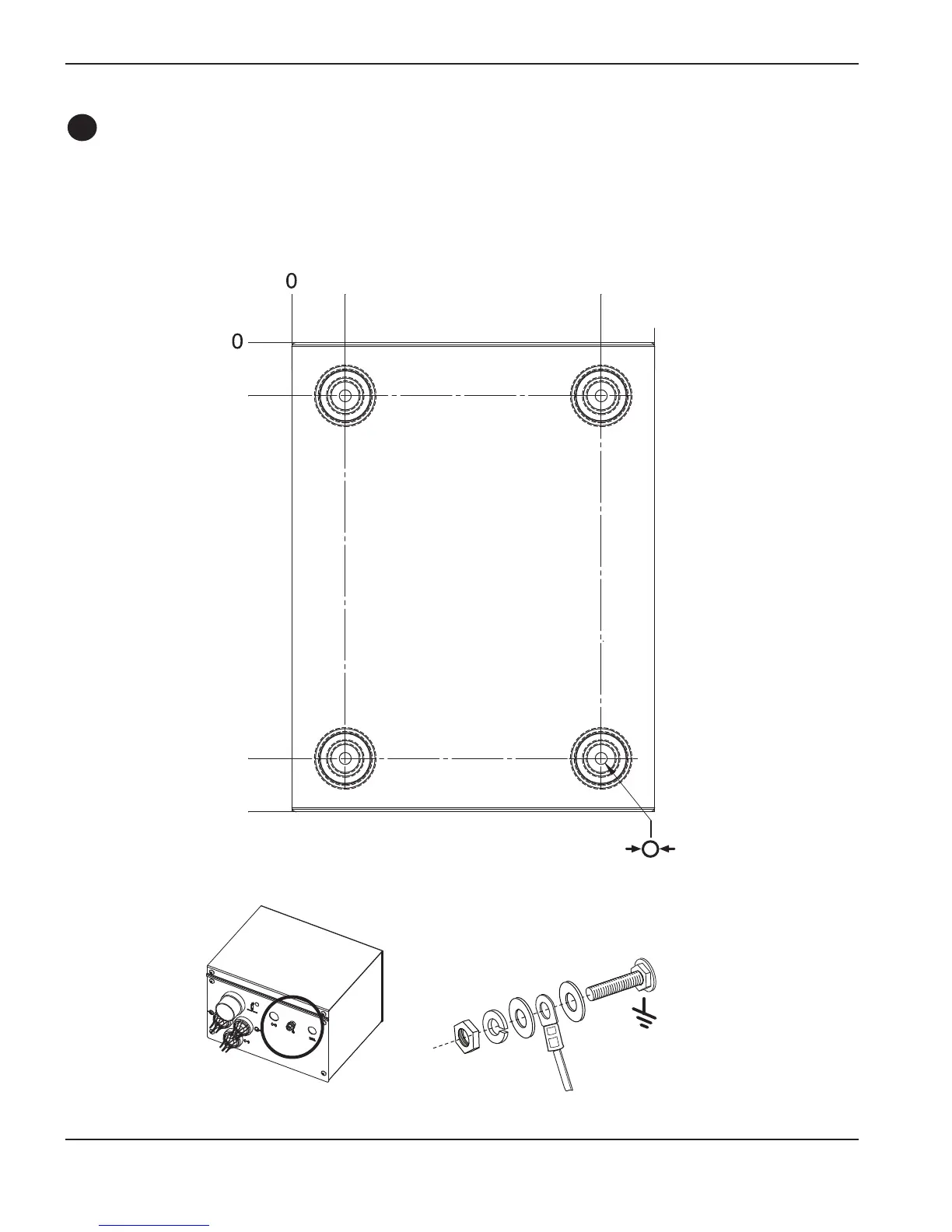

Install the ignition console
• Mount the ignition console in a vertical or horizontal position.
• Allow room to remove the top for servicing.
B
Ignition console grounding
7 mm
.028"
(4 places)
32 mm
1.25"
32 mm
1.25"
184 mm
7.25"
279 mm
11.00"
248 mm
9.75"
216 mm
8.50"
