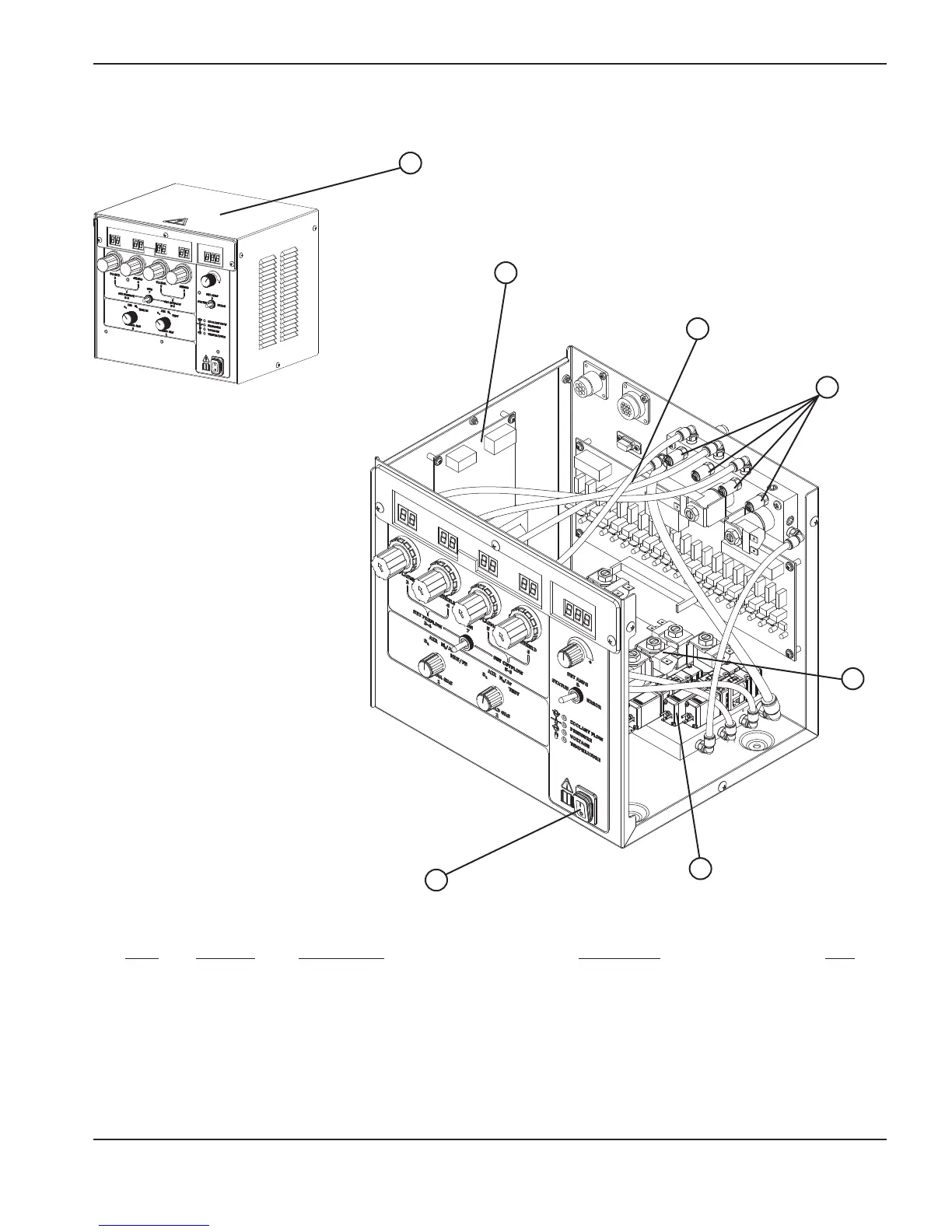

PARTS LIST
HPR400XD Manual Gas Instruction Manual 6-9
Gas console
Part
Item Number Description Designator Qty.
1 078532 Gas Console
2 041805 Power distribution PCB PCB1 1
3 041822 Valve driver PCB PCB3 1
4 005263 Pressure sensor PT1-PT4 4
5 006109 Solenoid valve SV2, SV3, SV4, SV6, SV8-SV14 11
006112 Replacement solenoid coil
6 006136 Solenoid valve SV1, SV5, SV7 3
7 005262 Illuminated power switch SW1 1
1
2
3
5
6
4
7
