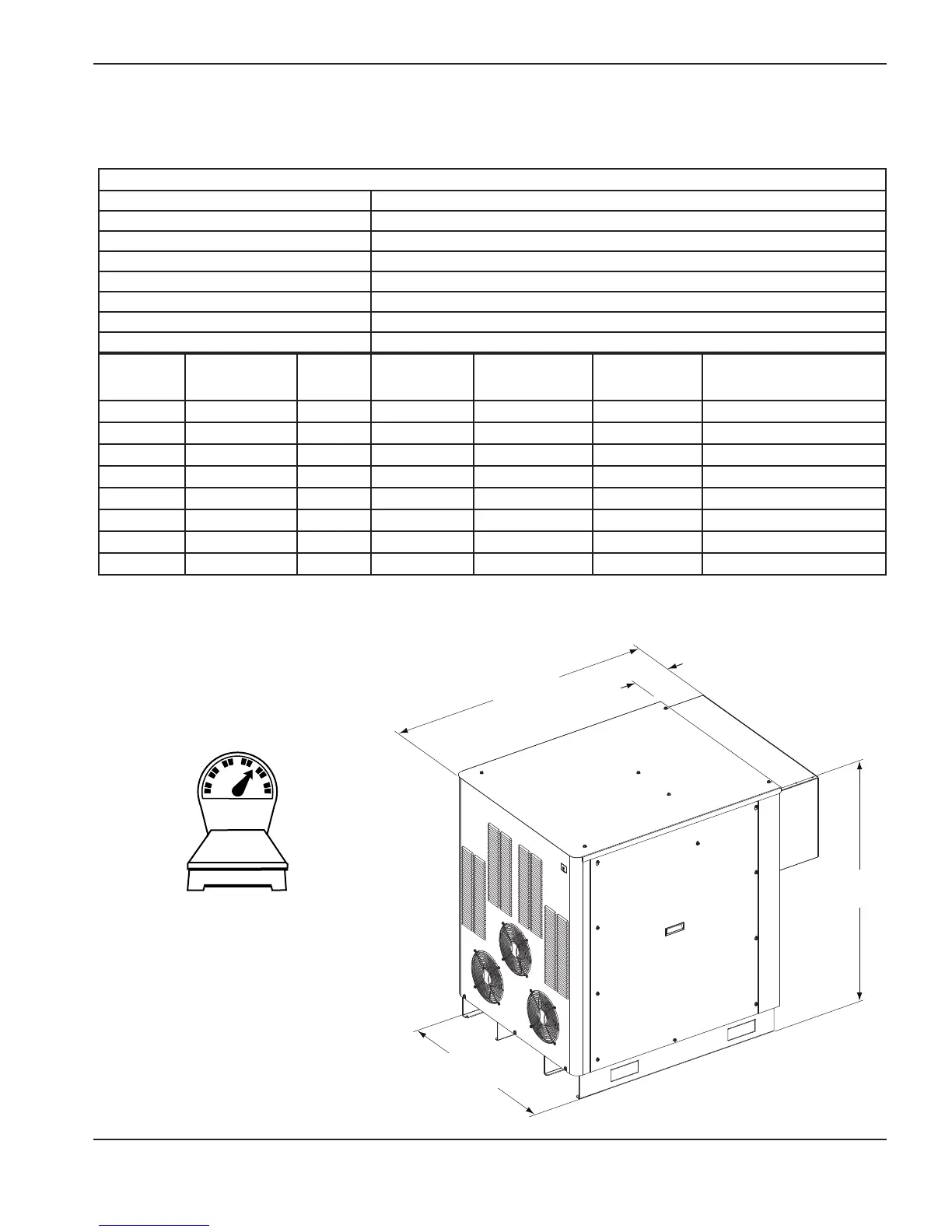

SPECIFICATIONS
HPR400XD Manual Gas Instruction Manual 2-5
Power supply
229 mm
9.00"
1270 mm
50.00"
1175 mm
46.25"
870 mm
34.25"
851 kg
1877 lb
General
Maximum OCV (U
0
) 360 VDC
Maximum output current (I
2
) 400 Amps
Output voltage (U
2
) 50 – 200 VDC
Duty cycle rating (X) 100% @ 80 kw, 40° C (104° F)
Ambient temperature/Duty cycle Power supplies will operate between -10° C and +40° C (+14° and 104° F)
Power factor(cosϕ)
0.98 @ 400 ADC output
Cooling Forced air (Class F)
Insulation Class H
Part
number
AC Voltage
(U
1
)
Phase Frequency
(Hz)
Amperage
(I
1
)
Regulatory
approval
Power kW (+/- 10%)
(U
1
x I
1
x 1.73)
078523 200/208 3 50/60 262/252 CSA 90.6
078524 220 3 50/60 238 CSA 90.6
078525 240 3 60 219 CSA 90.6
078526 380 3 50 138 CCC 90.6
078527 400 3 50 131 CE/GOST-R 90.6
078528 440 3 50/60 120 CSA 90.6
078529 480 3 60 110 CSA 90.6
078530 600 3 60 88 CSA 90.6
Approximate weight
of the heaviest unit
