Hypertherm HyPerformance HPR400XD User Manual

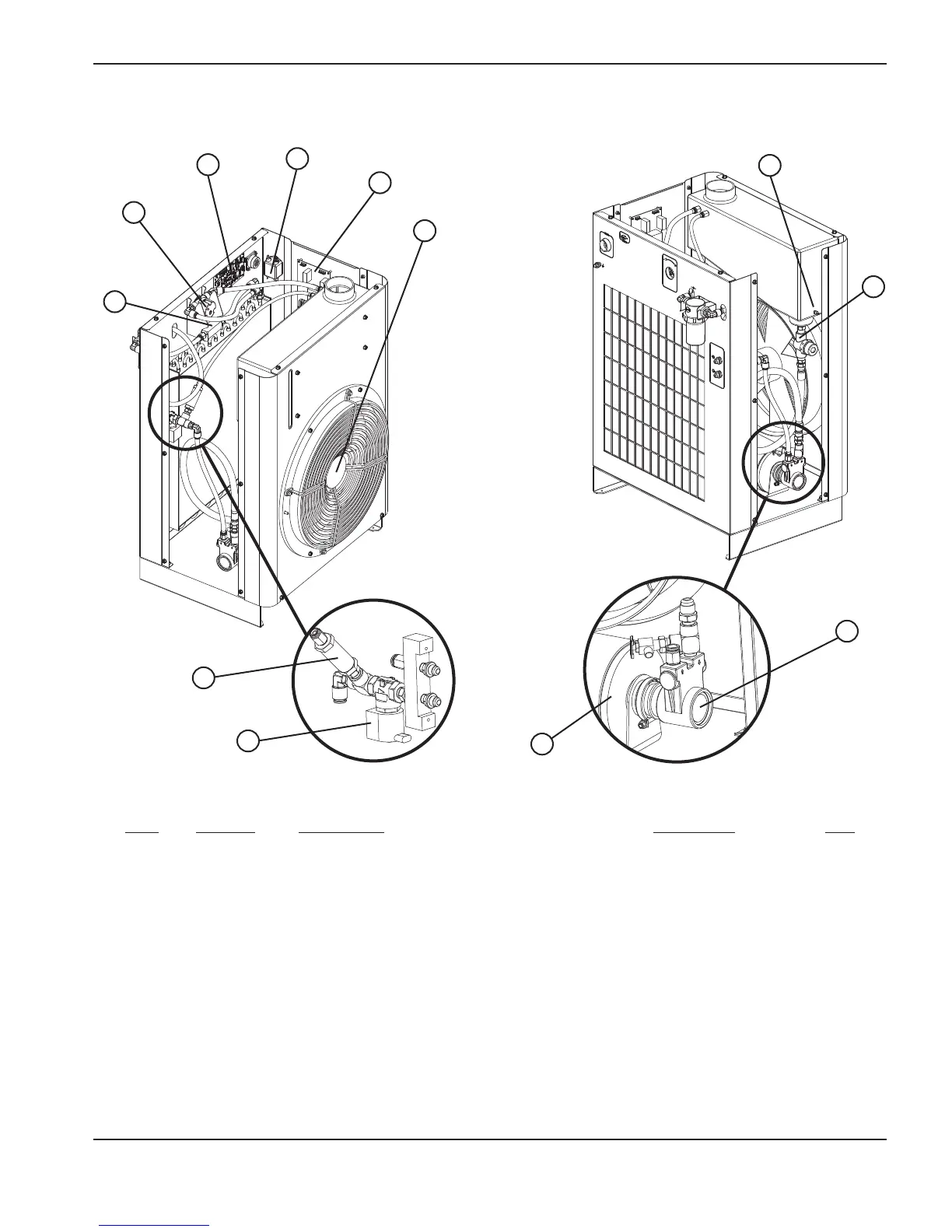

PARTS LIST
HPR400XD Manual Gas Instruction Manual 6-7
4
5
7
6
2
3
Cooler
Part
Item Number Description Designator Qty.
1 006113 Check valve 1
2 229235 Flow sensor: 23 lpm (6 gpm) FS1 1
3 141033 PCB: Cooler sensor 1
4 009040 EMI filter: 250 VAC, 2 amp, 1 phase 1
5 041897 PCB: Console power distribution 1
008756 Fuse: 5 amp, 250 volt (slow-blow) F1 1
6 027658 Fan: 240 volt, 240 watt, 2910 cfm 1
7 229224 Temperature sensor TS1 1
8 027926 Filter assembly: 1/2”, NPT, low profile 1
9 228171 Kit: Pump with clamp 1
10 228230 Kit: Motor with clamp, 1/3 hp 1
11 229229 Solenoid valve 1
12 006132 Check valve (bypass valve): 1/4" NPT, 200 psi 1
10
11
12
9
1
8
