Hypertherm HyPerformance HPR400XD User Manual

INSTALLATION
HPR400XD Manual Gas Instruction Manual 3-9

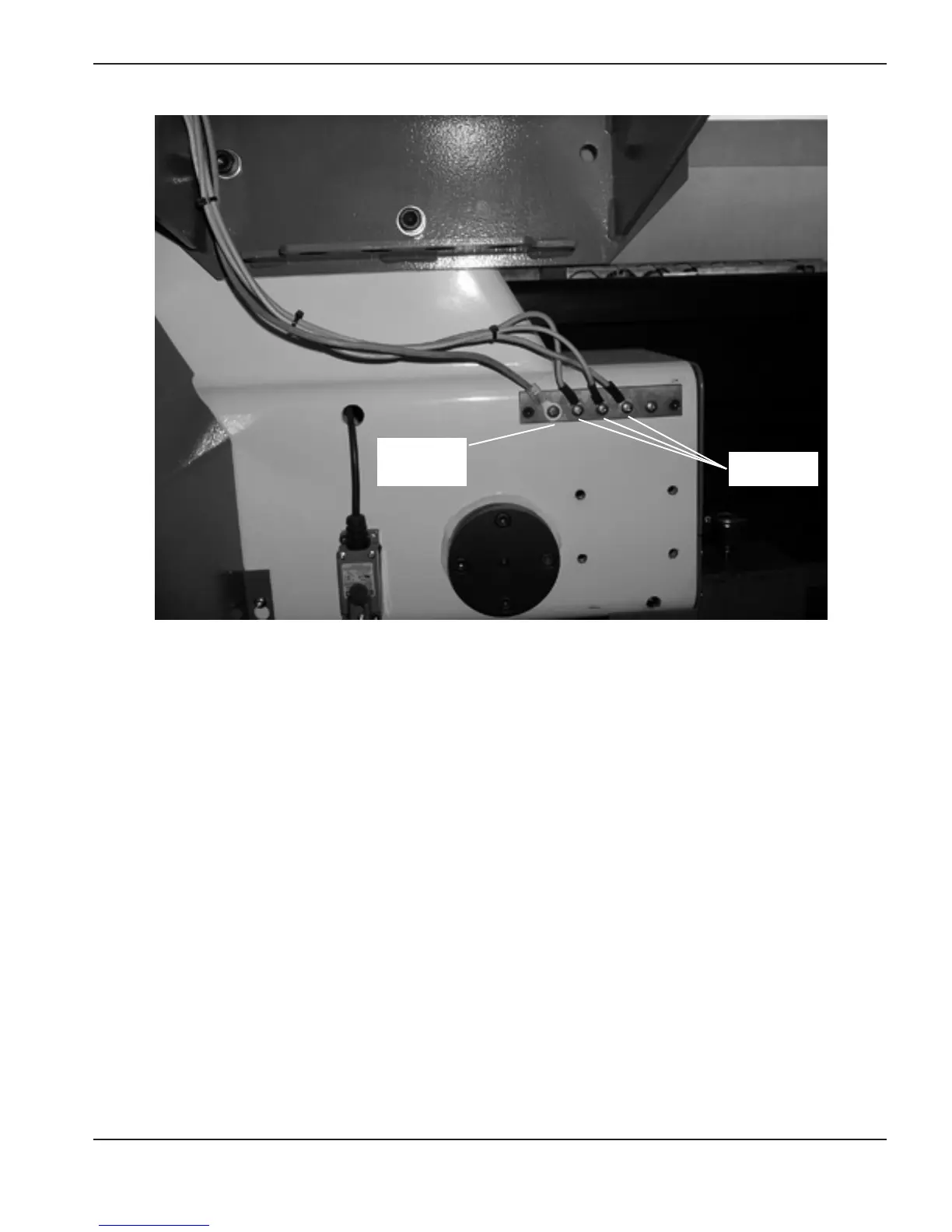

Example of a good gantry ground bus. It is bolted to the gantry, close to the motor. All of the individual
ground cables from the components mounted on the gantry go to the bus except those from the RHF
console* and the torch holder. A single heavy cable then goes from the gantry ground bus to the
ground bus bolted to the table.
* Applies to systems that use a remote high frequency (RHF) console
Component
ground cables
Cable to ground
bus on the
cutting table
