INSTALLATION
HPR400XD Manual Gas Instruction Manual 3-17

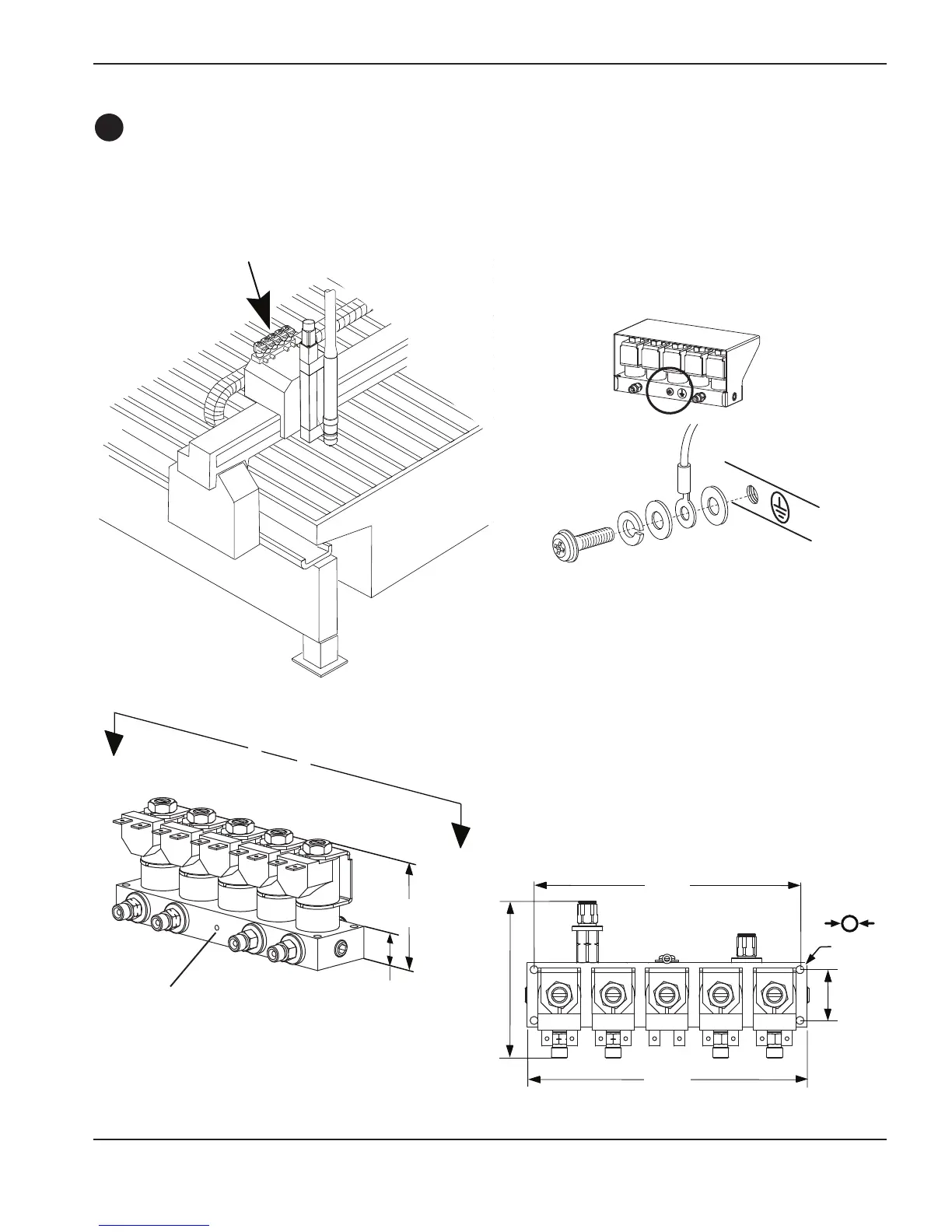

Install the off-valve
• Mount the off-valve assembly near the torch lifter station. The maximum length of the gas hoses between the
off-valve assembly and the torch is 1.8 m (6 ft).
D
A - A
A
A
4.7 mm
0.187"
157 mm
6.18"
Off-valve grounding
Vent hole:
Do not block
70 mm
2.75"
19 mm
0.75"
30 mm
1.18"
92 mm
3.62"
165 mm
6.5"
