INSTALLATION
3-38 HPR400XD Manual Gas Instruction Manual

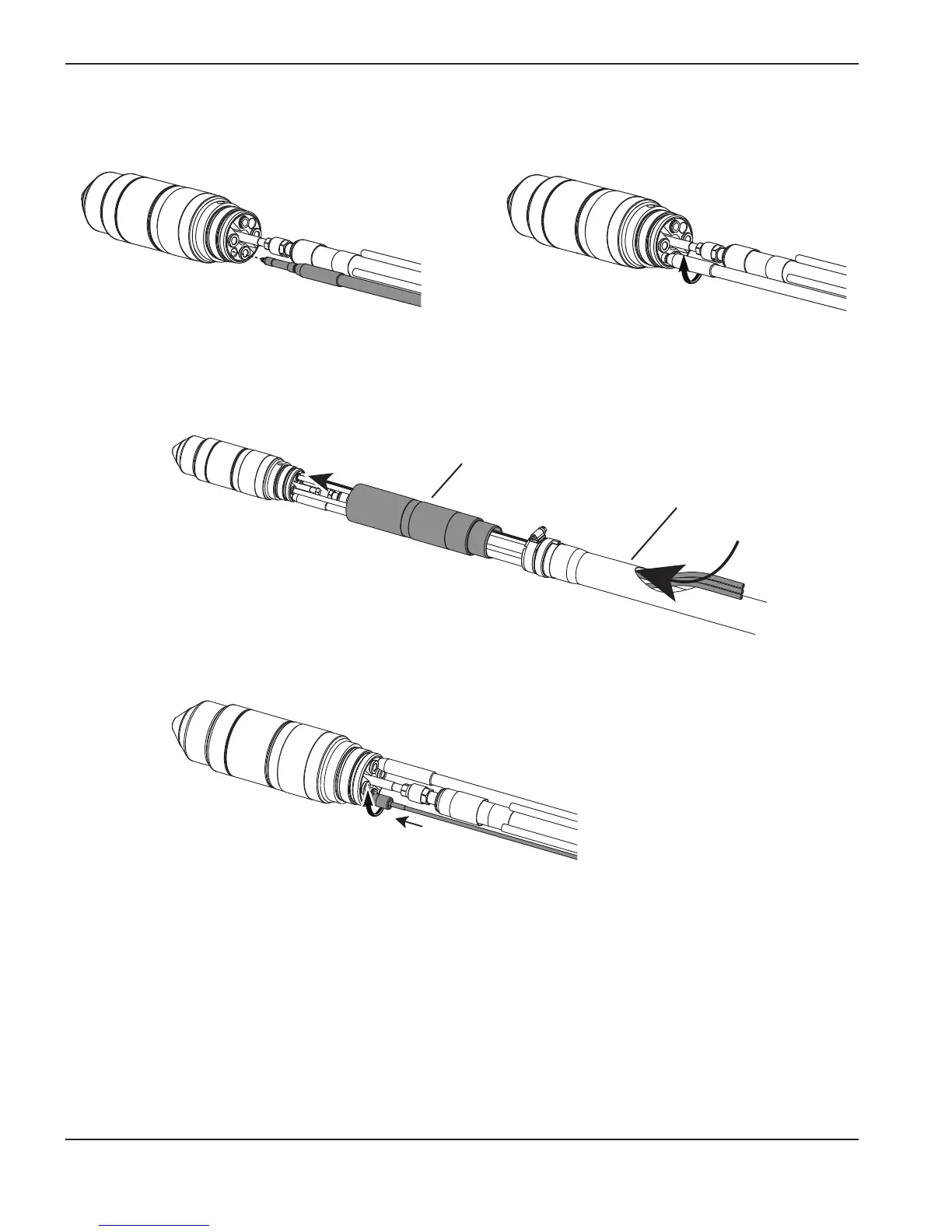

5. Connect the pilot arc lead (yellow). Insert the connector into the torch receptacle and turn it by hand until it is tight.
6. Connect the optional ohmic contact wire.
6a. Route the ohmic contact wire through the opening in the braided cover and the torch sleeve.
Braided cover
Sleeve
6b. Insert the connector into the torch receptacle and turn it by hand until it is tight.
To Next Page
