Installation

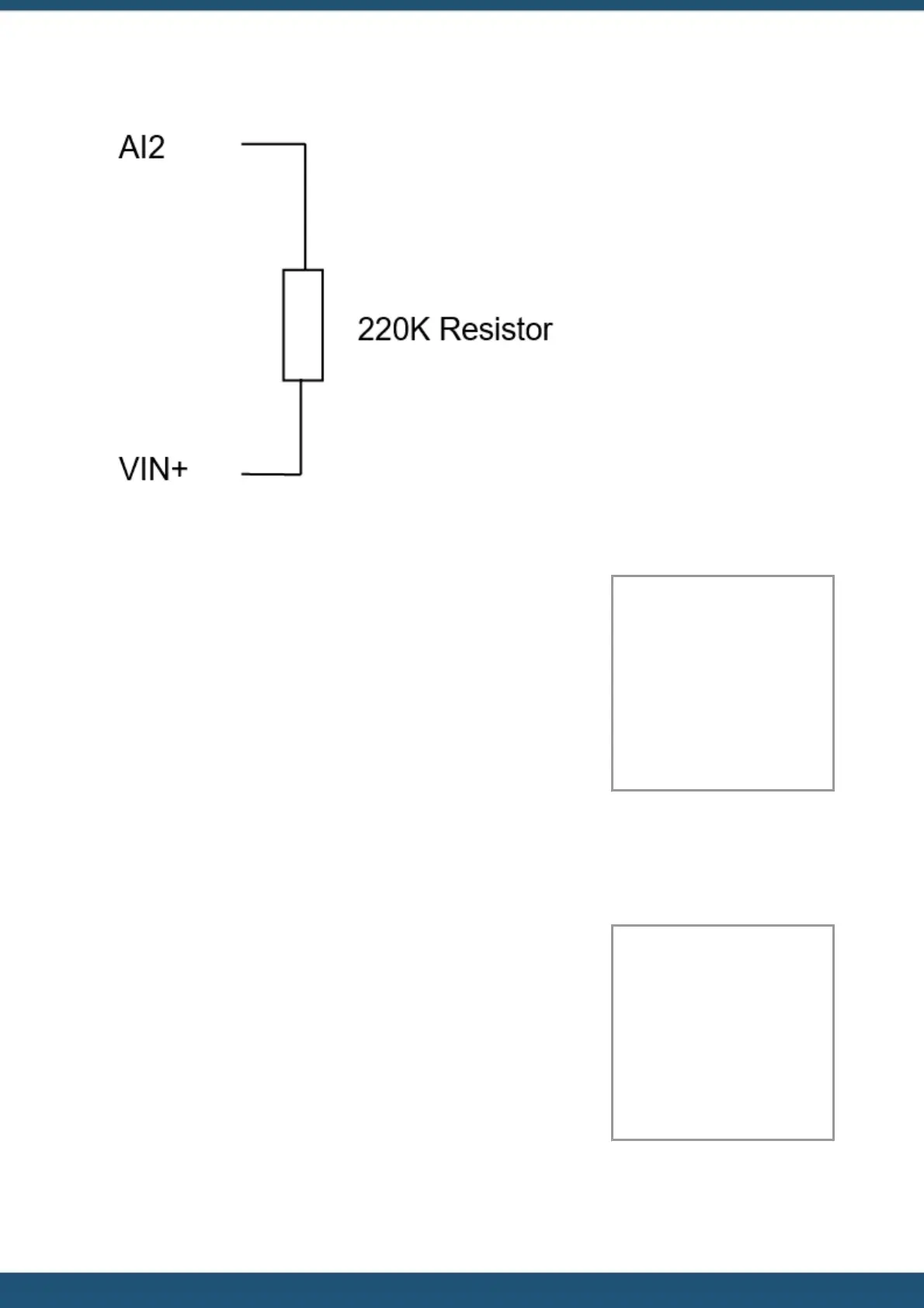

Note: The analogue input’s current selection jumper should be disconnected or the voltage measured will be close to zero.
No damage will occur however.
The sensor should be configured like the example shown below. In this
example, analogue input 2 is used. The voltage is averaged and the result
logged every 60 minutes.
Name: Batt Volts
Source: 2. Analog In 2
Process Mode: Period
Average
Multiplier: 0.0031
Offset: 0.0000
Log Rate: 60 mins
2.5.5.2 PCB Version 1.2
To measure the external supply directly with the V1.2 PCB does not require an analogue source. The voltage is measured
internally, this frees the analogue input.
The sensor should be configured like the example shown below. In this
example, the source is set to option 13 Supply. The voltage is averaged and the
result logged every 60 minutes. A multiplier of 0.01 is used to convert to volts.
Name: Batt Volts
Source: 13. Supply
Process Mode: Period
Average
Multiplier: 0.01
Offset: 0.0000
Log Rate: 60 mins
