HySecurity SlideSmart DCS 15 - Setting the User Relay Function in the Installer Menu

Installing a MagLock or Solenoid Lock
Revision D Reference 6-5
Setting the User Relay Function in the
Installer Menu
5. Enter the Installer Menu and set the User 1
Relay to Function 6 - GATE LOCK OUTPUT.
HYSECURITY
GATE CLOSED
OPEN
CLOSE
STOP
MENU
RESET
PREV
NEXT
SELECT
CT 0 (OFF)
CLOSE TIMER
OPEN
CLOSE
STOP
MENU
RESET
PREV
NEXT
SELECT
RL 6
GATE LOCK OUTPUT
OPEN
CLOSE
STOP
MENU
RESET
PREV
NEXT
SELECT

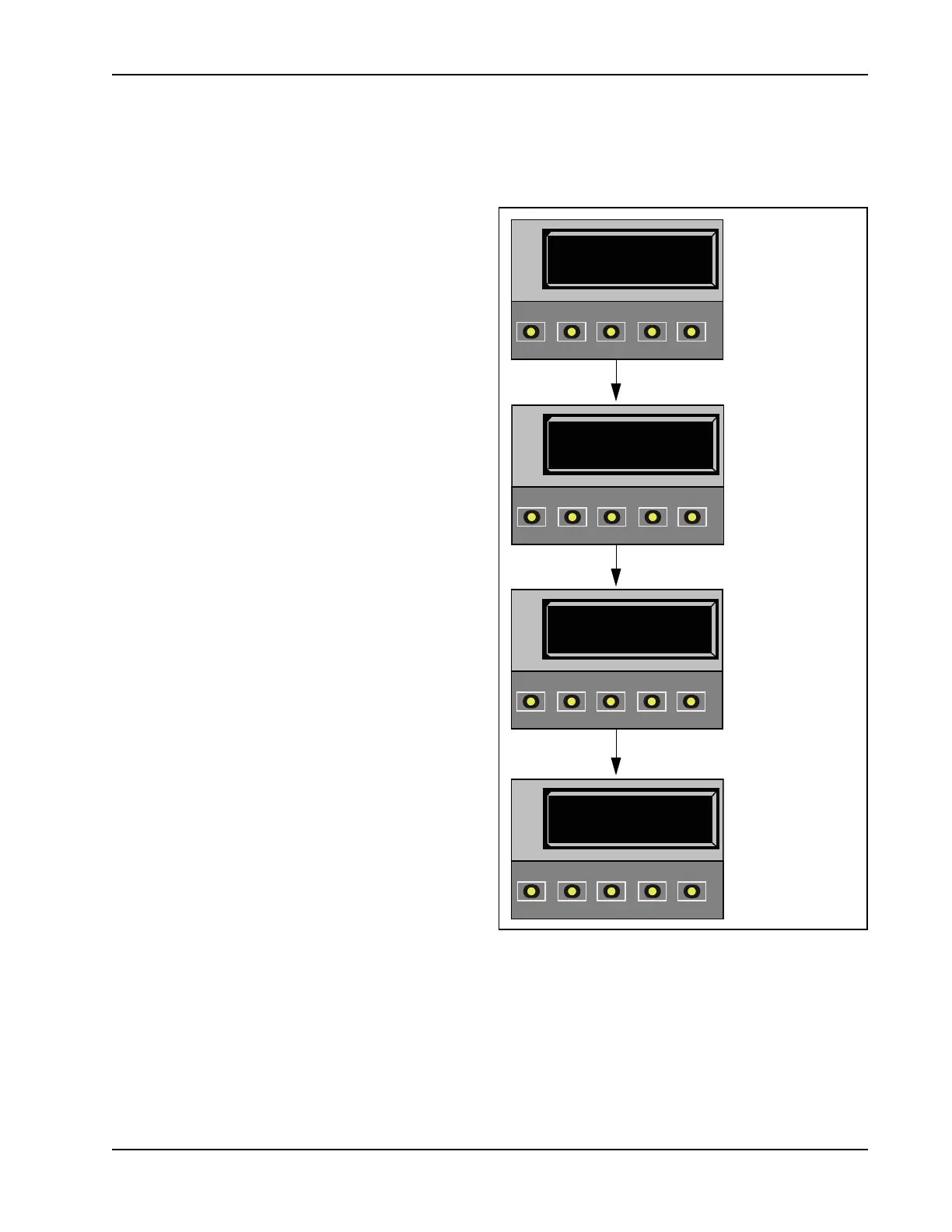

1. Start at a gate status
display.
2. To access the User
Menu, press MENU
twice.
3. To access the
Installer Menu,
simultaneously, press
OPEN and RESET
4. Use NEXT to
navigate to the menu
display. Change the
setting using the
SELECT and NEXT
buttons.
LL 0 (OFF)
LEARN LIMIT
OPEN
CLOSE
STOP
MENU
RESET
PREV
NEXT
SELECT
