Connecting the Battery and Turning DC Power ON
1. Connect the red battery wire to its
spade terminal. Figure 1-14.
2. Turn DC power ON. The USAGE
CLASS appears the first time
power is supplied to the operator.
3. To navigate within the Setup
Menu, use the SELECT, NEXT,
and PREV buttons as shown in
Table 1-1.

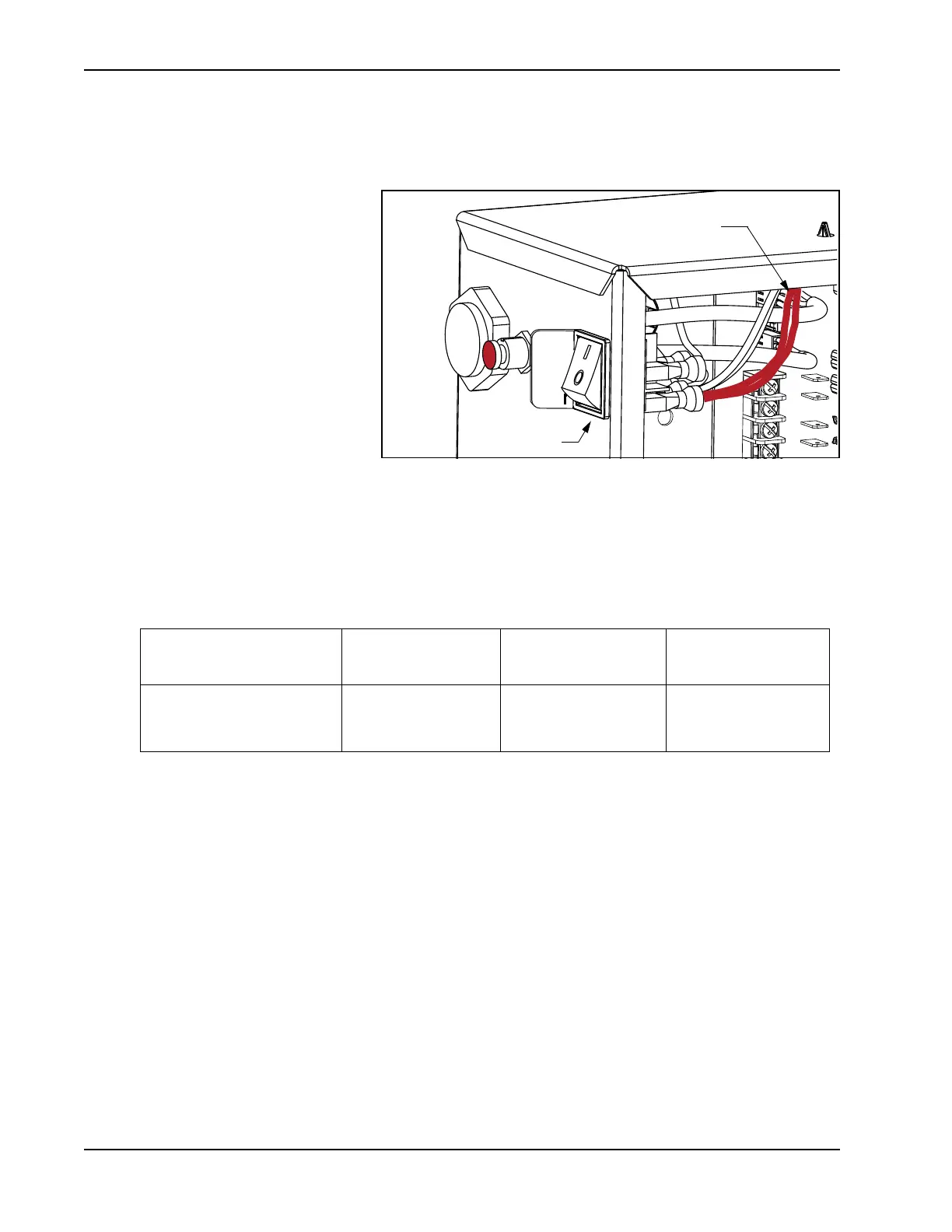

Figure 1-14.
Note:Programming the Setup Menu is usually a one-time occurrence unless factory defaults are reinstated
through the Installer Menu. The RESET and MENU buttons do not function during the initial
configuration of the Setup Menu.
Table 1-1. Menu Mode Navigational Buttons
Several sequential displays present information which must be configured before SlideSmart will function.
Once the configuration is complete, the information is retained even when a power loss occurs.
To edit the Menu
To navigate through
the SELECTIONS
To choose what is on
the display
To navigate between
menus
Press SELECT.
Two top characters blink.
Press NEXT.
Continue pressing NEXT
to view all selections.
Press SELECT.
blinking characters
become static.
Press NEXT or PREV.
Advance - press NEXT.
Previous - press PREV.
Connect red battery wire
Turn DC power ON
