Concrete Pad Mount
Revision D Installation 1-7
C
ONCRETE
P
AD
M
OUNT

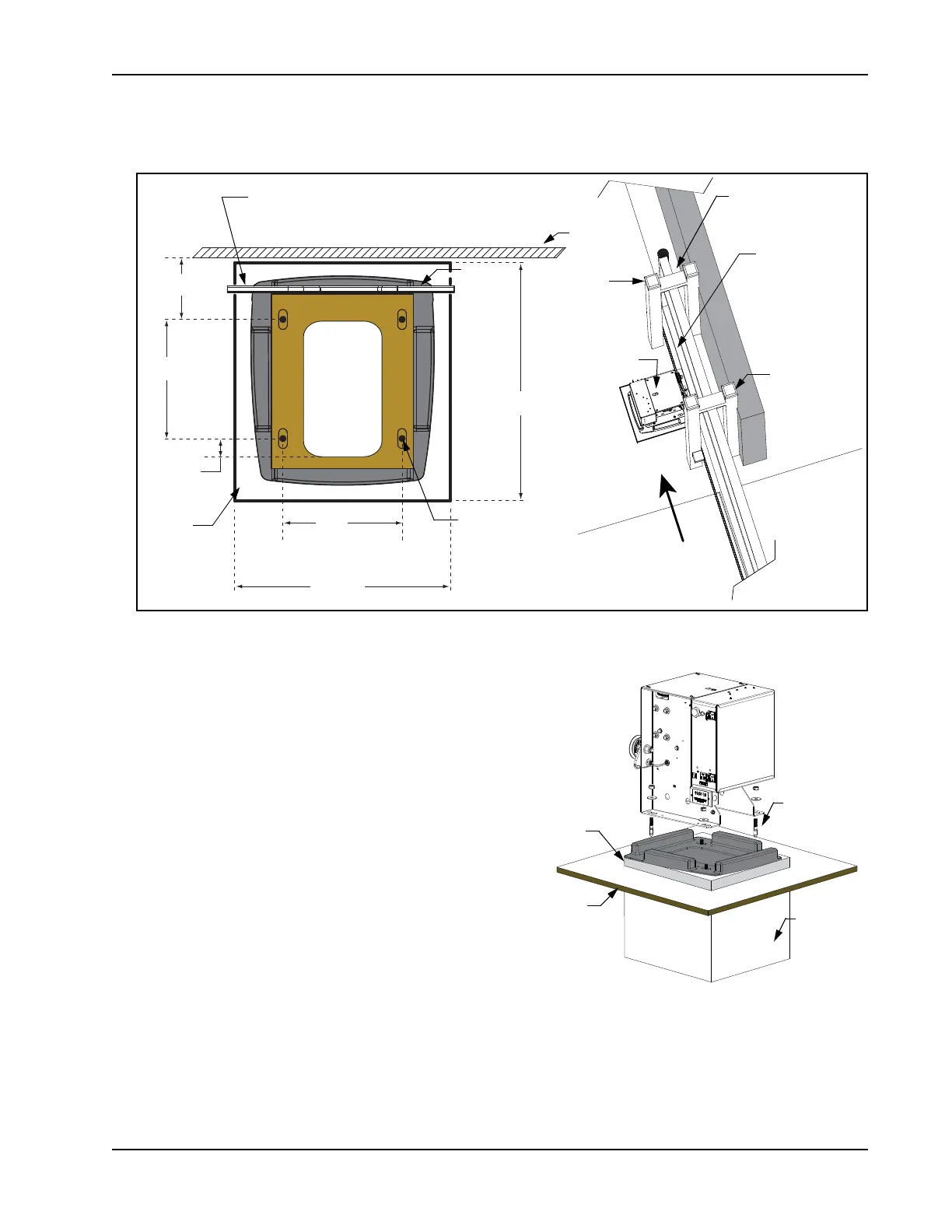

Figure 1-9.
Install the operator, by taking the following steps:
1. Place the operator on the pad to best suit the conduit as
shown in Figure 1-2. Use the operator as a template and
center it on the pad. The chain path must be parallel
with the gate.
2. Assess any limitations in the chain path such as gate
support posts. Adjust the operator’s location as required.
Mark the mounting locations based on gate, operator,
and chain requirements. Mark the drill point at the
center of the slot to allow for adjustments.
See Figure 1-4 and Figure 1-9.
3. Remove the operator from the concrete pad and drill the
holes for the concrete anchors. See
Tip
.
4. Mount the operator with four ½ - 13 x 3½-inch
concrete anchors as shown in Figure 1-10.
5. For additional types of mounting options, refer to the
Appendix.
19" minimum
(48.3cm)
Conduit
cut out
21"
(53.3cm)
10.5"
(26.7cm)
1.6"
(4.1cm)
6.4"
(16.3cm)
10.38"
(26.4cm)
Chain
#40 Roller
slotted holes (4x) for
concrete anchors:
½ - 13 x 3½"
Concrete
pad
Gate
Chain to Gate
Ideal distance =
Minimum distance = 2½" (5cm)
3¾" (9.5cm)
Chain resides
inside gate
support posts
Gate support
posts
Gate support
posts
Left hand gate
SlideSmart
parallel with the
gate.
Mark the center of
Direction of
gate movement
(shown in full CLOSE
position)
when opening
Figure 1-10.
½ - 13 x 3½"
anchors (4x)
concrete
Concrete
pad
Grade
level
Concrete
base
Tip: To keep pinpoint accuracy while drilling
the mounting holes in the concrete, use a
3/16-inch bit to pilot the holes and then move
to a ½-inch drill bit.
