Site Overview & Planning
1-4 SlideSmart Installation and Reference Manual Revision D
Front Installation
The most common and cost efficient type of installation is the front installation.
Secure Side
Public Side
P
ubl
i
c
S
i
de

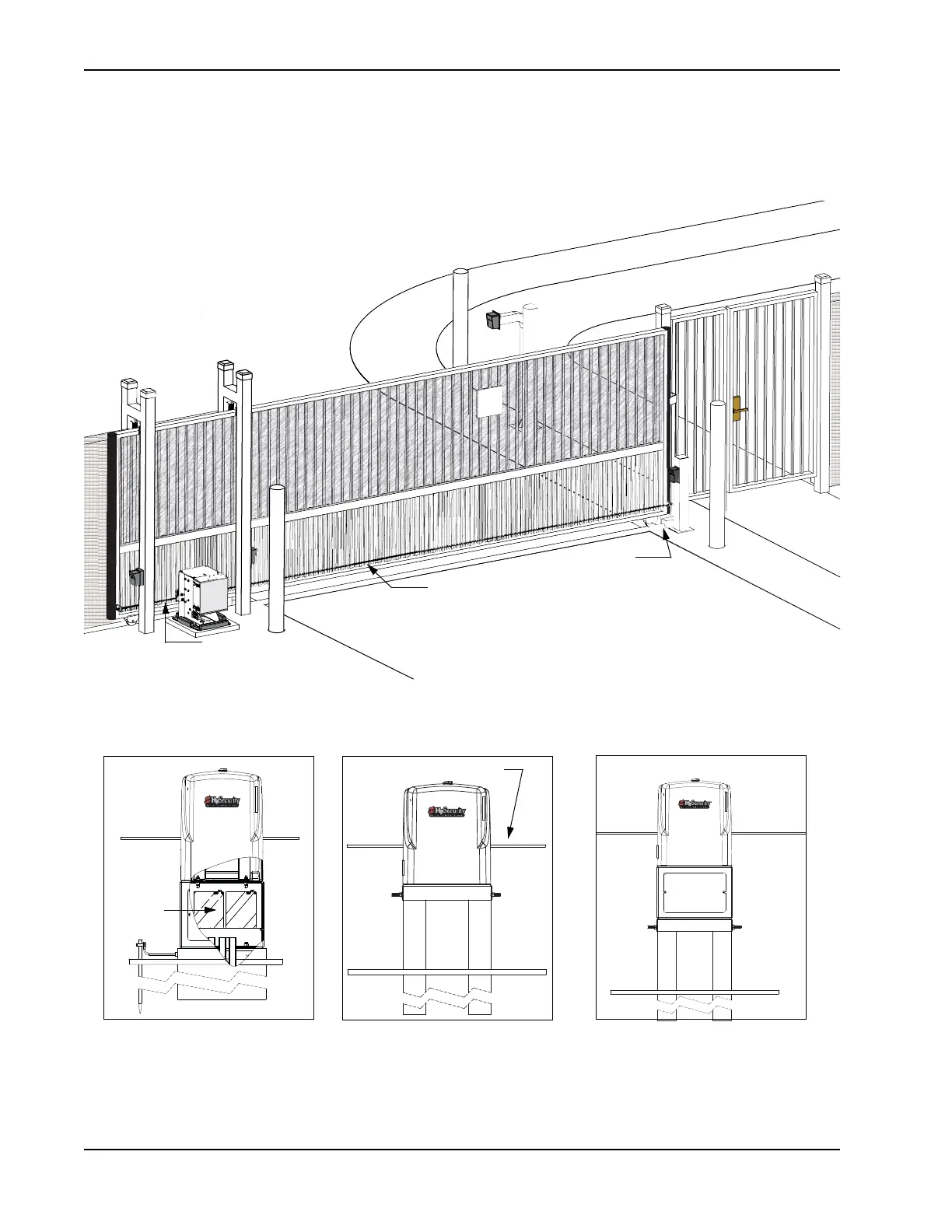

Note: Several different ways to mount the SlideSmart operator exist. A few are shown here.
For more detailed drawings, refer to the Installation Configurations in the Appendix.
Base extension mount Post mounted
Post mounted with base extension
Chain bracket (2x)
Chain
Physical stop (2x)
Figure 1-6.
Optional
50Ah
batteries
Chain
