HySecurity SlideSmart DCS 15 User Manual

Site Overview & Planning
Revision D Installation 1-1
Installation
Chapter 1
S ITE O VERVIEW & P LANNING

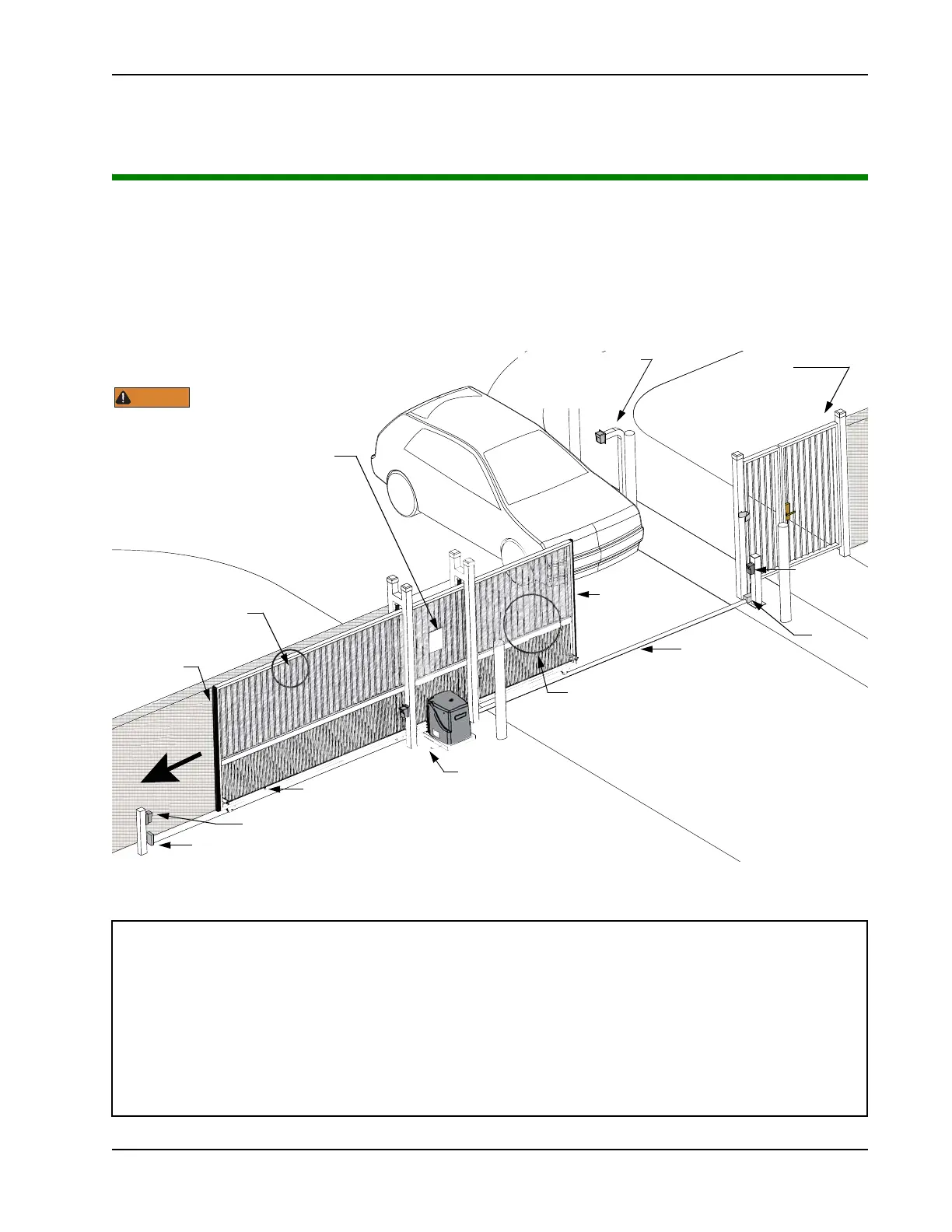

Figure 1-1.
SlideSmart DC 15 SlideSmart DC 10F
Duty cycle: continuous Duty cycle: continuous
Power, single phase: Switch selectable Power, single phase: Switch selectable
115 volts, 3 amps, 50/60 Hertz 115 volts, 3 amps, 50/60 Hertz
230 volts, 1.5 amps, 50/60 Hertz 230 volts, 1.5 amps, 50/60 Hertz
Motor:
½ hp Motor: ½ hp
Gate speed: 1ft/s Gate speed: 2ft/s
Gate weight: Maximum 1500lbs (675kg) Gate weight: Maximum 1000lbs (450kg)
Note:For SlideSmart DC Solar operators, refer to www.hysecurity.com
Secure Side
Public Side
Le Hand Gate
opening
nd Gate
g
Pedestrian gate
To comply with ASTM F2200, a screened wire mesh
Maximum 2 ¼ ” (57mm) width
between vertical bars
Target magnet on chain
Photo eye (entrapment protection shown in four locations)
Physical stop - weld stops at both ends of V track
Earth ground
Edge sensor
Edge sensor on
V track
Photo eye
Physical
stop
Make sure a separate walk-
through entrance is avail-
able and its pedestrian
path is clearly
designated.
Attach WARNING Signs
Be sure to place the
WARNING signs on both
sides of the gate. For your records, take a
photograph of the completed installaon site.
WARNING
Mount access control
beyond gate.
devices at least 6ft
Keypad or Card Reader
on trailing
edge
leading edge
extends to the top of the gate or to a minimum
height of 6 ft. (183cm) if a 2¼” (57mm) or larger
gap exists between the vertical bars.
