IntegratIng WItH seCurItY sYstems
HySecurity gate operators provide a serial interface (RS-485 connection) which allows remote access to one or
more operators. With software protocols provided by HySecurity, bi-directional status updates and control
commands are easily integrated with a central controller (computer or server), which becomes the master to the
connected operators. Several physical operators (1 to 99) can be polled from the central master command
station. Reset requests, gate control, gate status, and gate faults can be monitored and information can be
retrieved from the central command station.
SA 0 (OFF)
STC ADDRESS
OPEN
CLOSE
STOP
MENU
RESET
PREV
NEXT
SELECT

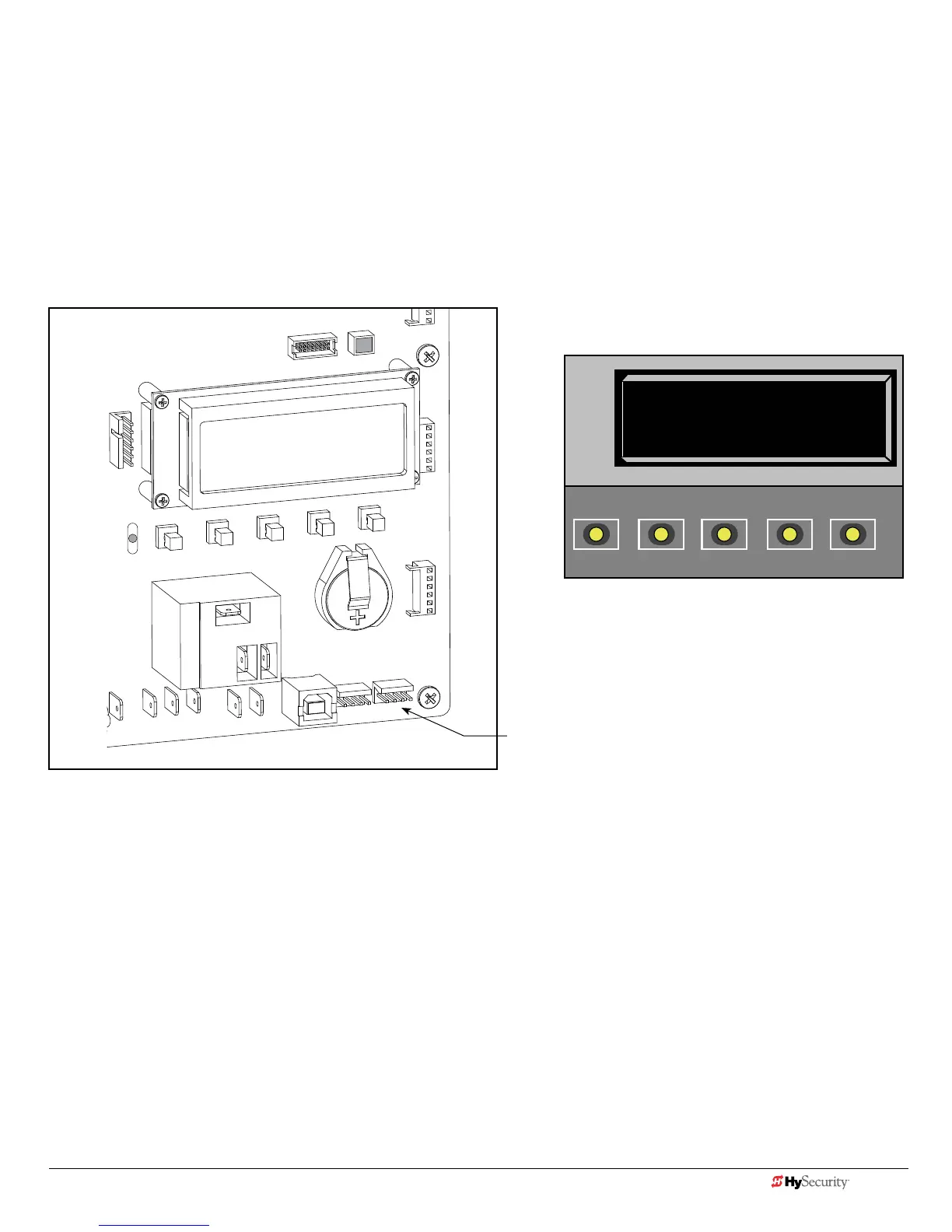

SA Display in the Installer Menu
When the physical connection is made and protocols are established, an SA (System Address) must be assigned
for each operator through its Installer Menu. For network communication, choosing a SA of 1 to 99 establishes
individual network polling addresses. An SA of zero means no network communication is desired.
If you plan to connect operators to a networked central master command station, contact HySecurity for software
protocols and additional information. Refer to “Contact Information” on page Safety-1.
IO
N
S
C
O
M
D
U
AL
G
A
T
E
C
O
M
B
A
U
S
E
R2
C
O
M
N
O
D
C
USER RELAY 1
Electro-mechanical
RS-485 serial interface
Smart DC Controller
To Next Page
