www.hysecurity.com Reference D0536 Rev. C 7-1
CAUTION
Wires are attached
to the physical stop
bracket. Do NOT sever
the wires or hang the
bracket by the wires.

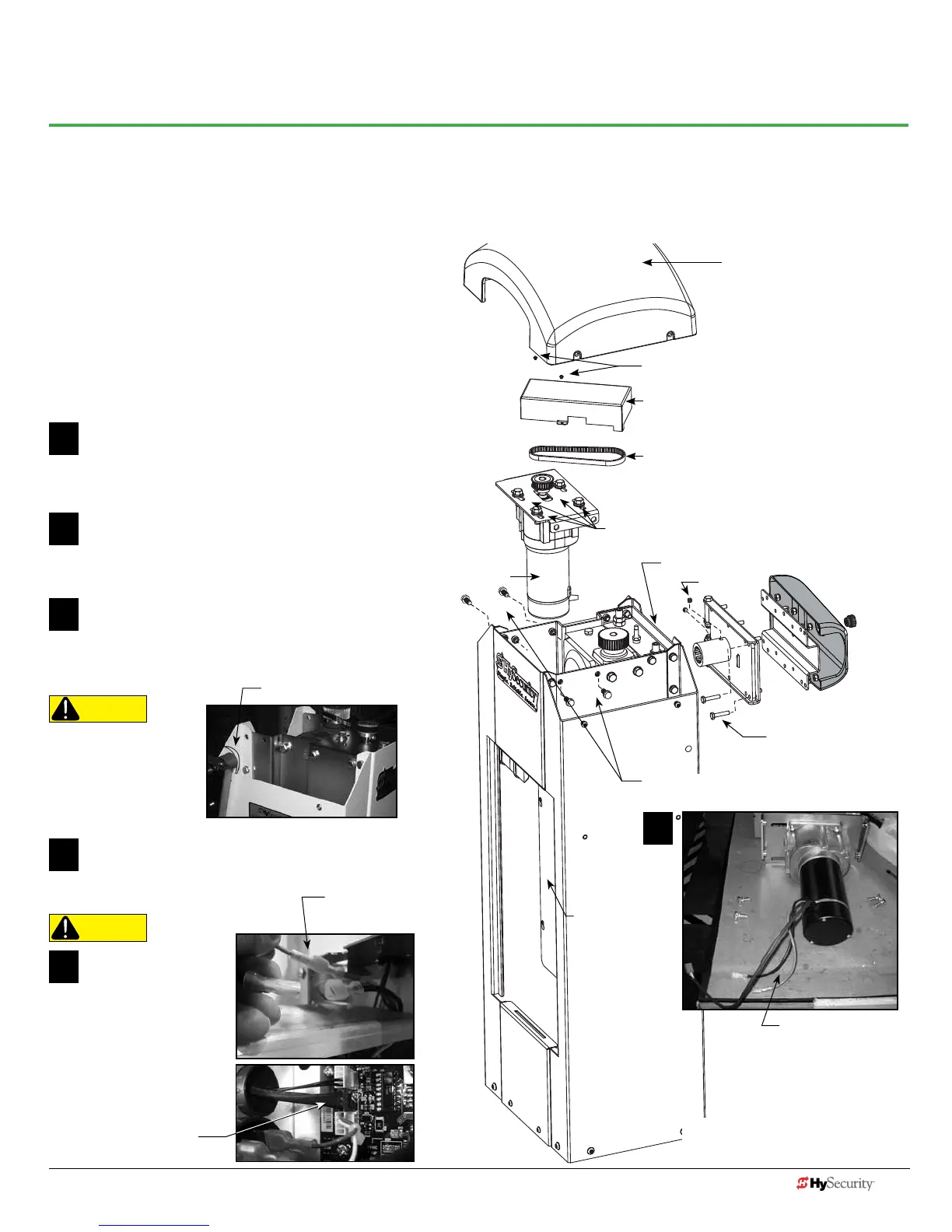

Using a 1/2-inch socket wrench, remove four
fasteners securing the physical stop bracket.
(Do NOT break the wire connections.) Hang the
bracket from the side of the chassis, as shown.
Remove the drive belt. Use a 9/16-inch socket
wrench to loosen (do NOT remove) the 4 bolts
securing the motor to the motor plate.
If the drive belt cover is in place, use a phillips
head screwdriver to remove two screws that
secure it to the motor plate. Set the drive belt
cover and fasteners aside.
CAUTION
Wires are attached
to the motor!
• Disconnect the 2 motor
wire leads from the
wire harness inside the
chassis.
• Disconnect the blue
connector wire from the
Smart DC Controller
and pull it out of the
control box.
Remove the front access panel. (Keys come with
the operator.)
Use a phillips head screwdriver to remove the
plastic cover from the control box.
Top cover
Drive belt cover
Drive belt
Loosen, DO NOT remove, 4 bolts
on motor cover plate
Physical stop bracket
Two phillips head screws
Control box:
Smart DC
Controller
access
Set screws
Nylon bolts for
breakaway bracket
Motor.
See
CAUTION
ContInued....
Turn the page for more information.
Disconnect the
2 motor wires.
Disconnect wire
leads before
removing the motor
Remove 4 bolts and lift the motor plate
assembly from the chassis. Set it aside.
Physical stop bracket
Reference
HandIng CHange
AllStrongArmParkDCoperatorsareshippedfromthefactoryinalefthandingcongurationunlessspecied
otherwise. If you need to change the StrongArmPark DC14 handing at the site, you will need to:
• Release spring tension
• Swap locations of the spring’s eyebolt and spacer
on the physical stop lever
• Retention the spring
NOTE: If changing the handing on StrongArmPark DC10,
follow steps 1 and 10.
To Next Page
